ELECTRICAL SYSTEM 16-41
Charging System

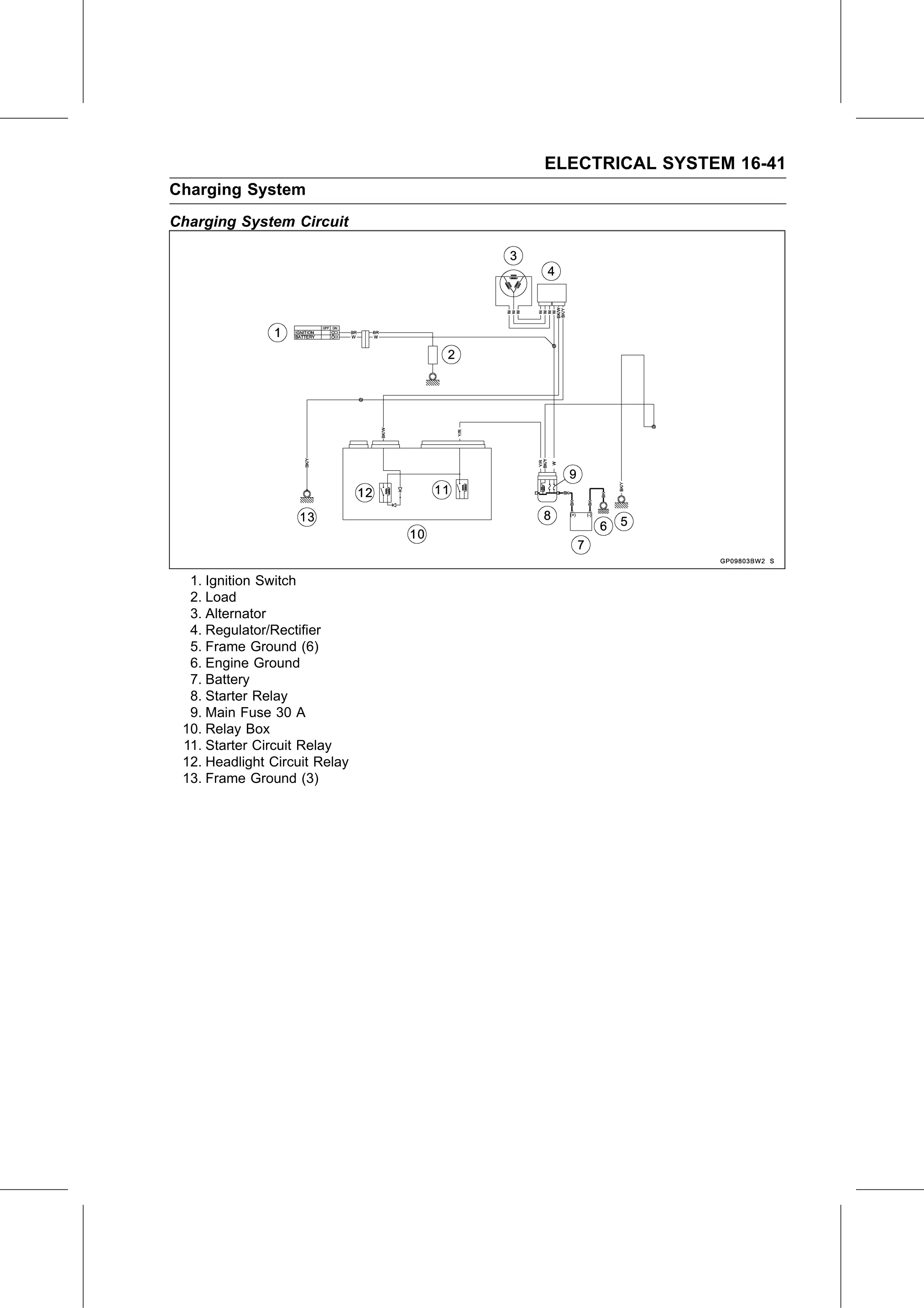

Charging System Circuit

  1. Ignition Switch
  2. Load
  3. Alternator
  4. Regulator/Rectifier
  5. Frame Ground (6)
  6. Engine Ground
  7. Battery
  8. Starter Relay
  9. Main Fuse 30 A
 10. Relay Box
 11. Starter Circuit Relay
 12. Headlight Circuit Relay
 13. Frame Ground (3)
