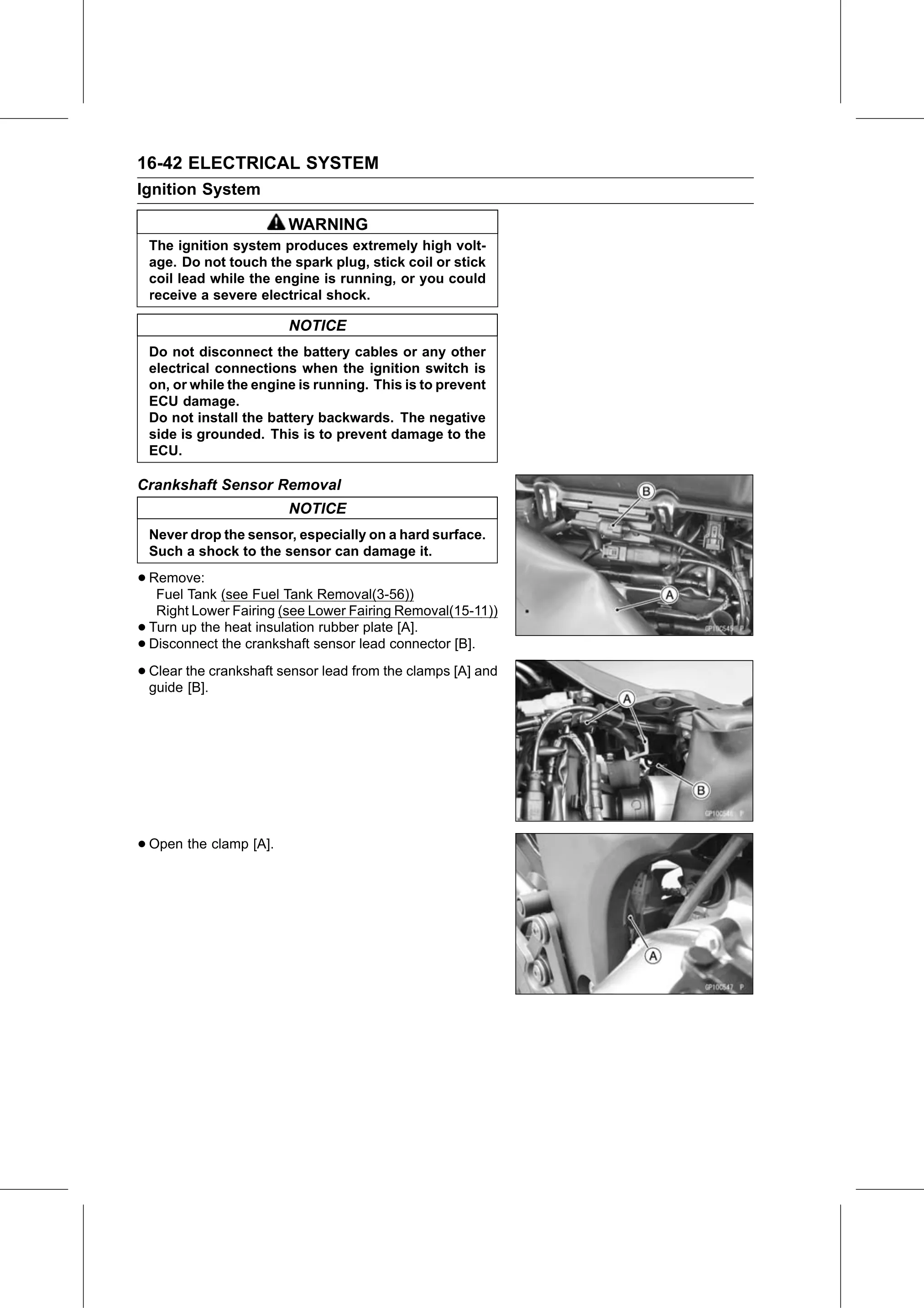

16-42 ELECTRICAL SYSTEM
Ignition System

                        WARNING
 The ignition system produces extremely high volt-
 age. Do not touch the spark plug, stick coil or stick
 coil lead while the engine is running, or you could
 receive a severe electrical shock.

                        NOTICE
 Do not disconnect the battery cables or any other
 electrical connections when the ignition switch is
 on, or while the engine is running. This is to prevent
 ECU damage.
 Do not install the battery backwards. The negative
 side is grounded. This is to prevent damage to the
 ECU.

Crankshaft Sensor Removal
                        NOTICE
 Never drop the sensor, especially on a hard surface.
 Such a shock to the sensor can damage it.

• Remove:
   Fuel Tank (see Fuel Tank Removal(3-56))
  Right Lower Fairing (see Lower Fairing Removal(15-11))
•Turn up the heat insulation rubber plate [A].
•Disconnect the crankshaft sensor lead connector [B].

• Clear the crankshaft sensor lead from the clamps [A] and
  guide [B].

• Open the clamp [A].
