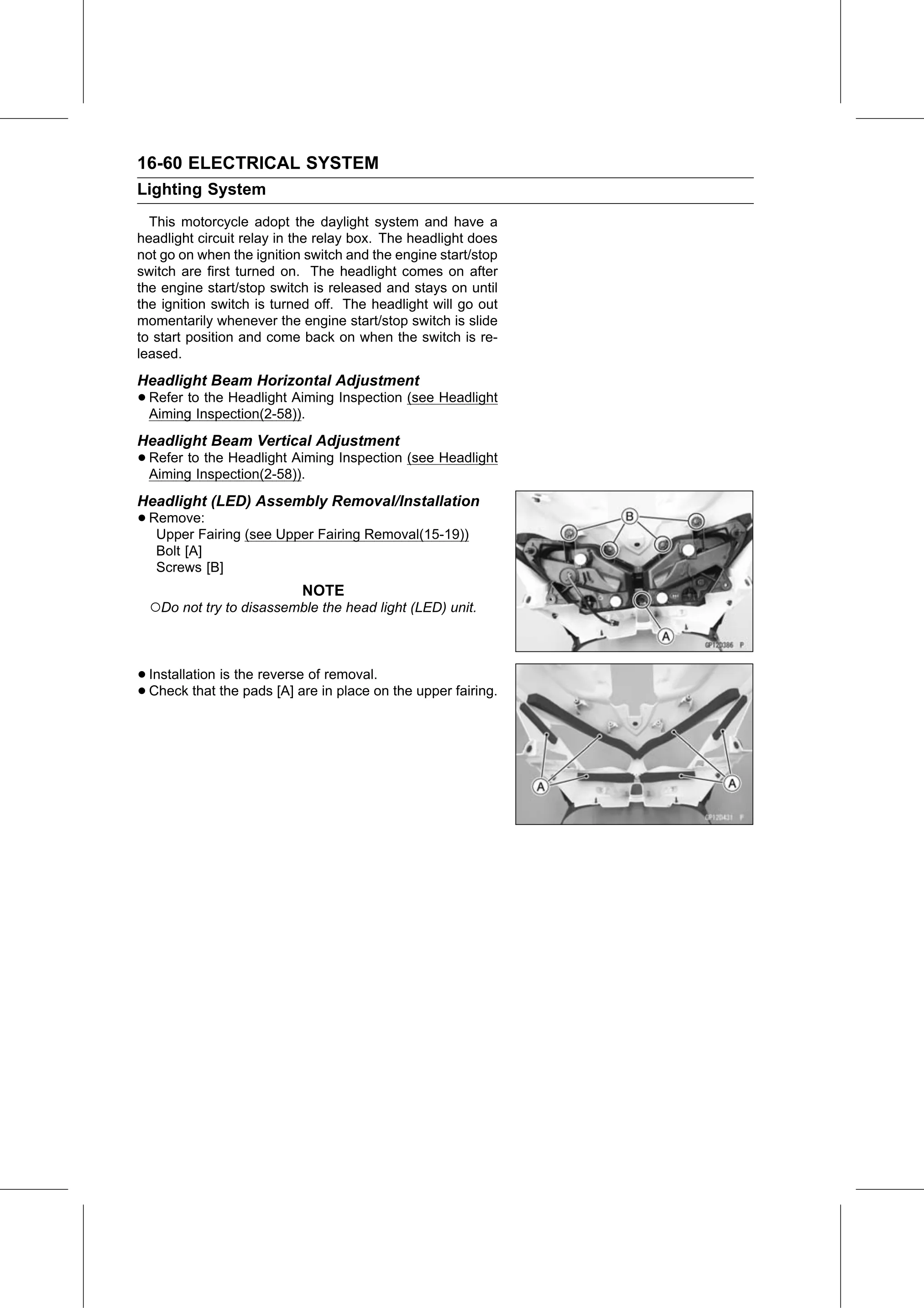

16-60 ELECTRICAL SYSTEM
Lighting System
  This motorcycle adopt the daylight system and have a
headlight circuit relay in the relay box. The headlight does
not go on when the ignition switch and the engine start/stop
switch are first turned on. The headlight comes on after
the engine start/stop switch is released and stays on until
the ignition switch is turned off. The headlight will go out
momentarily whenever the engine start/stop switch is slide
to start position and come back on when the switch is re-
leased.
Headlight Beam Horizontal Adjustment
• Refer to the Headlight Aiming Inspection (see Headlight
  Aiming Inspection(2-58)).
Headlight Beam Vertical Adjustment
• Refer to the Headlight Aiming Inspection (see Headlight
  Aiming Inspection(2-58)).
Headlight (LED) Assembly Removal/Installation
• Remove:
   Upper Fairing (see Upper Fairing Removal(15-19))
   Bolt [A]
   Screws [B]
                           NOTE
 ○Do not try to disassemble the head light (LED) unit.

• Installation is the reverse of removal.
• Check that the pads [A] are in place on the upper fairing.
