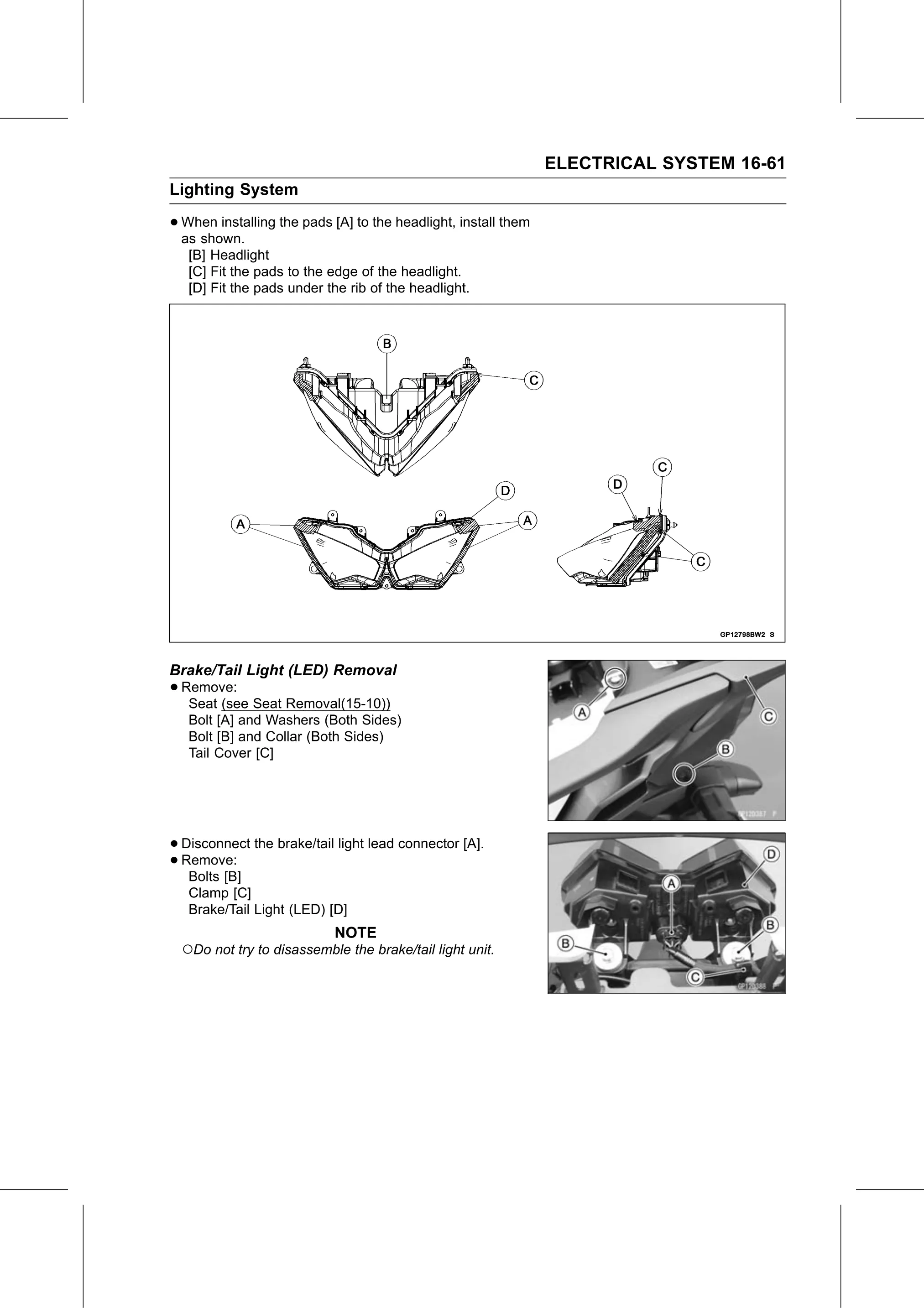

ELECTRICAL SYSTEM 16-61
Lighting System

• When  installing the pads [A] to the headlight, install them
  as shown.
   [B] Headlight
   [C] Fit the pads to the edge of the headlight.
   [D] Fit the pads under the rib of the headlight.

Brake/Tail Light (LED) Removal
• Remove:
   Seat (see Seat Removal(15-10))
   Bolt [A] and Washers (Both Sides)
   Bolt [B] and Collar (Both Sides)
   Tail Cover [C]

• Disconnect the brake/tail light lead connector [A].
• Bolts [B]
  Remove:

   Clamp [C]
   Brake/Tail Light (LED) [D]
                            NOTE
  ○Do not try to disassemble the brake/tail light unit.
