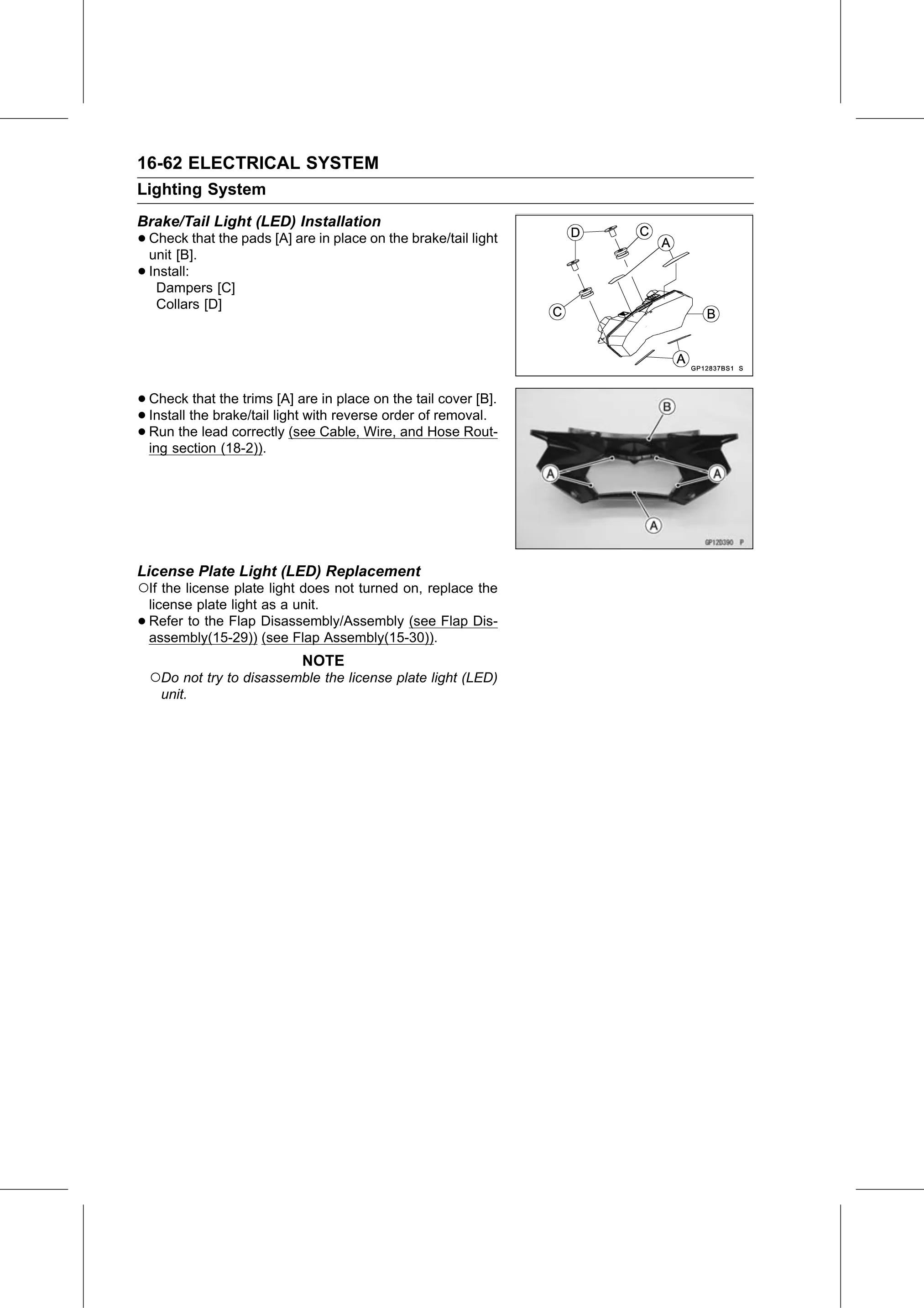

16-62 ELECTRICAL SYSTEM
Lighting System
Brake/Tail Light (LED) Installation
• Check
  unit [B].
           that the pads [A] are in place on the brake/tail light

• Install:
   Dampers [C]
     Collars [D]

• Check    that the trims [A] are in place on the tail cover [B].
• Run the lead
  Install the brake/tail light with reverse order of removal.
• ing section (18-2)).
                  correctly (see Cable, Wire, and Hose Rout-

License Plate Light (LED) Replacement
○If the license plate light does not turned on, replace the
    license plate light as a unit.
•   Refer to the Flap Disassembly/Assembly (see Flap Dis-
    assembly(15-29)) (see Flap Assembly(15-30)).
                             NOTE
    ○Do not try to disassemble the license plate light (LED)
     unit.
