16-66 ELECTRICAL SYSTEM
Lighting System

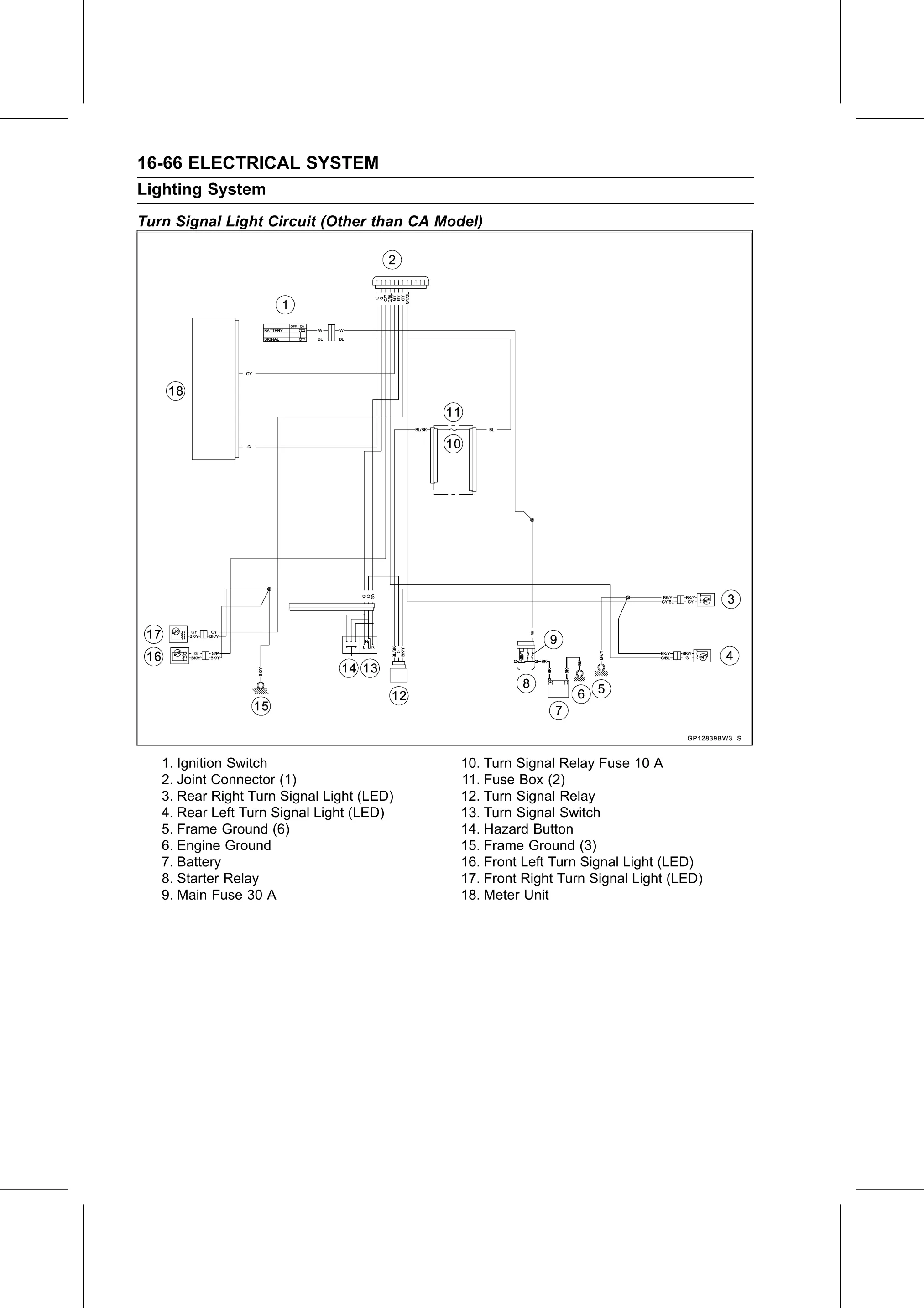

Turn Signal Light Circuit (Other than CA Model)

   1. Ignition Switch                       10. Turn Signal Relay Fuse 10 A
   2. Joint Connector (1)                   11. Fuse Box (2)
   3. Rear Right Turn Signal Light (LED)    12. Turn Signal Relay
   4. Rear Left Turn Signal Light (LED)     13. Turn Signal Switch
   5. Frame Ground (6)                      14. Hazard Button
   6. Engine Ground                         15. Frame Ground (3)
   7. Battery                               16. Front Left Turn Signal Light (LED)
   8. Starter Relay                         17. Front Right Turn Signal Light (LED)
   9. Main Fuse 30 A                        18. Meter Unit
