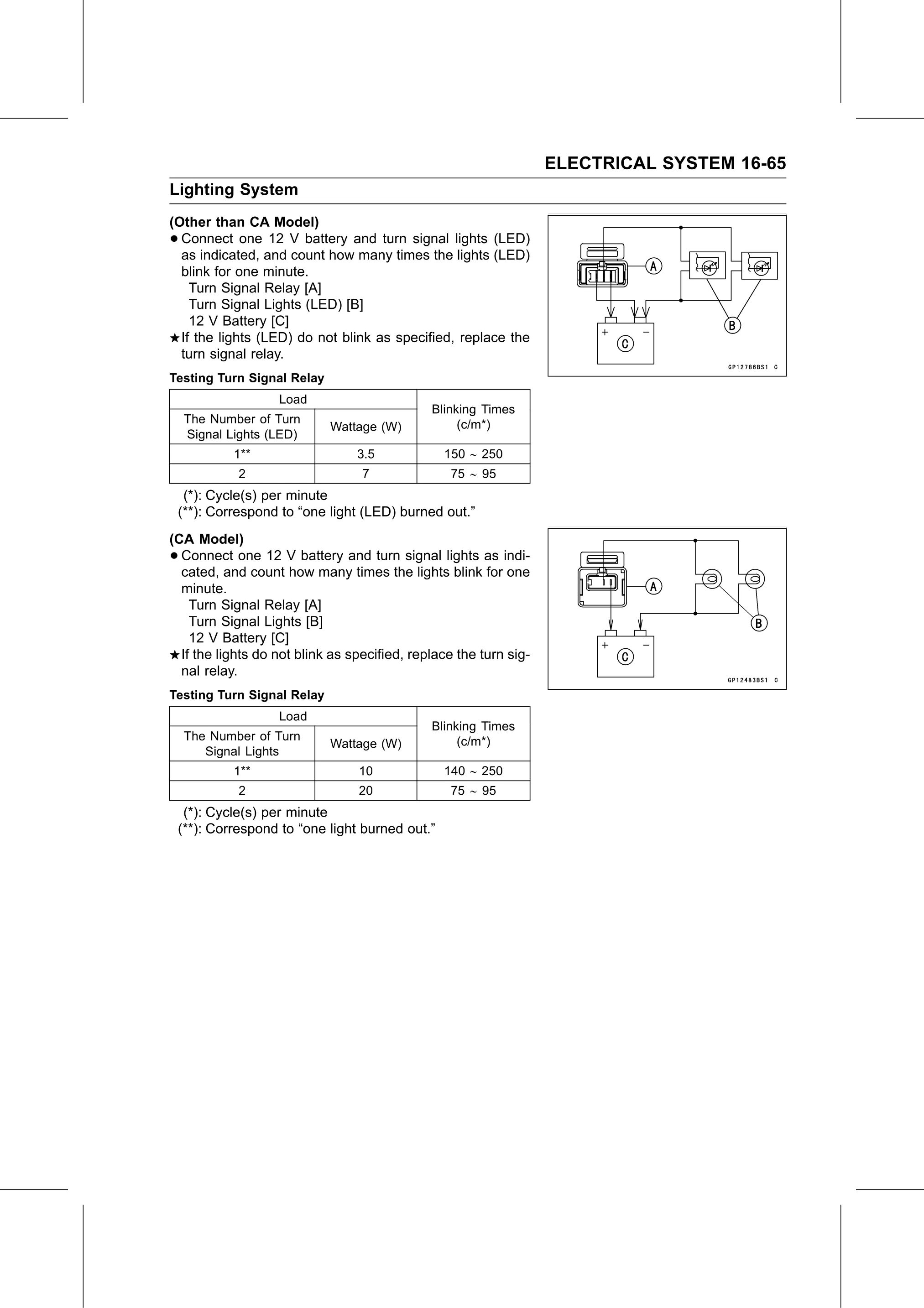

ELECTRICAL SYSTEM 16-65
Lighting System
(Other than CA Model)
• Connect one 12 V battery and turn signal lights (LED)
  as indicated, and count how many times the lights (LED)
  blink for one minute.
    Turn Signal Relay [A]
    Turn Signal Lights (LED) [B]
    12 V Battery [C]
  If the lights (LED) do not blink as specified, replace the
  turn signal relay.
Testing Turn Signal Relay
                   Load
                                              Blinking Times
    The Number of Turn                             (c/m*)
                            Wattage (W)
    Signal Lights (LED)
            1**                  3.5            150  250
            2                     7              75  95
  (*): Cycle(s) per minute
 (**): Correspond to “one light (LED) burned out.”
(CA Model)
• Connect one 12 V battery and turn signal lights as indi-
  cated, and count how many times the lights blink for one
  minute.
    Turn Signal Relay [A]
    Turn Signal Lights [B]
    12 V Battery [C]
  If the lights do not blink as specified, replace the turn sig-
  nal relay.
Testing Turn Signal Relay
                   Load
                                              Blinking Times
    The Number of Turn                             (c/m*)
                            Wattage (W)
       Signal Lights
            1**                  10             140  250
            2                    20              75  95
  (*): Cycle(s) per minute
 (**): Correspond to “one light burned out.”
