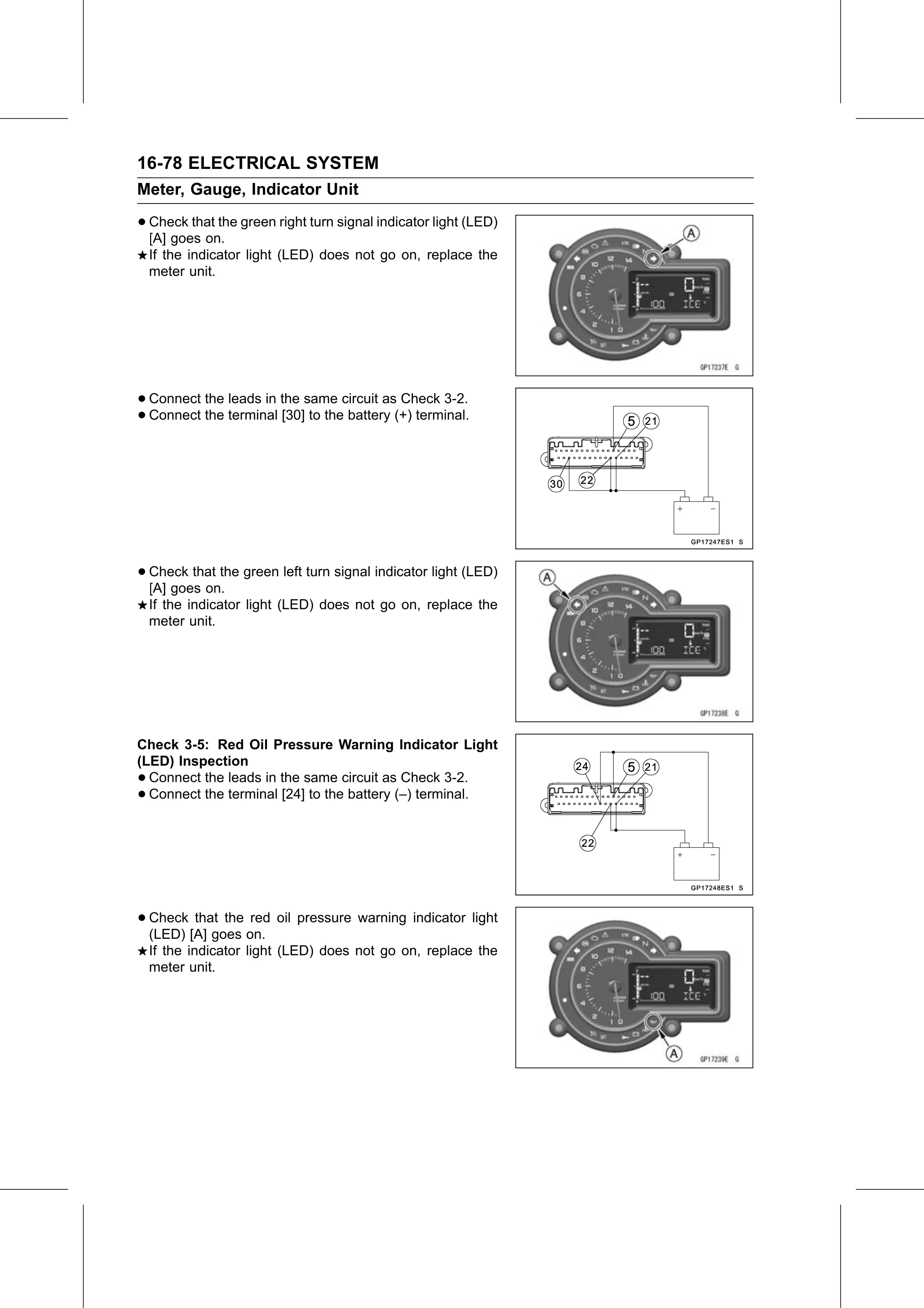

16-78 ELECTRICAL SYSTEM
Meter, Gauge, Indicator Unit

• Check  that the green right turn signal indicator light (LED)
  [A] goes on.
    If the indicator light (LED) does not go on, replace the
    meter unit.

• Connect the leads in the same circuit as Check 3-2.
• Connect the terminal [30] to the battery (+) terminal.

• Check  that the green left turn signal indicator light (LED)
  [A] goes on.
    If the indicator light (LED) does not go on, replace the
    meter unit.

Check 3-5: Red Oil Pressure Warning Indicator Light
(LED) Inspection
• Connect the leads in the same circuit as Check 3-2.
• Connect the terminal [24] to the battery (–) terminal.

• Check  that the red oil pressure warning indicator light
  (LED) [A] goes on.
    If the indicator light (LED) does not go on, replace the
    meter unit.
