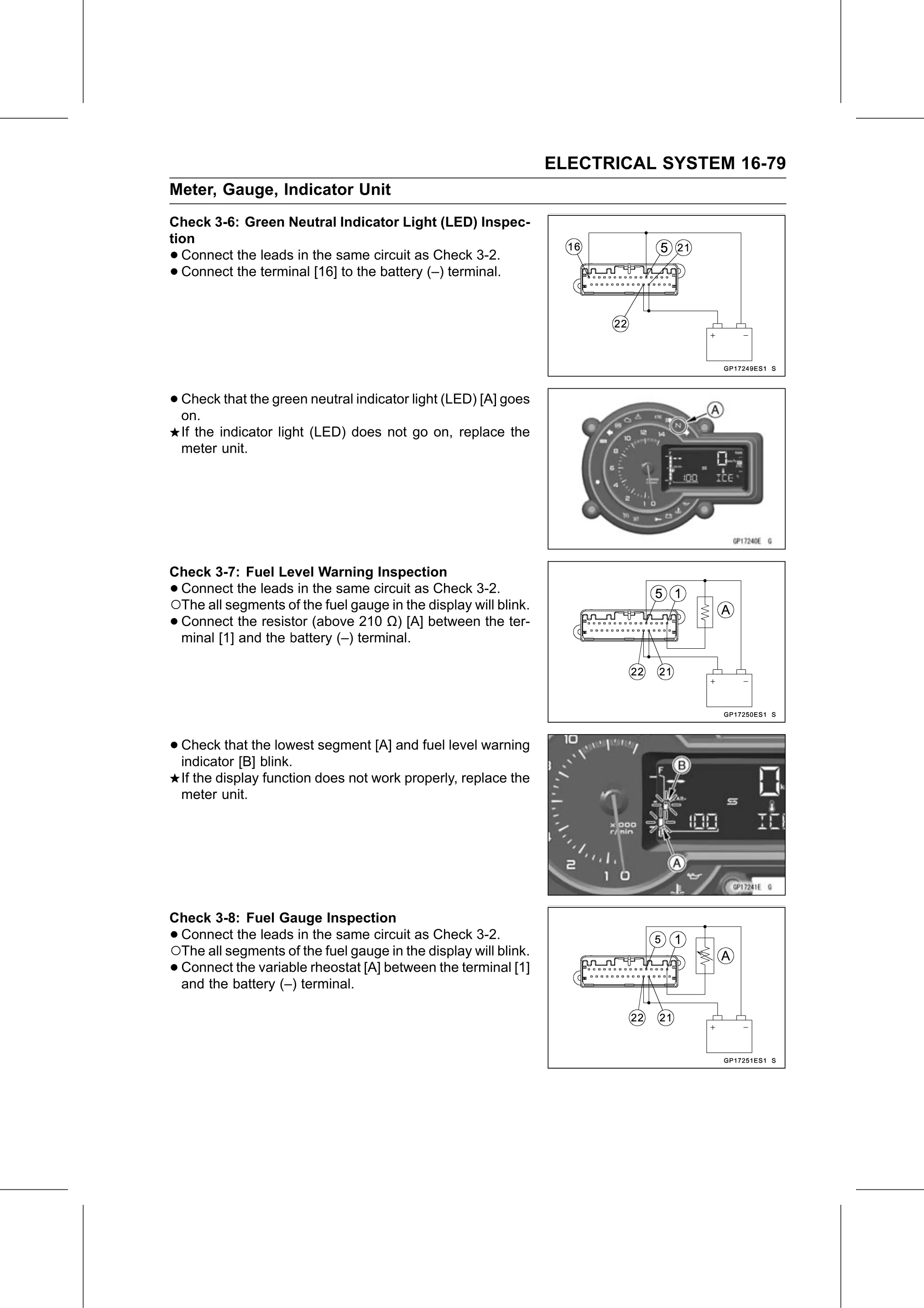

ELECTRICAL SYSTEM 16-79
Meter, Gauge, Indicator Unit
Check 3-6: Green Neutral Indicator Light (LED) Inspec-
tion
• Connect the leads in the same circuit as Check 3-2.
• Connect the terminal [16] to the battery (–) terminal.

• Check
  on.
        that the green neutral indicator light (LED) [A] goes

    If the indicator light (LED) does not go on, replace the
    meter unit.

Check 3-7: Fuel Level Warning Inspection
•Connect the leads in the same circuit as Check 3-2.
○The all segments of the fuel gauge in the display will blink.
•Connect the resistor (above 210 Ω) [A] between the ter-
 minal [1] and the battery (–) terminal.

• Check  that the lowest segment [A] and fuel level warning
  indicator [B] blink.
    If the display function does not work properly, replace the
    meter unit.

Check 3-8: Fuel Gauge Inspection
•Connect the leads in the same circuit as Check 3-2.
○The all segments of the fuel gauge in the display will blink.
•Connect the variable rheostat [A] between the terminal [1]
 and the battery (–) terminal.
