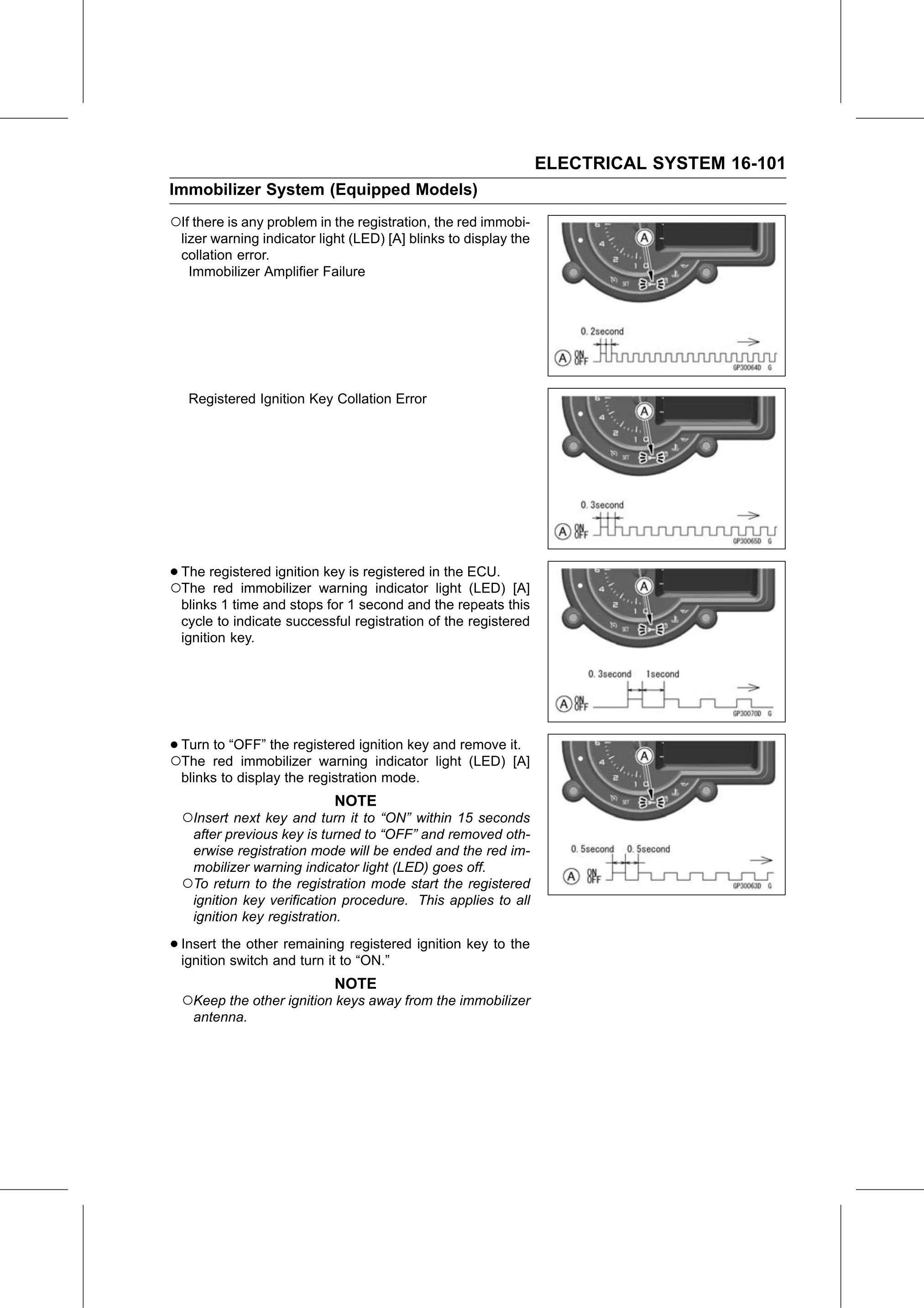

ELECTRICAL SYSTEM 16-101
Immobilizer System (Equipped Models)
○If there is any problem in the registration, the red immobi-
  lizer warning indicator light (LED) [A] blinks to display the
  collation error.
    Immobilizer Amplifier Failure

   Registered Ignition Key Collation Error

•○The registered ignition key is registered in the ECU.
  The red immobilizer warning indicator light (LED) [A]
  blinks 1 time and stops for 1 second and the repeats this
  cycle to indicate successful registration of the registered
  ignition key.

•○Turn to “OFF” the registered ignition key and remove it.
  The red immobilizer warning indicator light (LED) [A]
  blinks to display the registration mode.
                            NOTE
  ○Insert next key and turn it to “ON” within 15 seconds
   after previous key is turned to “OFF” and removed oth-
   erwise registration mode will be ended and the red im-
   mobilizer warning indicator light (LED) goes off.
  ○To return to the registration mode start the registered
   ignition key verification procedure. This applies to all
   ignition key registration.

• Insert the other remaining registered ignition key to the
  ignition switch and turn it to “ON.”
                            NOTE
  ○Keep the other ignition keys away from the immobilizer
    antenna.
