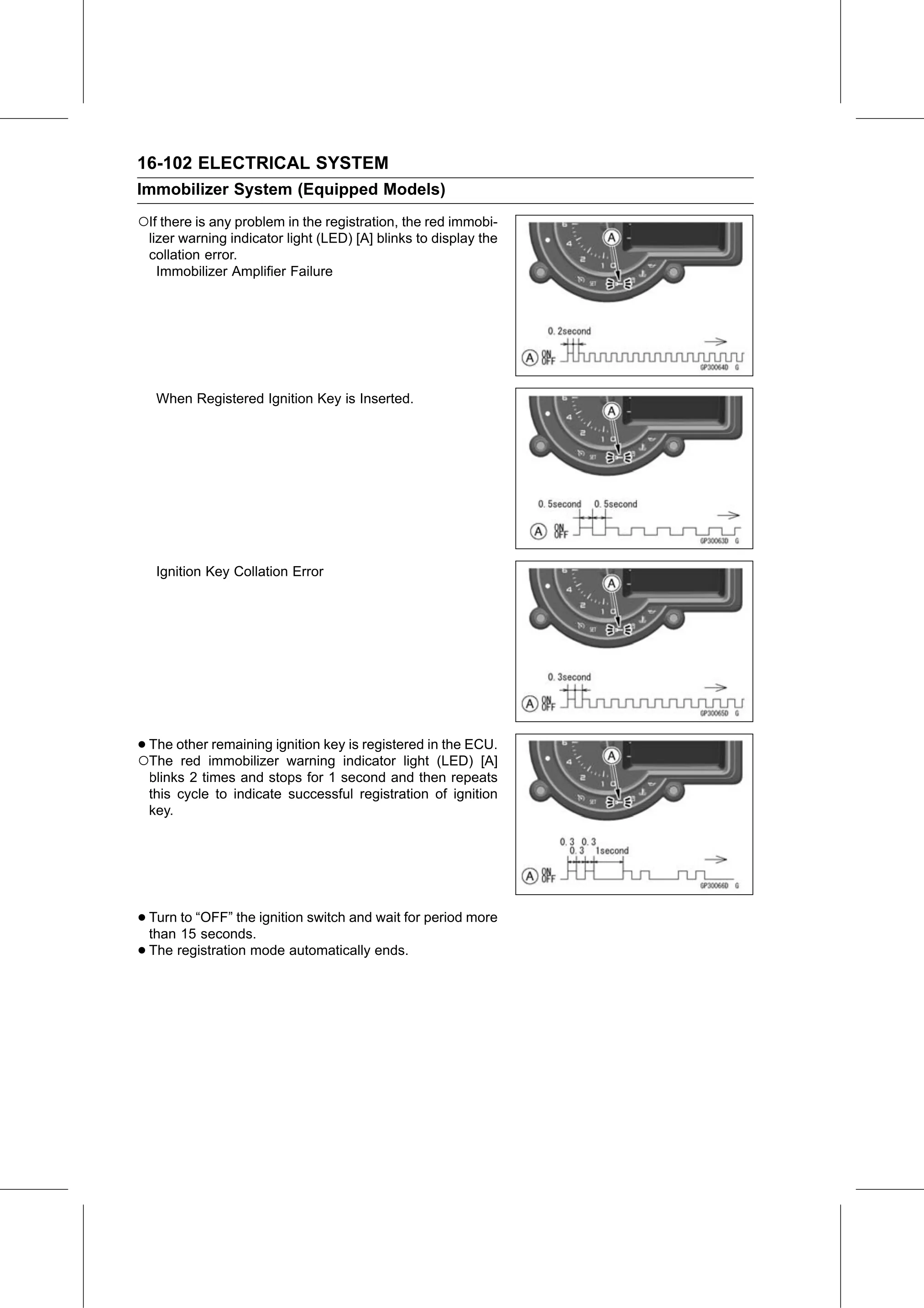

16-102 ELECTRICAL SYSTEM
Immobilizer System (Equipped Models)
○If there is any problem in the registration, the red immobi-
  lizer warning indicator light (LED) [A] blinks to display the
  collation error.
    Immobilizer Amplifier Failure

   When Registered Ignition Key is Inserted.

   Ignition Key Collation Error

•○The other remaining ignition key is registered in the ECU.
  The red immobilizer warning indicator light (LED) [A]
  blinks 2 times and stops for 1 second and then repeats
  this cycle to indicate successful registration of ignition
  key.

• Turn to “OFF” the ignition switch and wait for period more
  than 15 seconds.
• The registration mode automatically ends.
