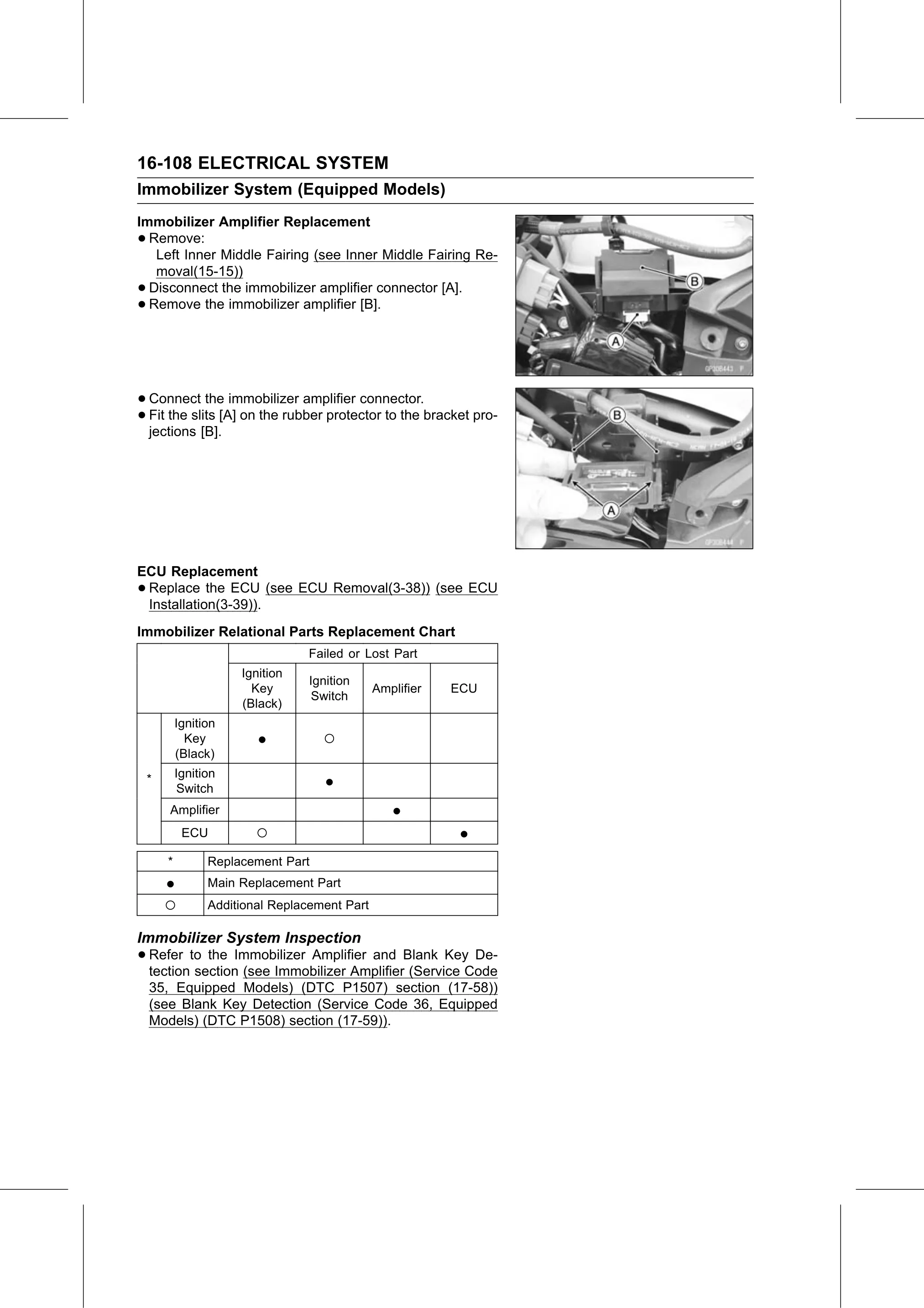

16-108 ELECTRICAL SYSTEM
Immobilizer System (Equipped Models)
Immobilizer Amplifier Replacement
• Remove:
   Left Inner Middle Fairing (see Inner Middle Fairing Re-
   moval(15-15))
• Disconnect the immobilizer amplifier connector [A].
• Remove the immobilizer amplifier [B].

• Connect    the immobilizer amplifier connector.
• jections [B].[A] on the rubber protector to the bracket pro-
  Fit the slits

ECU Replacement
•Replace the ECU (see ECU Removal(3-38)) (see ECU
 Installation(3-39)).
Immobilizer Relational Parts Replacement Chart
                                  Failed or Lost Part
                       Ignition
                                  Ignition
                         Key                    Amplifier   ECU
                                  Switch
                       (Black)
            Ignition
              Key
            (Black)
                          •          ○
            Ignition
    *
            Switch                   •
        Amplifier
                                                   •
             ECU          ○                                 •
        *         Replacement Part

        •         Main Replacement Part
        ○         Additional Replacement Part

Immobilizer System Inspection
• Refer  to the Immobilizer Amplifier and Blank Key De-
  tection section (see Immobilizer Amplifier (Service Code
    35, Equipped Models) (DTC P1507) section (17-58))
    (see Blank Key Detection (Service Code 36, Equipped
    Models) (DTC P1508) section (17-59)).
