ELECTRICAL SYSTEM 16-109
Immobilizer System (Equipped Models)

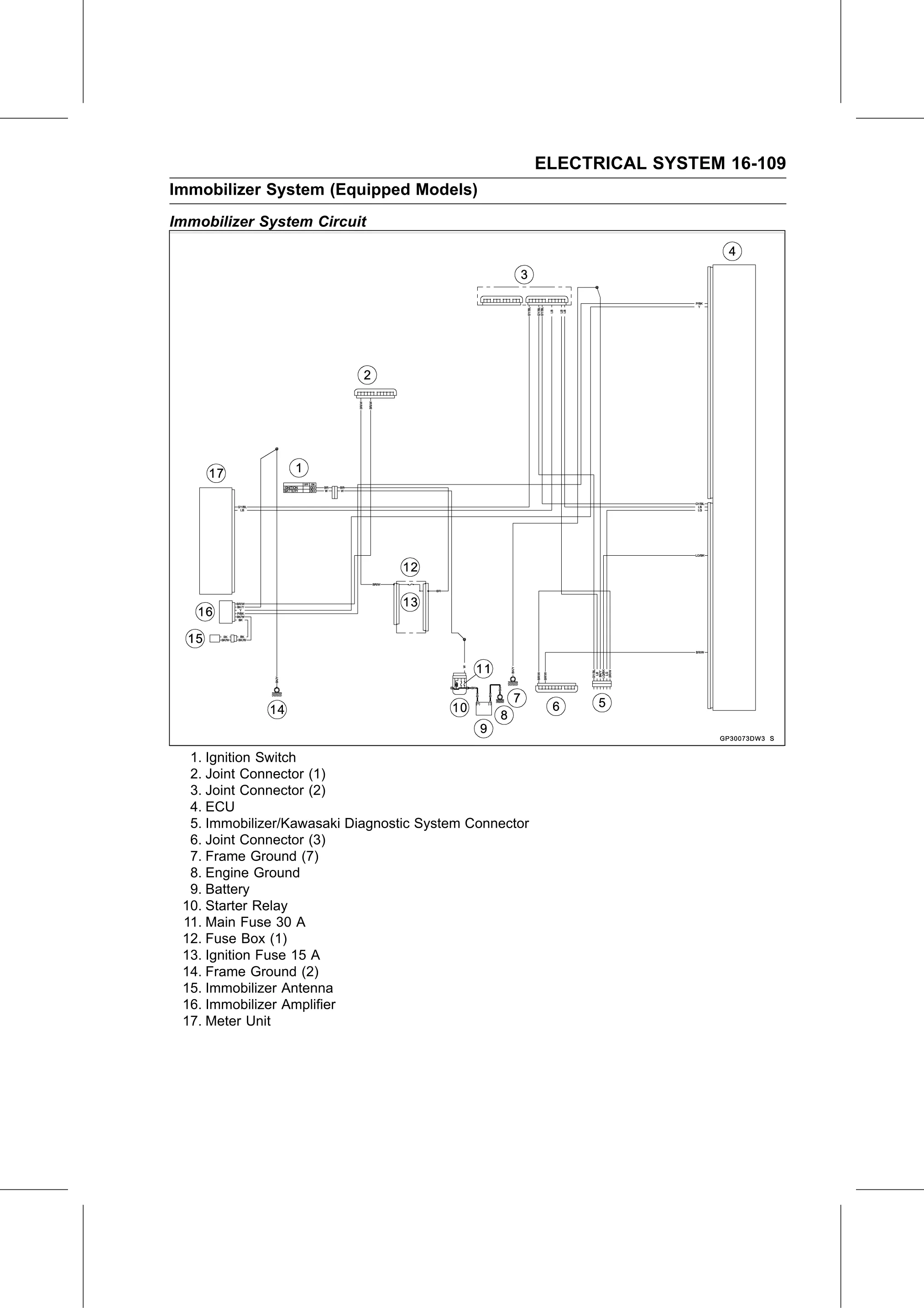

Immobilizer System Circuit

  1. Ignition Switch
  2. Joint Connector (1)
  3. Joint Connector (2)
  4. ECU
  5. Immobilizer/Kawasaki Diagnostic System Connector
  6. Joint Connector (3)
  7. Frame Ground (7)
  8. Engine Ground
  9. Battery
 10. Starter Relay
 11. Main Fuse 30 A
 12. Fuse Box (1)
 13. Ignition Fuse 15 A
 14. Frame Ground (2)
 15. Immobilizer Antenna
 16. Immobilizer Amplifier
 17. Meter Unit
