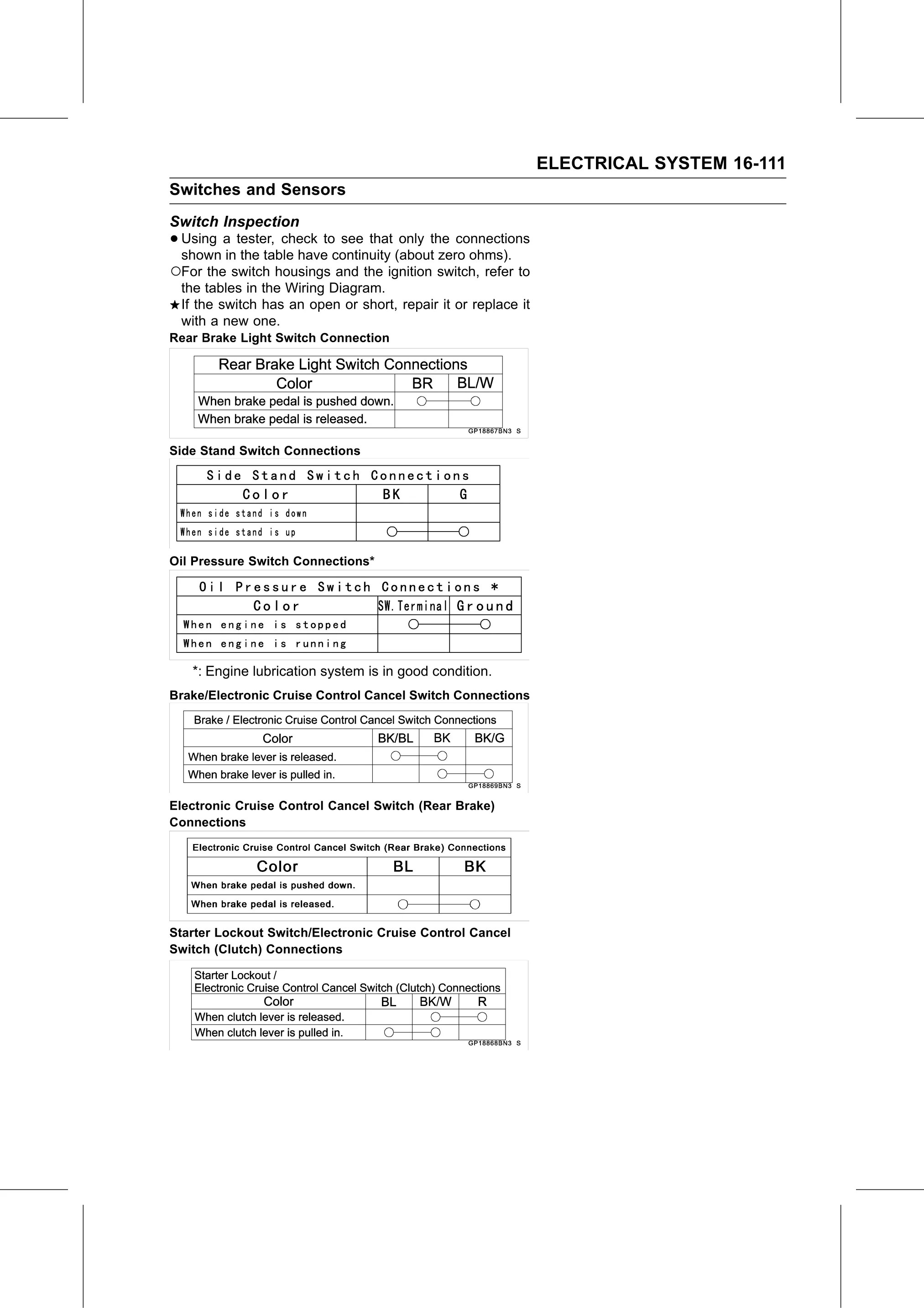

ELECTRICAL SYSTEM 16-111
Switches and Sensors
Switch Inspection
• Using a tester, check to see that only the connections
  shown in the table have continuity (about zero ohms).
○For the switch housings and the ignition switch, refer to
 the tables in the Wiring Diagram.
 If the switch has an open or short, repair it or replace it
 with a new one.
Rear Brake Light Switch Connection

Side Stand Switch Connections

Oil Pressure Switch Connections*

   *: Engine lubrication system is in good condition.
Brake/Electronic Cruise Control Cancel Switch Connections

Electronic Cruise Control Cancel Switch (Rear Brake)
Connections

Starter Lockout Switch/Electronic Cruise Control Cancel
Switch (Clutch) Connections
