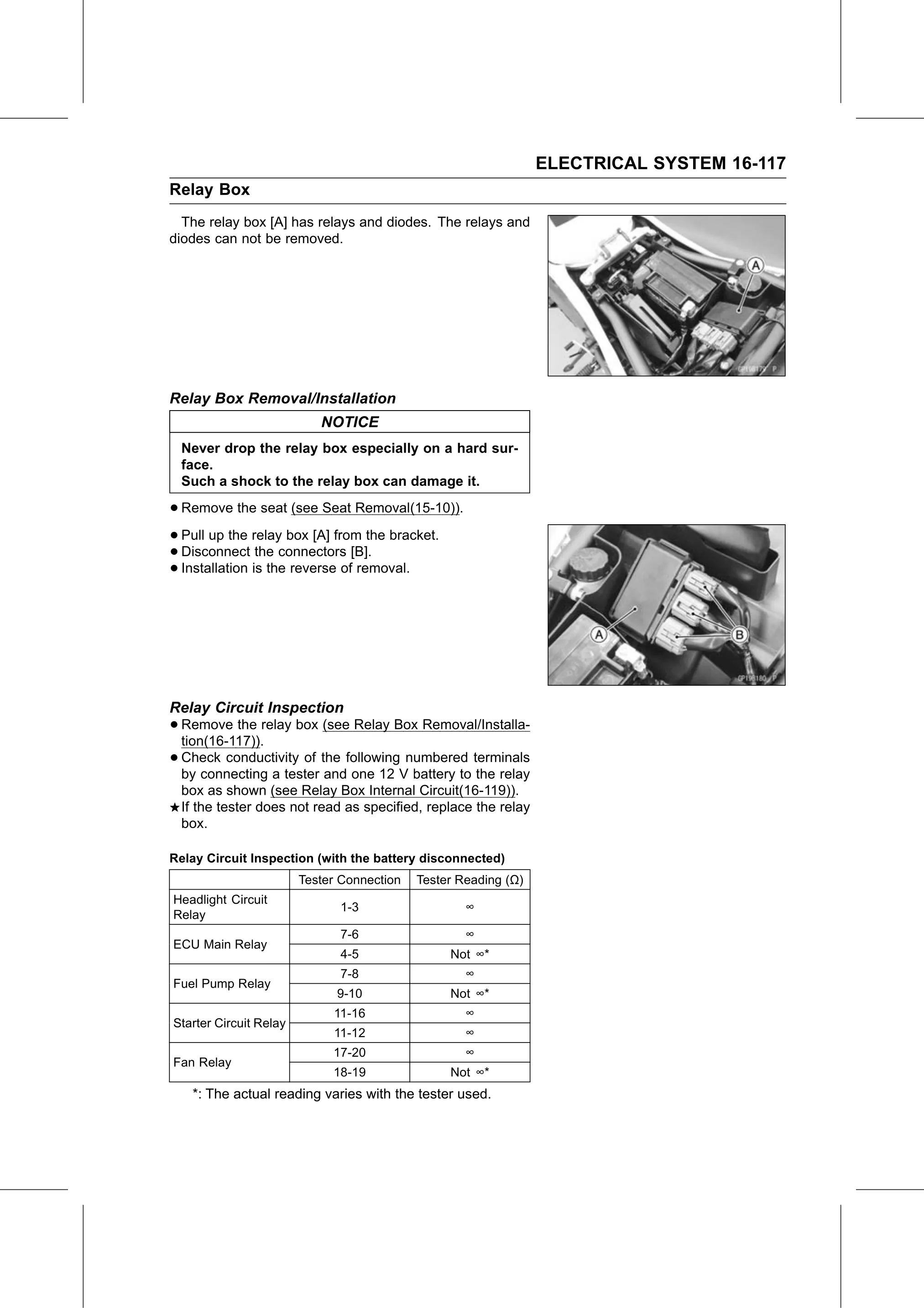

ELECTRICAL SYSTEM 16-117
Relay Box
  The relay box [A] has relays and diodes. The relays and
diodes can not be removed.

Relay Box Removal/Installation
                           NOTICE
 Never drop the relay box especially on a hard sur-
 face.
 Such a shock to the relay box can damage it.

• Remove the seat (see Seat Removal(15-10)).
• Pull up the relay box [A] from the bracket.
• Installation isthetheconnectors
  Disconnect                       [B].
•                        reverse of removal.

Relay Circuit Inspection
• Remove   the relay box (see Relay Box Removal/Installa-
  tion(16-117)).
• Check  conductivity of the following numbered terminals
  by connecting a tester and one 12 V battery to the relay
 box as shown (see Relay Box Internal Circuit(16-119)).
 If the tester does not read as specified, replace the relay
 box.

Relay Circuit Inspection (with the battery disconnected)
                        Tester Connection   Tester Reading (Ω)
Headlight Circuit
                              1-3                   ∞
Relay
                              7-6                   ∞
ECU Main Relay
                              4-5                Not ∞*
                              7-8                   ∞
Fuel Pump Relay
                              9-10               Not ∞*
                             11-16                  ∞
Starter Circuit Relay
                             11-12                  ∞
                             17-20                  ∞
Fan Relay
                             18-19               Not ∞*
   *: The actual reading varies with the tester used.
