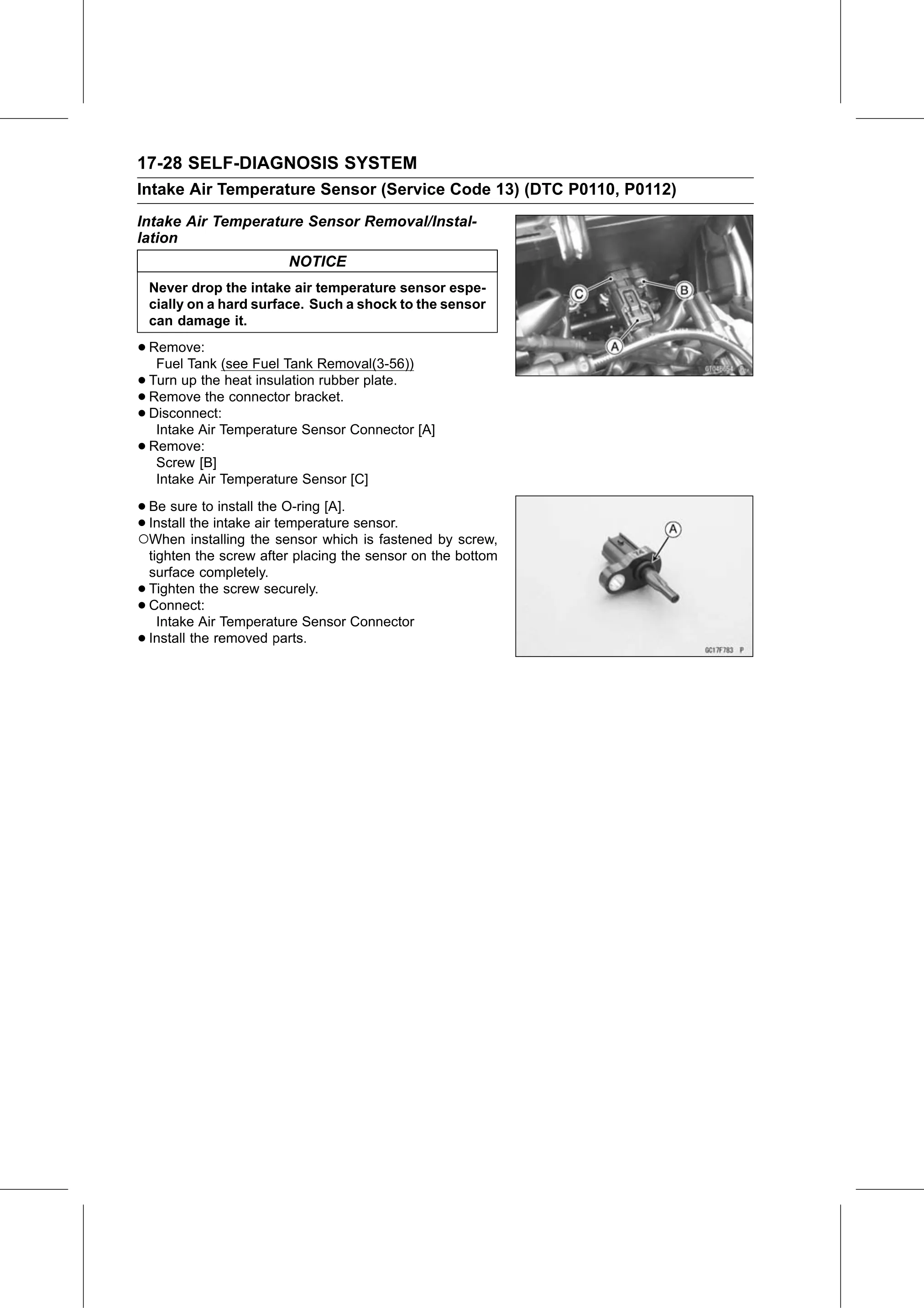

17-28 SELF-DIAGNOSIS SYSTEM
Intake Air Temperature Sensor (Service Code 13) (DTC P0110, P0112)
Intake Air Temperature Sensor Removal/Instal-
lation
                          NOTICE
    Never drop the intake air temperature sensor espe-
    cially on a hard surface. Such a shock to the sensor
    can damage it.

• Remove:
   Fuel Tank (see Fuel Tank Removal(3-56))
• Remove
  Turn up the heat insulation rubber plate.
• Disconnect:
           the connector bracket.
• Intake Air Temperature Sensor Connector [A]
• Remove:
   Screw [B]
     Intake Air Temperature Sensor [C]

• Be  sure to install the O-ring [A].
•○Install the intake air temperature sensor.
  When installing the sensor which is fastened by screw,
    tighten the screw after placing the sensor on the bottom
    surface completely.
•   Tighten the screw securely.
•   Connect:
      Intake Air Temperature Sensor Connector
•   Install the removed parts.
