18-8 APPENDIX

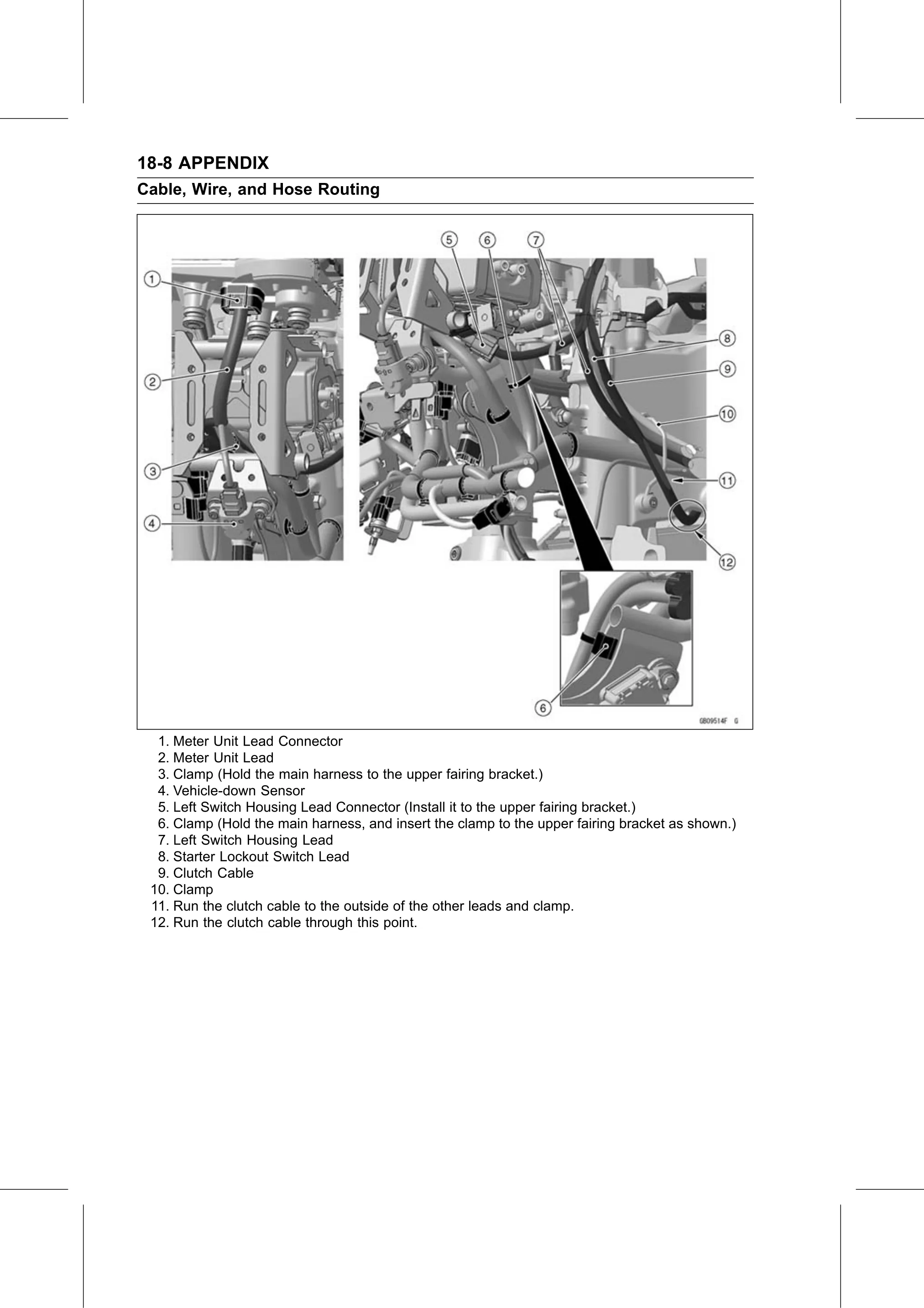

Cable, Wire, and Hose Routing

  1. Meter Unit Lead Connector
  2. Meter Unit Lead
  3. Clamp (Hold the main harness to the upper fairing bracket.)
  4. Vehicle-down Sensor
  5. Left Switch Housing Lead Connector (Install it to the upper fairing bracket.)
  6. Clamp (Hold the main harness, and insert the clamp to the upper fairing bracket as shown.)
  7. Left Switch Housing Lead
  8. Starter Lockout Switch Lead
  9. Clutch Cable
 10. Clamp
 11. Run the clutch cable to the outside of the other leads and clamp.
 12. Run the clutch cable through this point.
