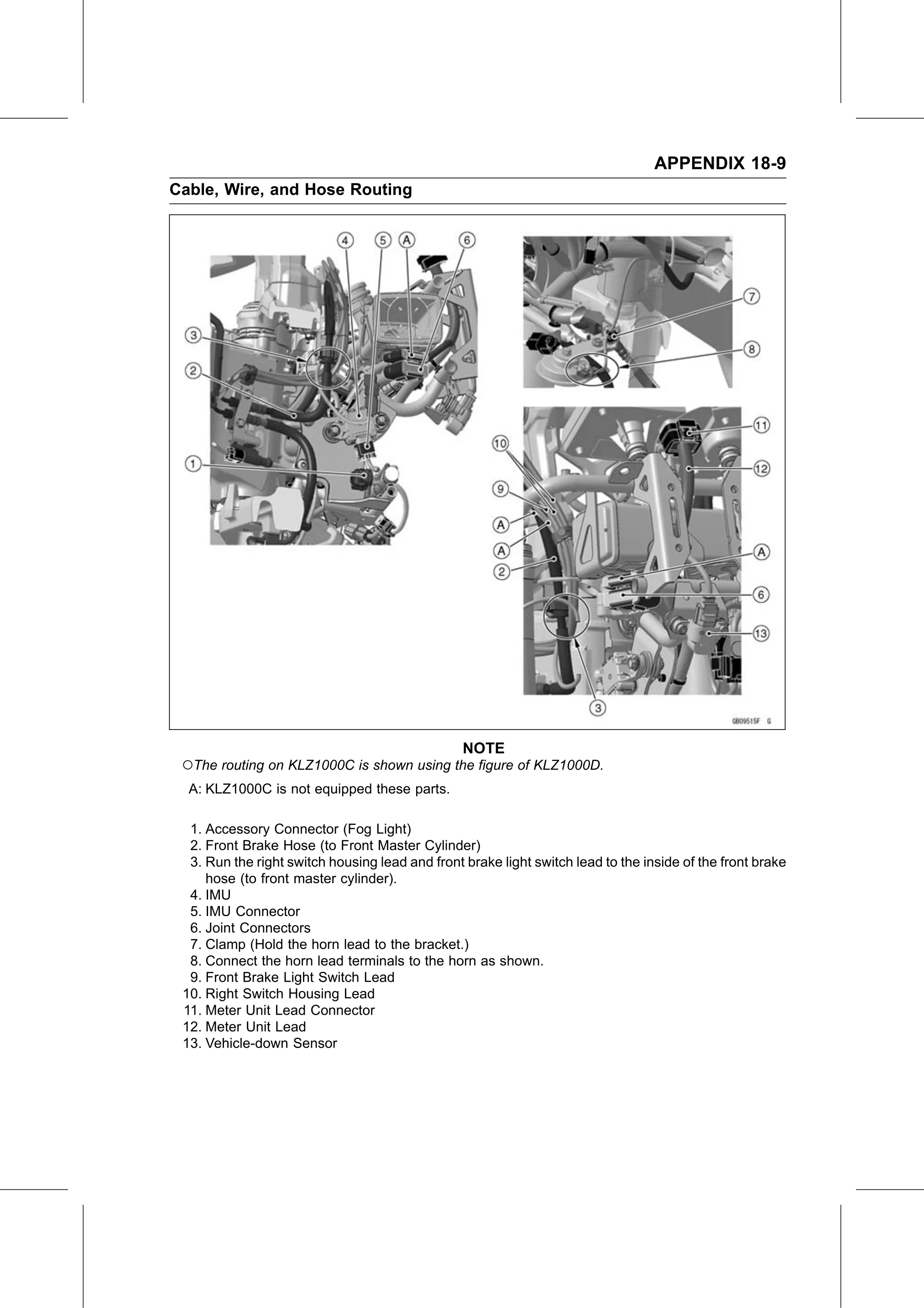

APPENDIX 18-9
Cable, Wire, and Hose Routing

                                                 NOTE
 ○The routing on KLZ1000C is shown using the figure of KLZ1000D.
  A: KLZ1000C is not equipped these parts.

  1. Accessory Connector (Fog Light)
  2. Front Brake Hose (to Front Master Cylinder)
  3. Run the right switch housing lead and front brake light switch lead to the inside of the front brake
     hose (to front master cylinder).
  4. IMU
  5. IMU Connector
  6. Joint Connectors
  7. Clamp (Hold the horn lead to the bracket.)
  8. Connect the horn lead terminals to the horn as shown.
  9. Front Brake Light Switch Lead
 10. Right Switch Housing Lead
 11. Meter Unit Lead Connector
 12. Meter Unit Lead
 13. Vehicle-down Sensor
