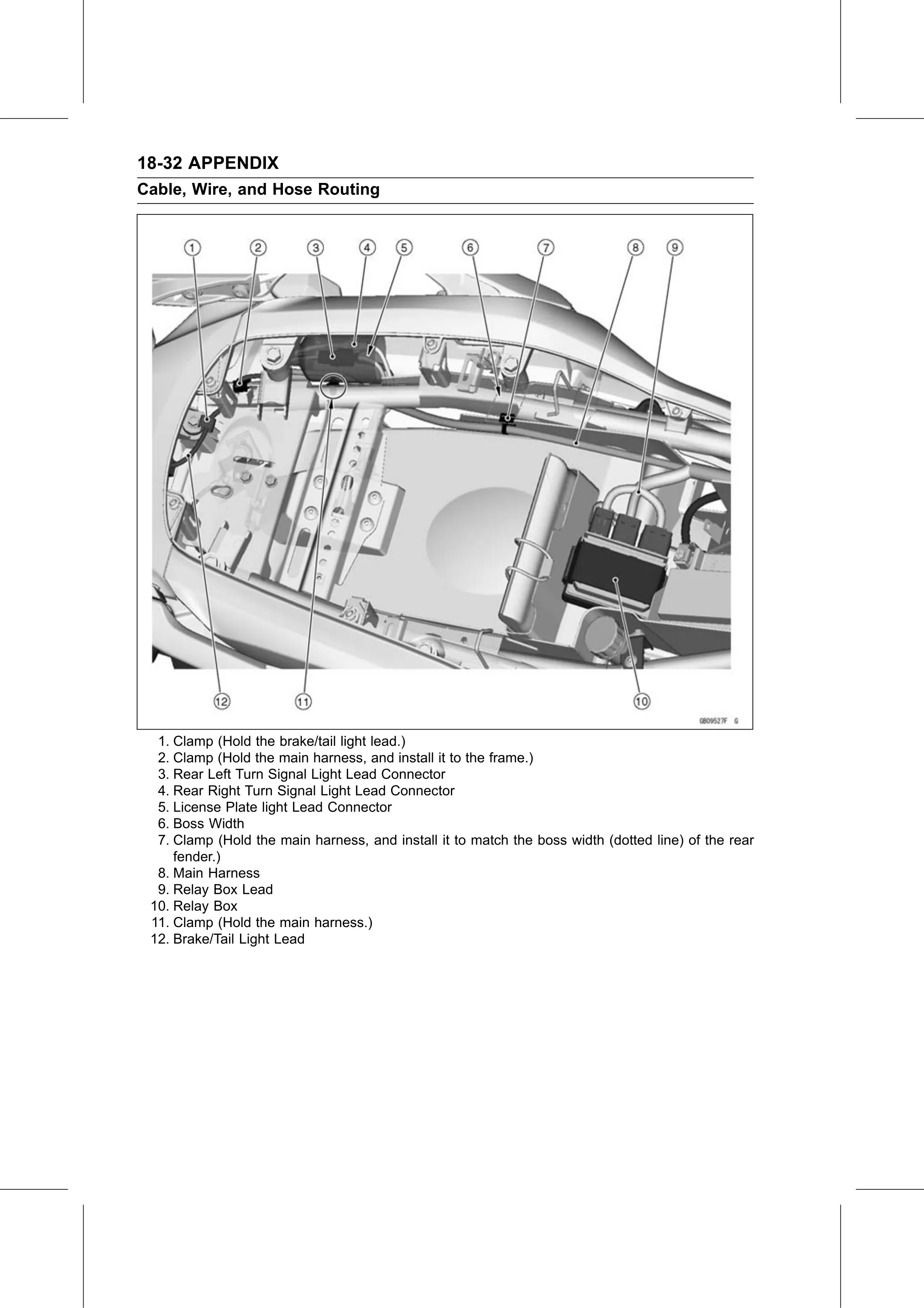

18-32 APPENDIX
Cable, Wire, and Hose Routing

  1. Clamp (Hold the brake/tail light lead.)
  2. Clamp (Hold the main harness, and install it to the frame.)
  3. Rear Left Turn Signal Light Lead Connector
  4. Rear Right Turn Signal Light Lead Connector
  5. License Plate light Lead Connector
  6. Boss Width
  7. Clamp (Hold the main harness, and install it to match the boss width (dotted line) of the rear
     fender.)
  8. Main Harness
  9. Relay Box Lead
 10. Relay Box
 11. Clamp (Hold the main harness.)
 12. Brake/Tail Light Lead
