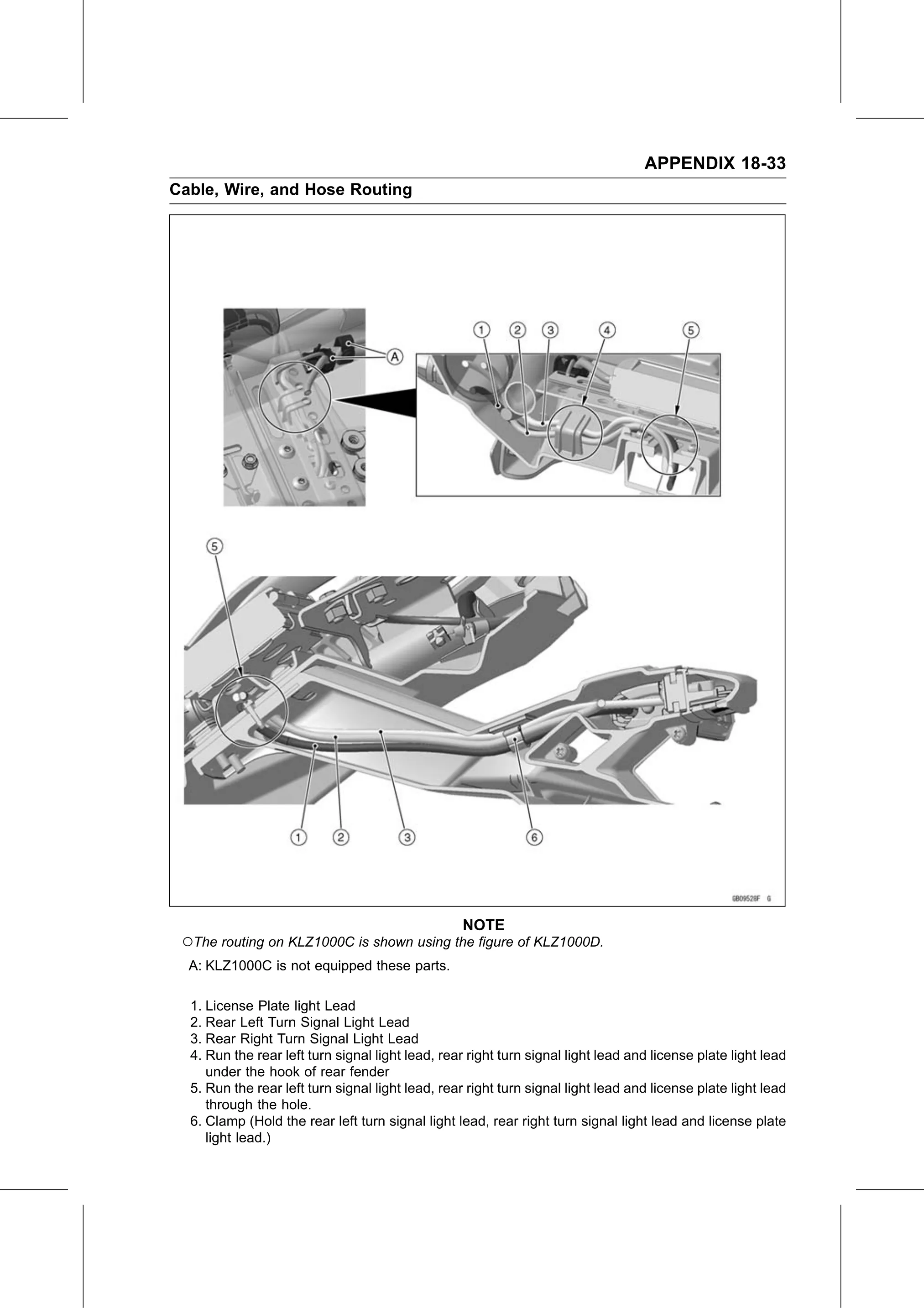

APPENDIX 18-33
Cable, Wire, and Hose Routing

                                                  NOTE
 ○The routing on KLZ1000C is shown using the figure of KLZ1000D.
  A: KLZ1000C is not equipped these parts.

  1. License Plate light Lead
  2. Rear Left Turn Signal Light Lead
  3. Rear Right Turn Signal Light Lead
  4. Run the rear left turn signal light lead, rear right turn signal light lead and license plate light lead
     under the hook of rear fender
  5. Run the rear left turn signal light lead, rear right turn signal light lead and license plate light lead
     through the hole.
  6. Clamp (Hold the rear left turn signal light lead, rear right turn signal light lead and license plate
     light lead.)
