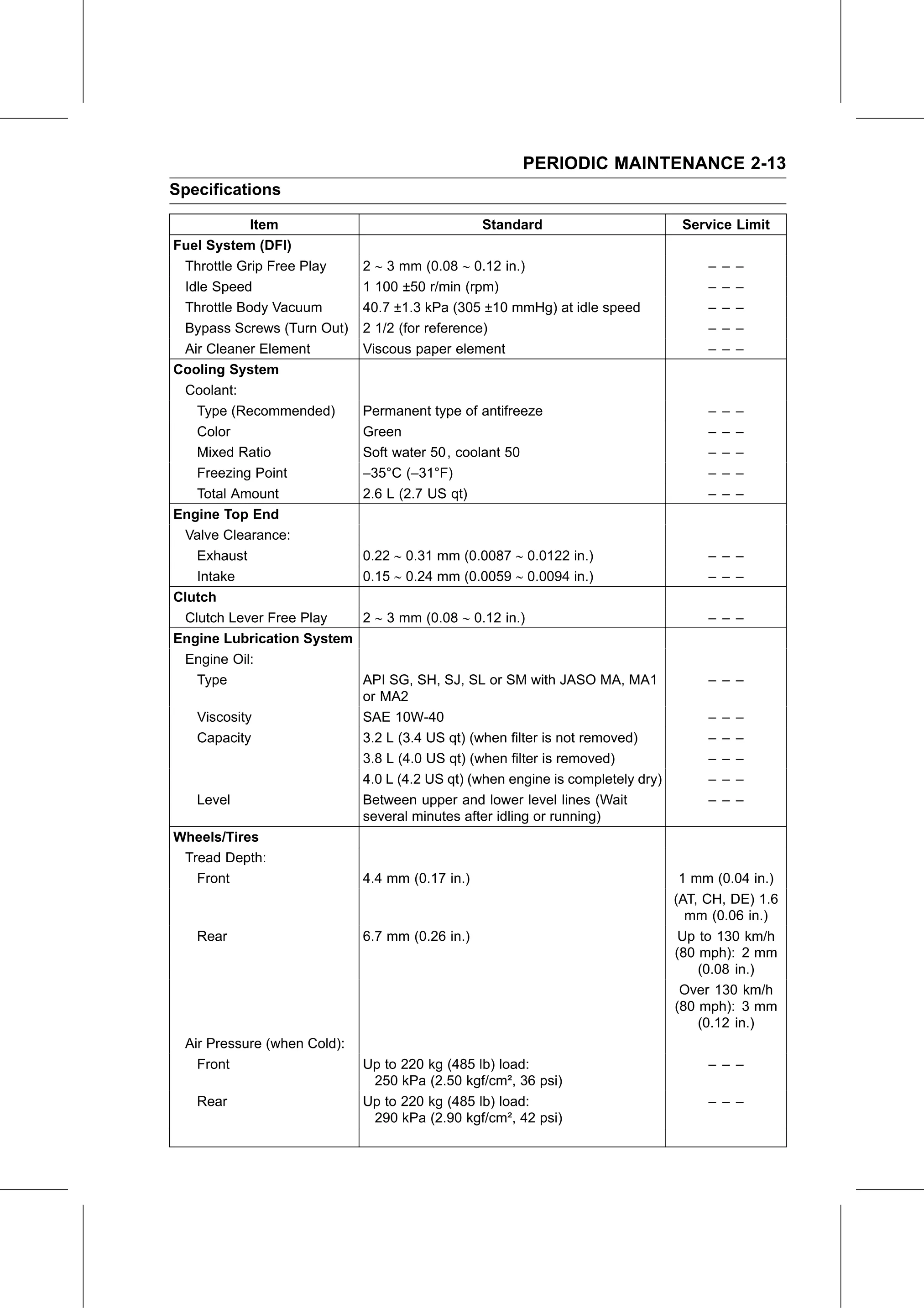

Service Manual — page 35 of 715

Text on this page

PERIODIC MAINTENANCE 2-13
Specifications

            Item                                 Standard                         Service Limit
Fuel System (DFI)
 Throttle Grip Free Play     2 ∼ 3 mm (0.08 ∼ 0.12 in.)                               – – –
 Idle Speed                  1 100 ±50 r/min (rpm)                                    – – –
 Throttle Body Vacuum        40.7 ±1.3 kPa (305 ±10 mmHg) at idle speed               – – –
 Bypass Screws (Turn Out)    2 1/2 (for reference)                                    – – –
 Air Cleaner Element         Viscous paper element                                    – – –
Cooling System
 Coolant:
   Type (Recommended)        Permanent type of antifreeze                             – – –
   Color                     Green                                                    – – –
   Mixed Ratio               Soft water 50, coolant 50                                – – –
   Freezing Point            –35°C (–31°F)                                            – – –
   Total Amount              2.6 L (2.7 US qt)                                        – – –
Engine Top End
 Valve Clearance:
   Exhaust                   0.22 ∼ 0.31 mm (0.0087 ∼ 0.0122 in.)                     – – –
   Intake                    0.15 ∼ 0.24 mm (0.0059 ∼ 0.0094 in.)                     – – –
Clutch
 Clutch Lever Free Play      2 ∼ 3 mm (0.08 ∼ 0.12 in.)                               – – –
Engine Lubrication System
 Engine Oil:
   Type                      API SG, SH, SJ, SL or SM with JASO MA, MA1               – – –
                             or MA2
   Viscosity                 SAE 10W-40                                               – – –
   Capacity                  3.2 L (3.4 US qt) (when filter is not removed)           – – –
                             3.8 L (4.0 US qt) (when filter is removed)               – – –
                             4.0 L (4.2 US qt) (when engine is completely dry)        – – –
   Level                     Between upper and lower level lines (Wait                – – –
                             several minutes after idling or running)
Wheels/Tires
 Tread Depth:
   Front                     4.4 mm (0.17 in.)                                    1 mm (0.04 in.)
                                                                                 (AT, CH, DE) 1.6
                                                                                   mm (0.06 in.)
   Rear                      6.7 mm (0.26 in.)                                    Up to 130 km/h
                                                                                 (80 mph): 2 mm
                                                                                     (0.08 in.)
                                                                                  Over 130 km/h
                                                                                 (80 mph): 3 mm
                                                                                     (0.12 in.)
 Air Pressure (when Cold):
   Front                     Up to 220 kg (485 lb) load:                              – – –
                              250 kPa (2.50 kgf/cm², 36 psi)
   Rear                      Up to 220 kg (485 lb) load:                              – – –
                              290 kPa (2.90 kgf/cm², 42 psi)
