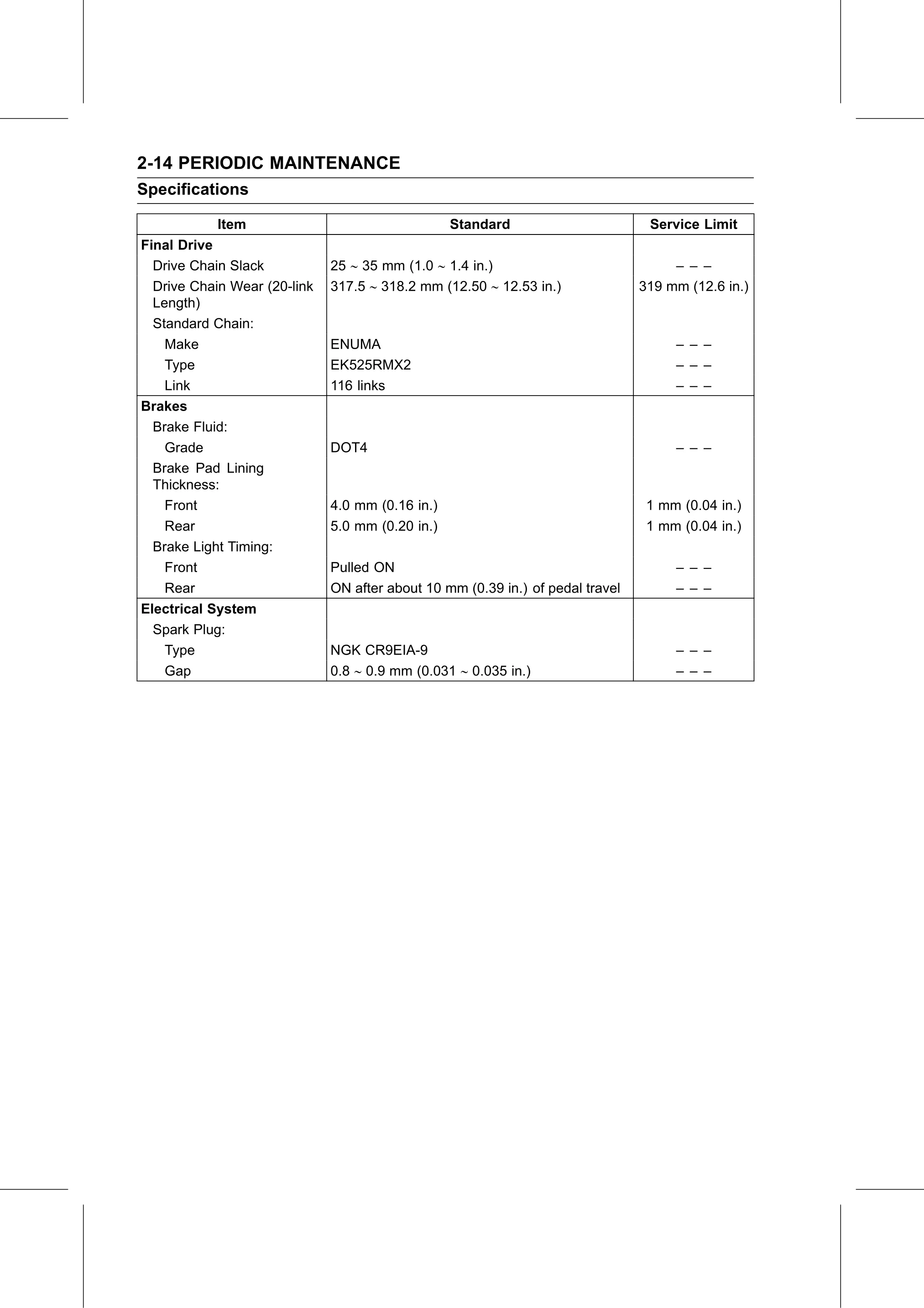

2-14 PERIODIC MAINTENANCE
Specifications

            Item                                  Standard                       Service Limit
Final Drive
  Drive Chain Slack           25 ∼ 35 mm (1.0 ∼ 1.4 in.)                             – – –
  Drive Chain Wear (20-link   317.5 ∼ 318.2 mm (12.50 ∼ 12.53 in.)              319 mm (12.6 in.)
  Length)
  Standard Chain:
    Make                      ENUMA                                                  – – –
    Type                      EK525RMX2                                              – – –
    Link                      116 links                                              – – –
Brakes
  Brake Fluid:
    Grade                     DOT4                                                   – – –
  Brake Pad Lining
  Thickness:
    Front                     4.0 mm (0.16 in.)                                  1 mm (0.04 in.)
    Rear                      5.0 mm (0.20 in.)                                  1 mm (0.04 in.)
  Brake Light Timing:
    Front                     Pulled ON                                              – – –
    Rear                      ON after about 10 mm (0.39 in.) of pedal travel        – – –
Electrical System
  Spark Plug:
    Type                      NGK CR9EIA-9                                           – – –
    Gap                       0.8 ∼ 0.9 mm (0.031 ∼ 0.035 in.)                       – – –
