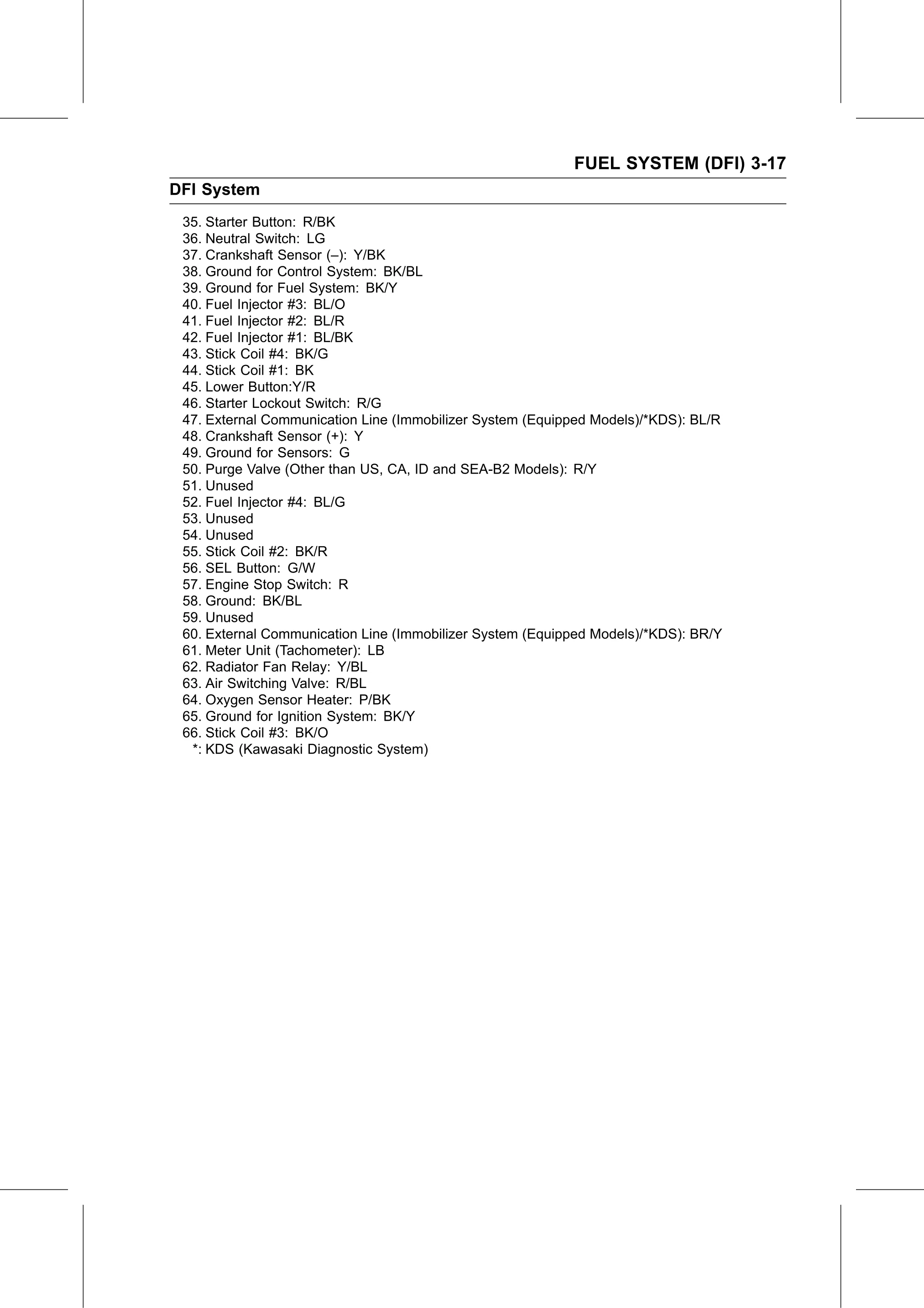

FUEL SYSTEM (DFI) 3-17
DFI System
 35. Starter Button: R/BK
 36. Neutral Switch: LG
 37. Crankshaft Sensor (–): Y/BK
 38. Ground for Control System: BK/BL
 39. Ground for Fuel System: BK/Y
 40. Fuel Injector #3: BL/O
 41. Fuel Injector #2: BL/R
 42. Fuel Injector #1: BL/BK
 43. Stick Coil #4: BK/G
 44. Stick Coil #1: BK
 45. Lower Button:Y/R
 46. Starter Lockout Switch: R/G
 47. External Communication Line (Immobilizer System (Equipped Models)/*KDS): BL/R
 48. Crankshaft Sensor (+): Y
 49. Ground for Sensors: G
 50. Purge Valve (Other than US, CA, ID and SEA-B2 Models): R/Y
 51. Unused
 52. Fuel Injector #4: BL/G
 53. Unused
 54. Unused
 55. Stick Coil #2: BK/R
 56. SEL Button: G/W
 57. Engine Stop Switch: R
 58. Ground: BK/BL
 59. Unused
 60. External Communication Line (Immobilizer System (Equipped Models)/*KDS): BR/Y
 61. Meter Unit (Tachometer): LB
 62. Radiator Fan Relay: Y/BL
 63. Air Switching Valve: R/BL
 64. Oxygen Sensor Heater: P/BK
 65. Ground for Ignition System: BK/Y
 66. Stick Coil #3: BK/O
  *: KDS (Kawasaki Diagnostic System)
