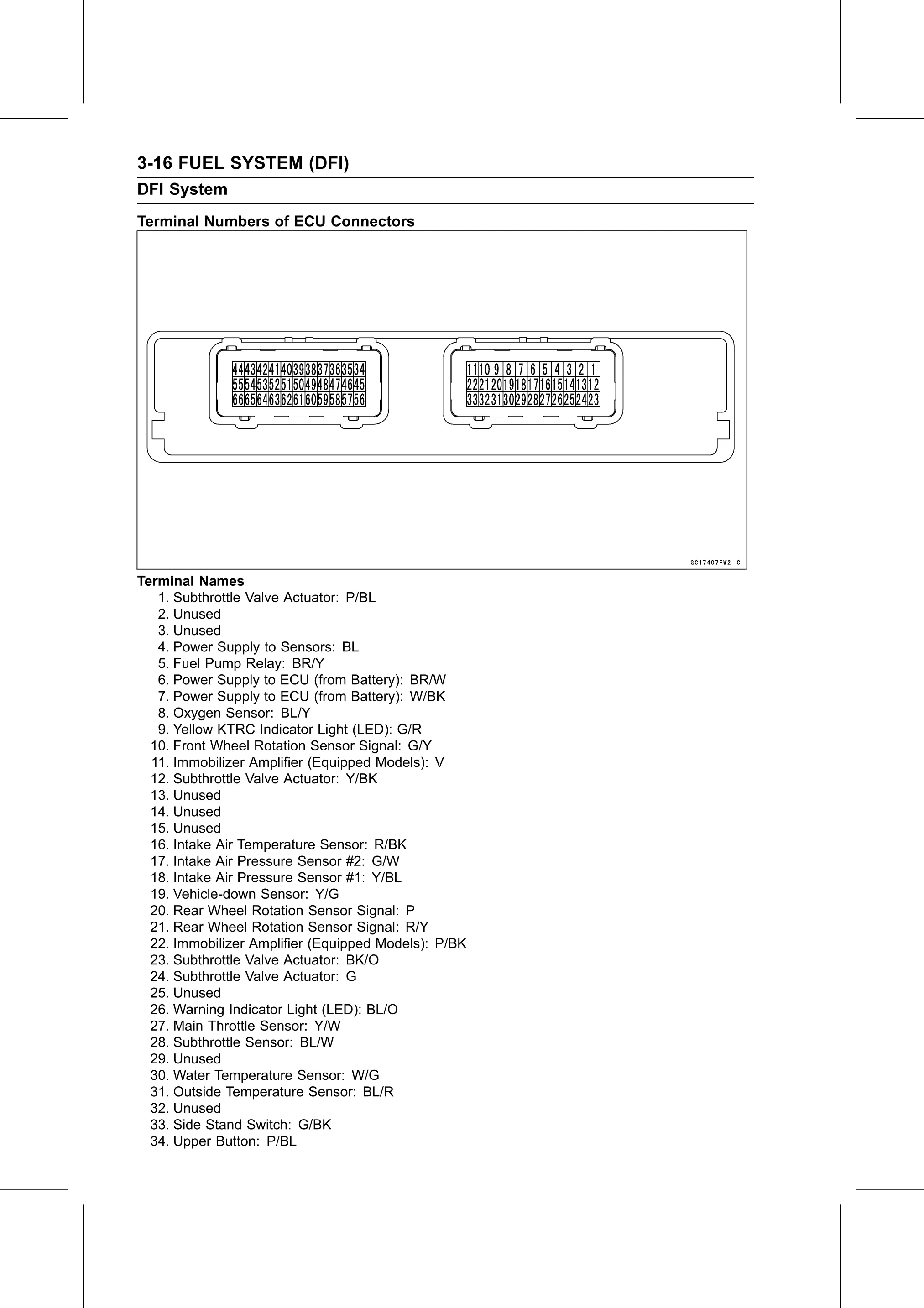

3-16 FUEL SYSTEM (DFI)
DFI System
Terminal Numbers of ECU Connectors

Terminal Names
   1. Subthrottle Valve Actuator: P/BL
   2. Unused
   3. Unused
   4. Power Supply to Sensors: BL
   5. Fuel Pump Relay: BR/Y
   6. Power Supply to ECU (from Battery): BR/W
   7. Power Supply to ECU (from Battery): W/BK
   8. Oxygen Sensor: BL/Y
   9. Yellow KTRC Indicator Light (LED): G/R
  10. Front Wheel Rotation Sensor Signal: G/Y
  11. Immobilizer Amplifier (Equipped Models): V
  12. Subthrottle Valve Actuator: Y/BK
  13. Unused
  14. Unused
  15. Unused
  16. Intake Air Temperature Sensor: R/BK
  17. Intake Air Pressure Sensor #2: G/W
  18. Intake Air Pressure Sensor #1: Y/BL
  19. Vehicle-down Sensor: Y/G
  20. Rear Wheel Rotation Sensor Signal: P
  21. Rear Wheel Rotation Sensor Signal: R/Y
  22. Immobilizer Amplifier (Equipped Models): P/BK
  23. Subthrottle Valve Actuator: BK/O
  24. Subthrottle Valve Actuator: G
  25. Unused
  26. Warning Indicator Light (LED): BL/O
  27. Main Throttle Sensor: Y/W
  28. Subthrottle Sensor: BL/W
  29. Unused
  30. Water Temperature Sensor: W/G
  31. Outside Temperature Sensor: BL/R
  32. Unused
  33. Side Stand Switch: G/BK
  34. Upper Button: P/BL
