FUEL SYSTEM (DFI) 3-57

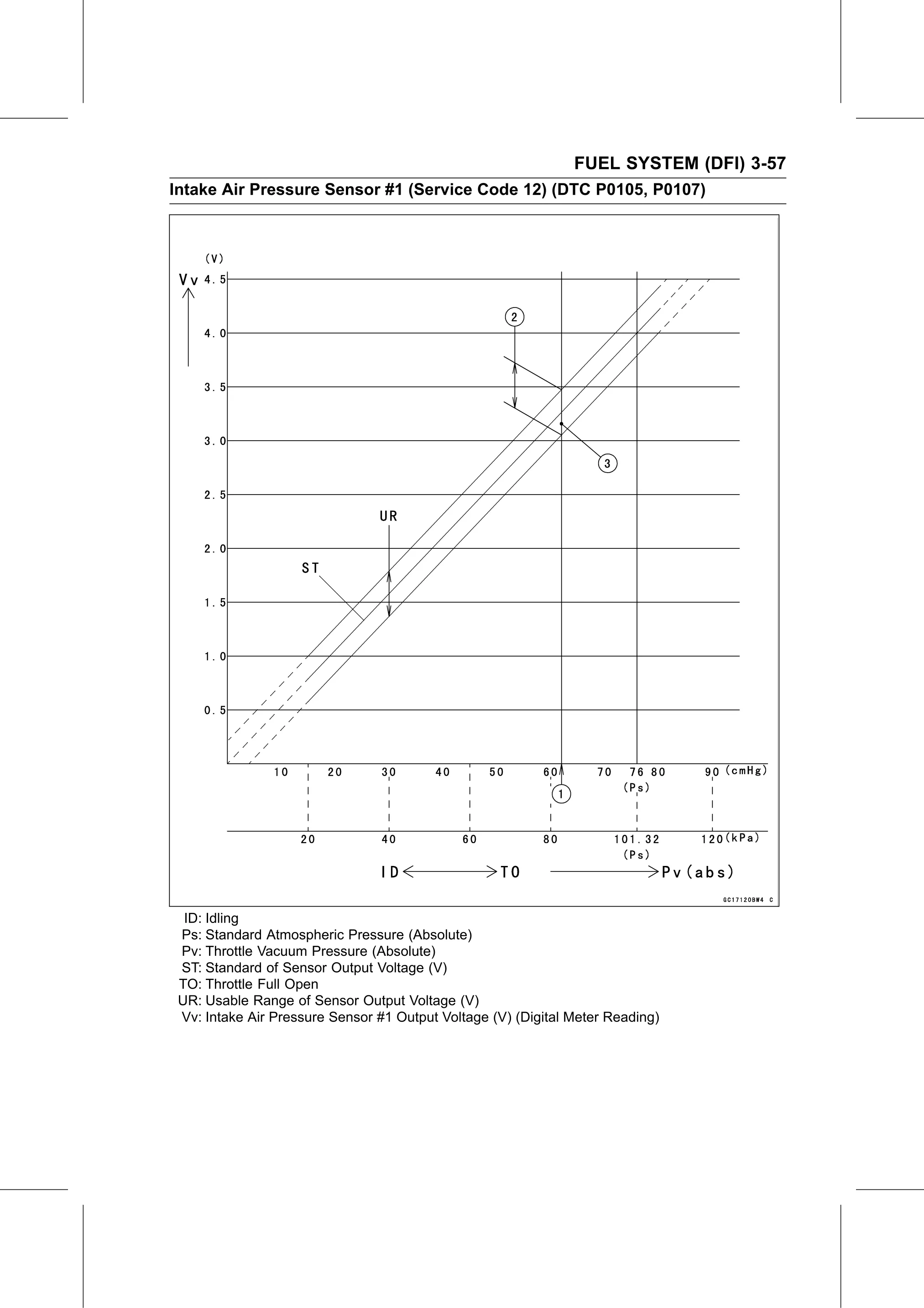

Intake Air Pressure Sensor #1 (Service Code 12) (DTC P0105, P0107)

  ID: Idling
 Ps: Standard Atmospheric Pressure (Absolute)
 Pv: Throttle Vacuum Pressure (Absolute)
 ST: Standard of Sensor Output Voltage (V)
 TO: Throttle Full Open
 UR: Usable Range of Sensor Output Voltage (V)
 Vv: Intake Air Pressure Sensor #1 Output Voltage (V) (Digital Meter Reading)
