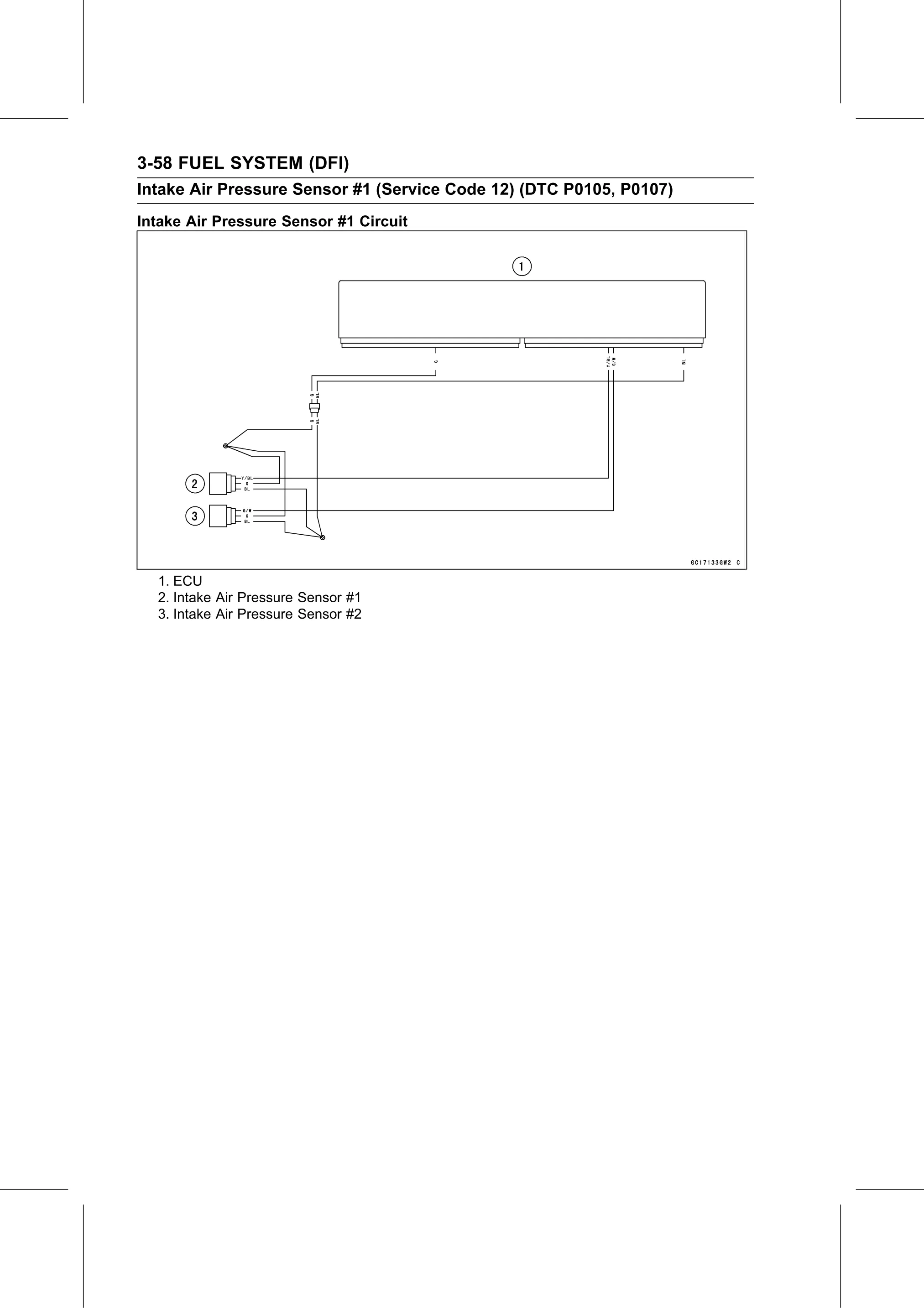

3-58 FUEL SYSTEM (DFI)
Intake Air Pressure Sensor #1 (Service Code 12) (DTC P0105, P0107)
Intake Air Pressure Sensor #1 Circuit

  1. ECU
  2. Intake Air Pressure Sensor #1
  3. Intake Air Pressure Sensor #2
