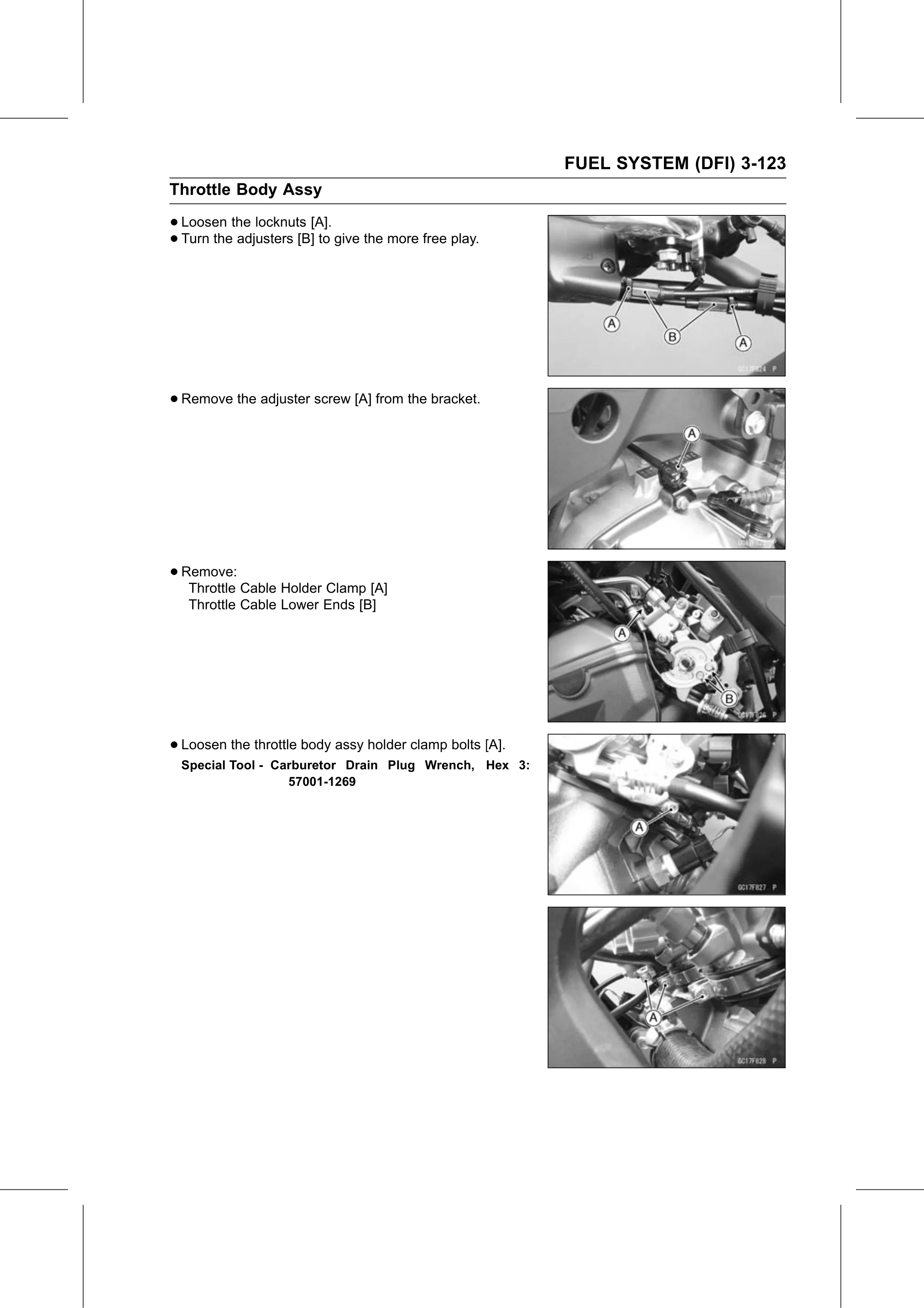

FUEL SYSTEM (DFI) 3-123
Throttle Body Assy

• Loosen  the locknuts [A].
• Turn the adjusters [B] to give the more free play.

• Remove the adjuster screw [A] from the bracket.

• Remove:
   Throttle Cable Holder Clamp [A]
   Throttle Cable Lower Ends [B]

• Loosen the throttle body assy holder clamp bolts [A].
 Special Tool - Carburetor Drain Plug Wrench, Hex 3:
                  57001-1269
