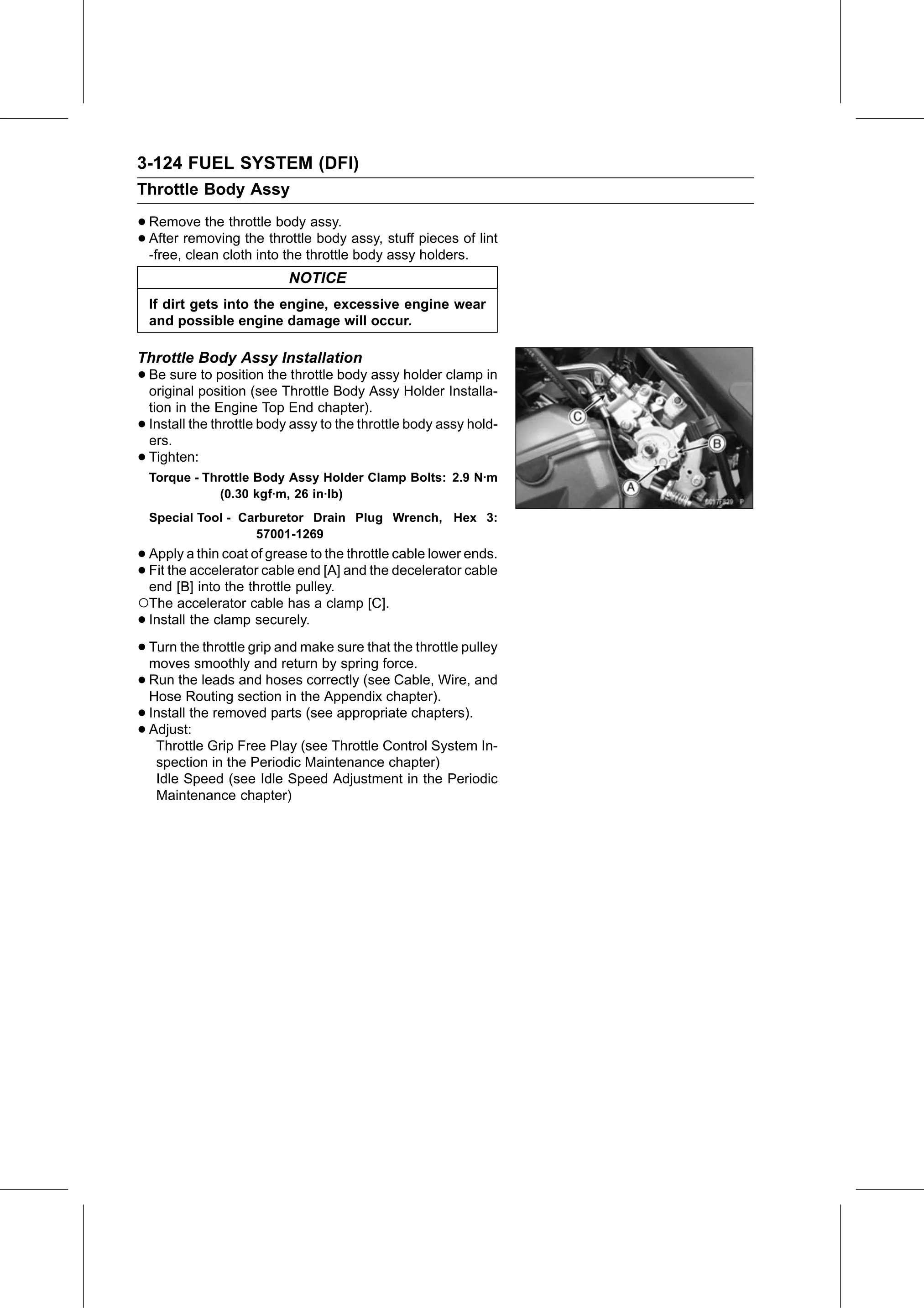

3-124 FUEL SYSTEM (DFI)
Throttle Body Assy

• Remove    the throttle body assy.
• -free, clean cloththeintothrottle
  After removing                    body assy, stuff pieces of lint
                             the throttle body assy holders.
                            NOTICE
    If dirt gets into the engine, excessive engine wear
    and possible engine damage will occur.

Throttle Body Assy Installation
• Be  sure to position the throttle body assy holder clamp in
  original position (see Throttle Body Assy Holder Installa-
    tion in the Engine Top End chapter).
•   Install the throttle body assy to the throttle body assy hold-
    ers.
•   Tighten:
    Torque - Throttle Body Assy Holder Clamp Bolts: 2.9 N·m
                (0.30 kgf·m, 26 in·lb)
    Special Tool - Carburetor Drain Plug Wrench, Hex 3:
                     57001-1269
• Apply  a thin coat of grease to the throttle cable lower ends.
• end [B]accelerator
  Fit the              cable end [A] and the decelerator cable
           into the throttle pulley.
○The accelerator cable has a clamp [C].
• Install the clamp securely.
• Turn the throttle grip and make sure that the throttle pulley
  moves smoothly and return by spring force.
• Run  the leads and hoses correctly (see Cable, Wire, and
  Hose Routing section in the Appendix chapter).
• Install the removed parts (see appropriate chapters).
• Throttle Grip Free Play (see Throttle Control System In-
  Adjust:

     spection in the Periodic Maintenance chapter)
     Idle Speed (see Idle Speed Adjustment in the Periodic
     Maintenance chapter)
