ENGINE TOP END 5-45
Muffler

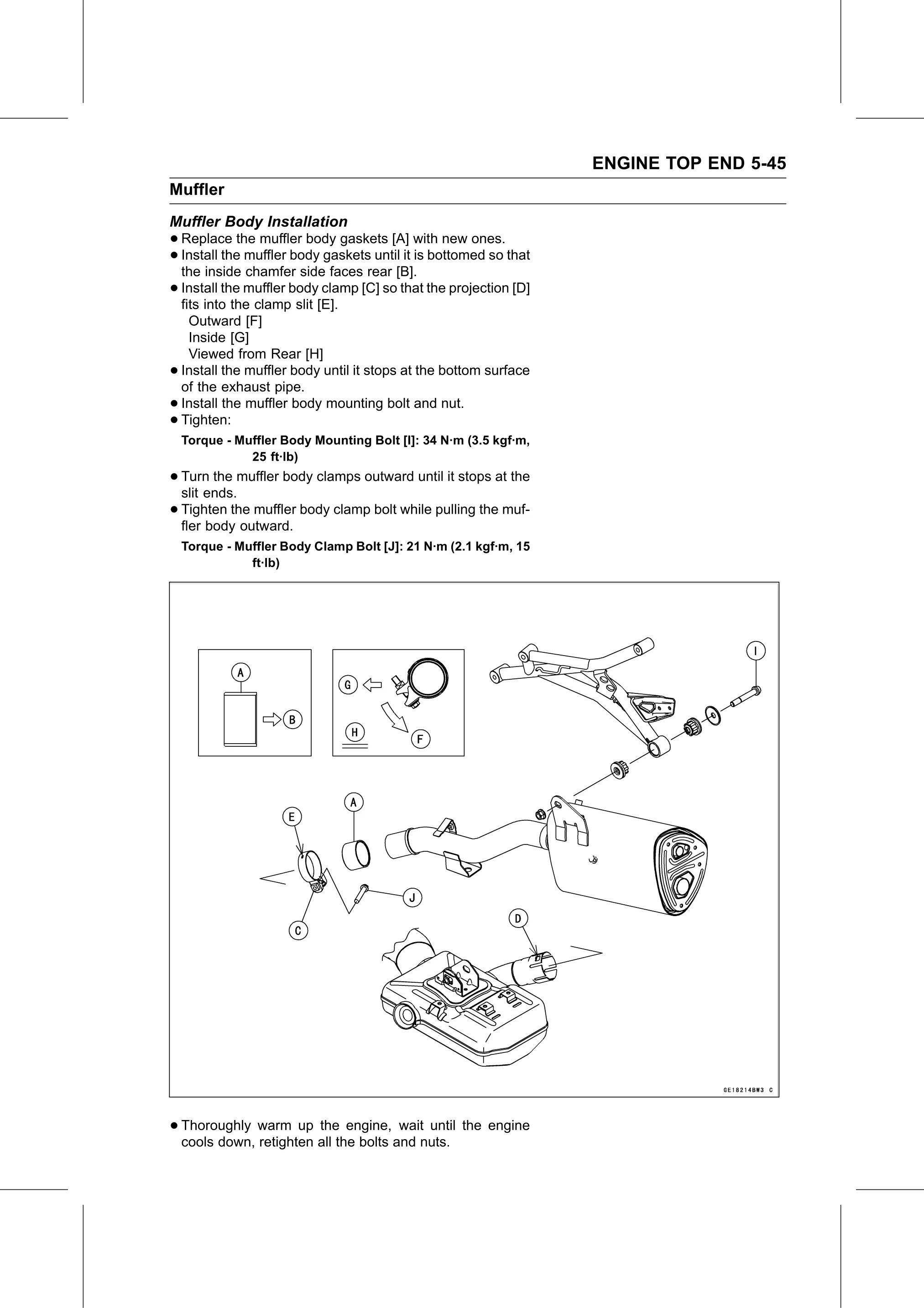

Muffler Body Installation
• Replace    the muffler body gaskets [A] with new ones.
• Install the muffler body gaskets until it is bottomed so that
  the inside chamfer side faces rear [B].
• Install the muffler body clamp [C] so that the projection [D]
  fits into the clamp slit [E].
     Outward [F]
     Inside [G]
     Viewed from Rear [H]
•   Install the muffler body until it stops at the bottom surface
    of the exhaust pipe.
•   Install the muffler body mounting bolt and nut.
•   Tighten:
    Torque - Muffler Body Mounting Bolt [I]: 34 N·m (3.5 kgf·m,
               25 ft·lb)
• Turn  the muffler body clamps outward until it stops at the
  slit ends.
• Tighten  the muffler body clamp bolt while pulling the muf-
  fler body outward.
    Torque - Muffler Body Clamp Bolt [J]: 21 N·m (2.1 kgf·m, 15
               ft·lb)

• Thoroughly  warm up the engine, wait until the engine
  cools down, retighten all the bolts and nuts.
