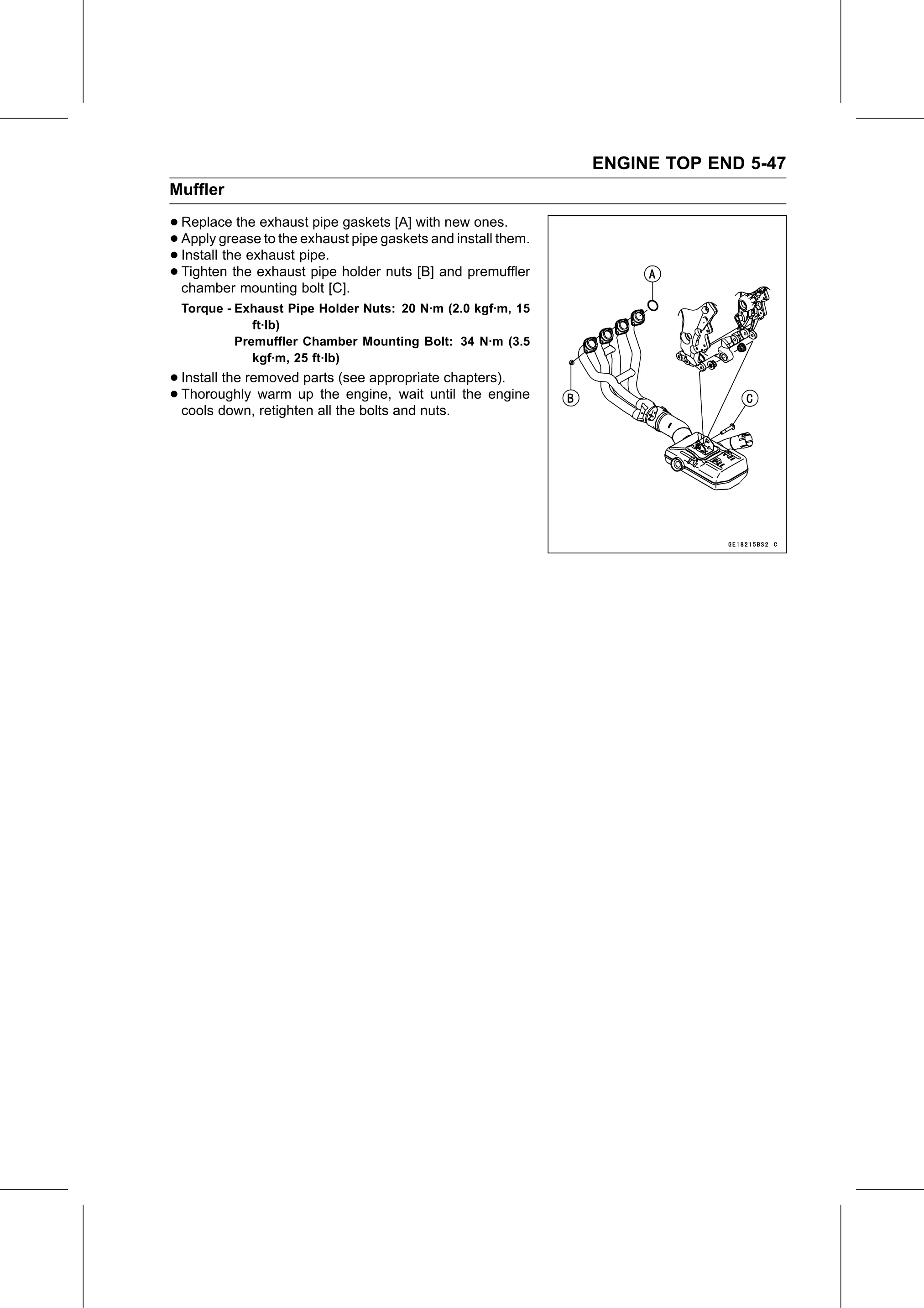

ENGINE TOP END 5-47
Muffler

• Replace   the exhaust pipe gaskets [A] with new ones.
• Install the exhaust
  Apply  grease  to the exhaust pipe gaskets and install them.
• Tighten the exhaustpipe.
• chamber mounting bolt  pipe holder nuts [B] and premuffler
                            [C].
  Torque - Exhaust Pipe Holder Nuts: 20 N·m (2.0 kgf·m, 15
              ft·lb)
           Premuffler Chamber Mounting Bolt: 34 N·m (3.5
              kgf·m, 25 ft·lb)
• Install the removed parts (see appropriate chapters).
• cools down, warm
  Thoroughly           up the engine, wait until the engine
                retighten all the bolts and nuts.
