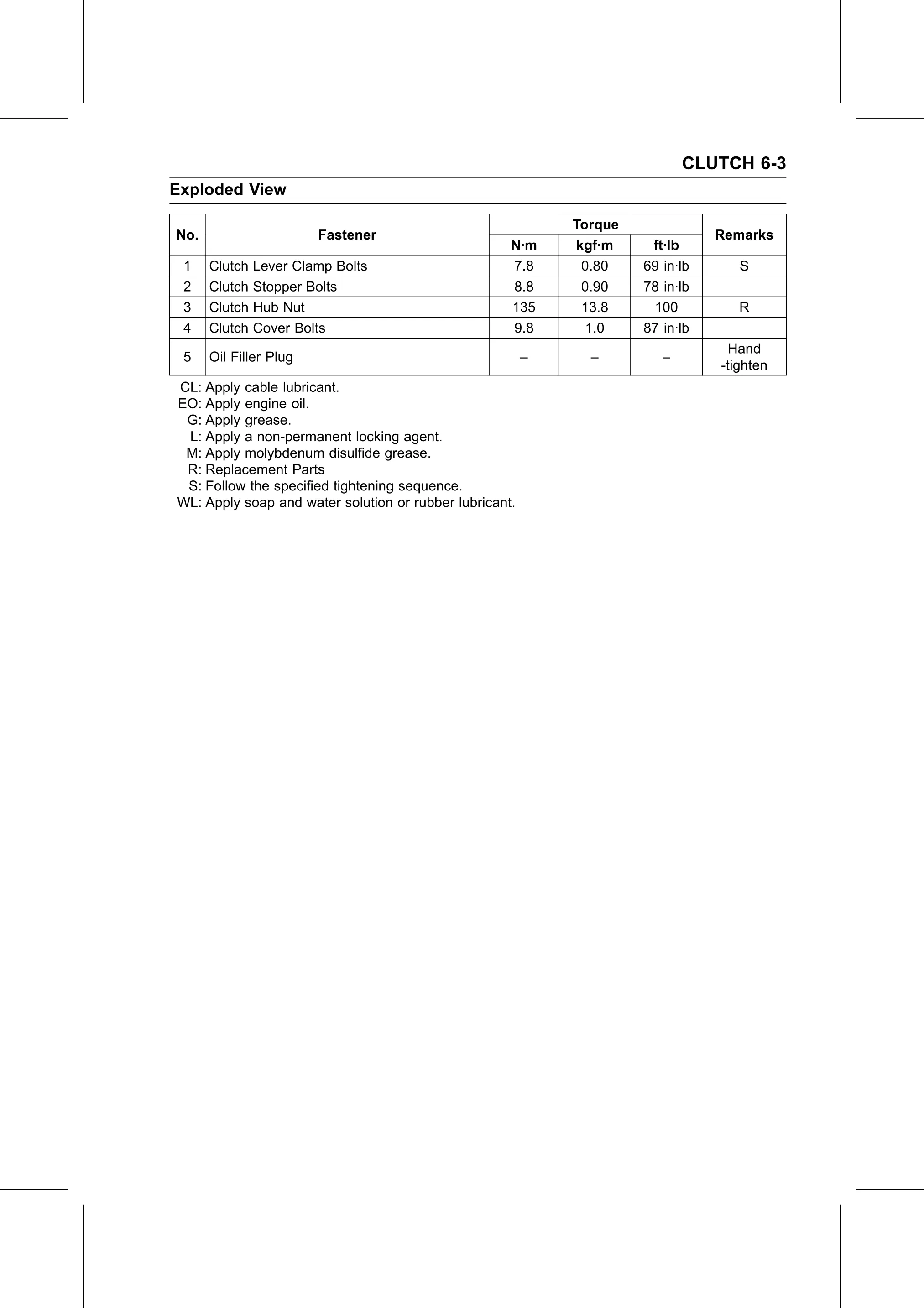

CLUTCH 6-3
Exploded View

                                                             Torque
No.                     Fastener                                                 Remarks
                                                     N·m     kgf·m     ft·lb
 1    Clutch Lever Clamp Bolts                       7.8      0.80    69 in·lb      S
 2    Clutch Stopper Bolts                           8.8      0.90    78 in·lb
 3    Clutch Hub Nut                                 135      13.8     100          R
 4    Clutch Cover Bolts                             9.8       1.0    87 in·lb
                                                                                  Hand
 5    Oil Filler Plug                                    –     –         –
                                                                                 -tighten
CL: Apply cable lubricant.
EO: Apply engine oil.
 G: Apply grease.
 L: Apply a non-permanent locking agent.
 M: Apply molybdenum disulfide grease.
 R: Replacement Parts
 S: Follow the specified tightening sequence.
WL: Apply soap and water solution or rubber lubricant.
