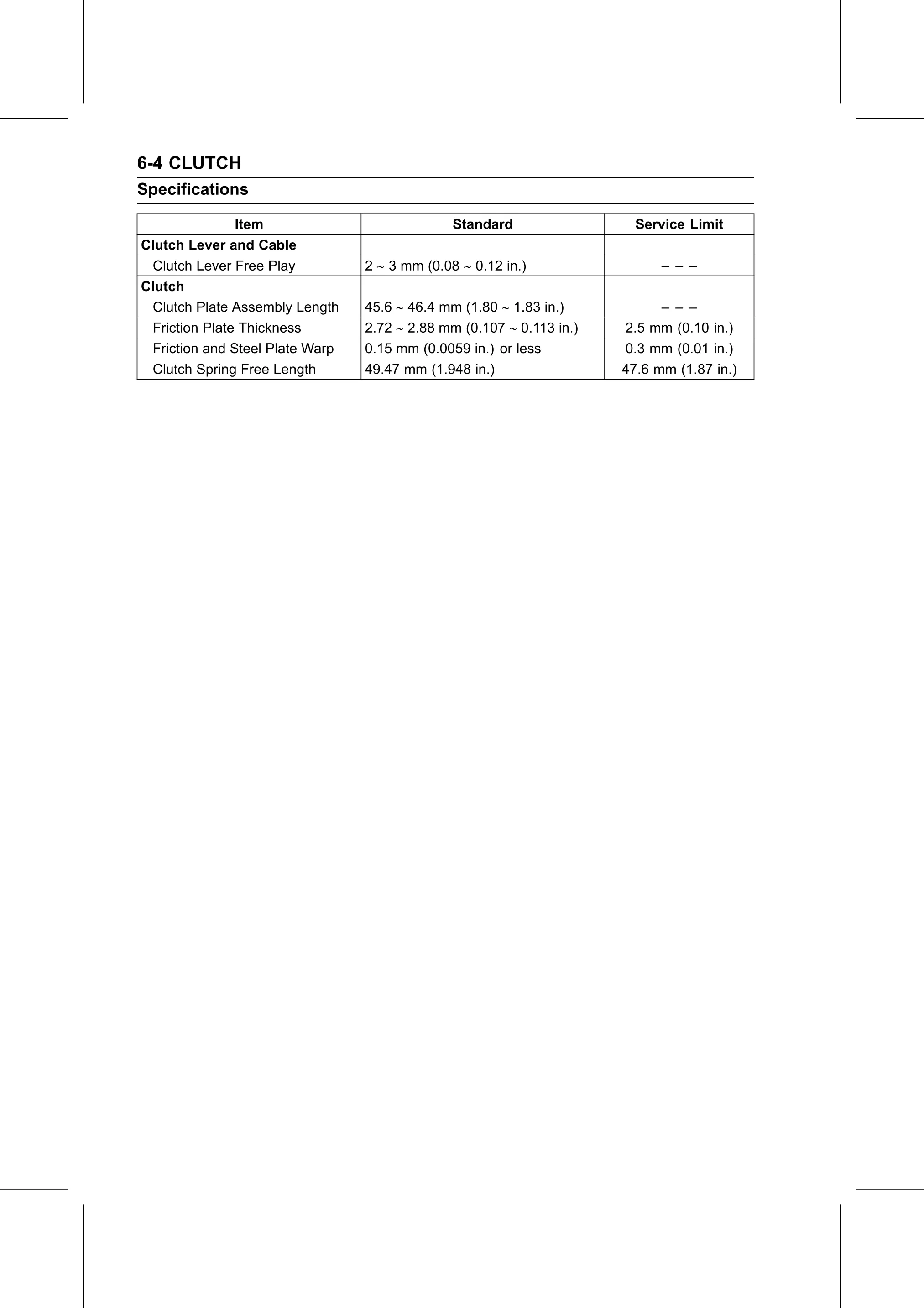

6-4 CLUTCH
Specifications

               Item                            Standard                 Service Limit
Clutch Lever and Cable
 Clutch Lever Free Play          2 ∼ 3 mm (0.08 ∼ 0.12 in.)                 – – –
Clutch
 Clutch Plate Assembly Length    45.6 ∼ 46.4 mm (1.80 ∼ 1.83 in.)           – – –
 Friction Plate Thickness        2.72 ∼ 2.88 mm (0.107 ∼ 0.113 in.)   2.5 mm (0.10 in.)
 Friction and Steel Plate Warp   0.15 mm (0.0059 in.) or less         0.3 mm (0.01 in.)
 Clutch Spring Free Length       49.47 mm (1.948 in.)                 47.6 mm (1.87 in.)
