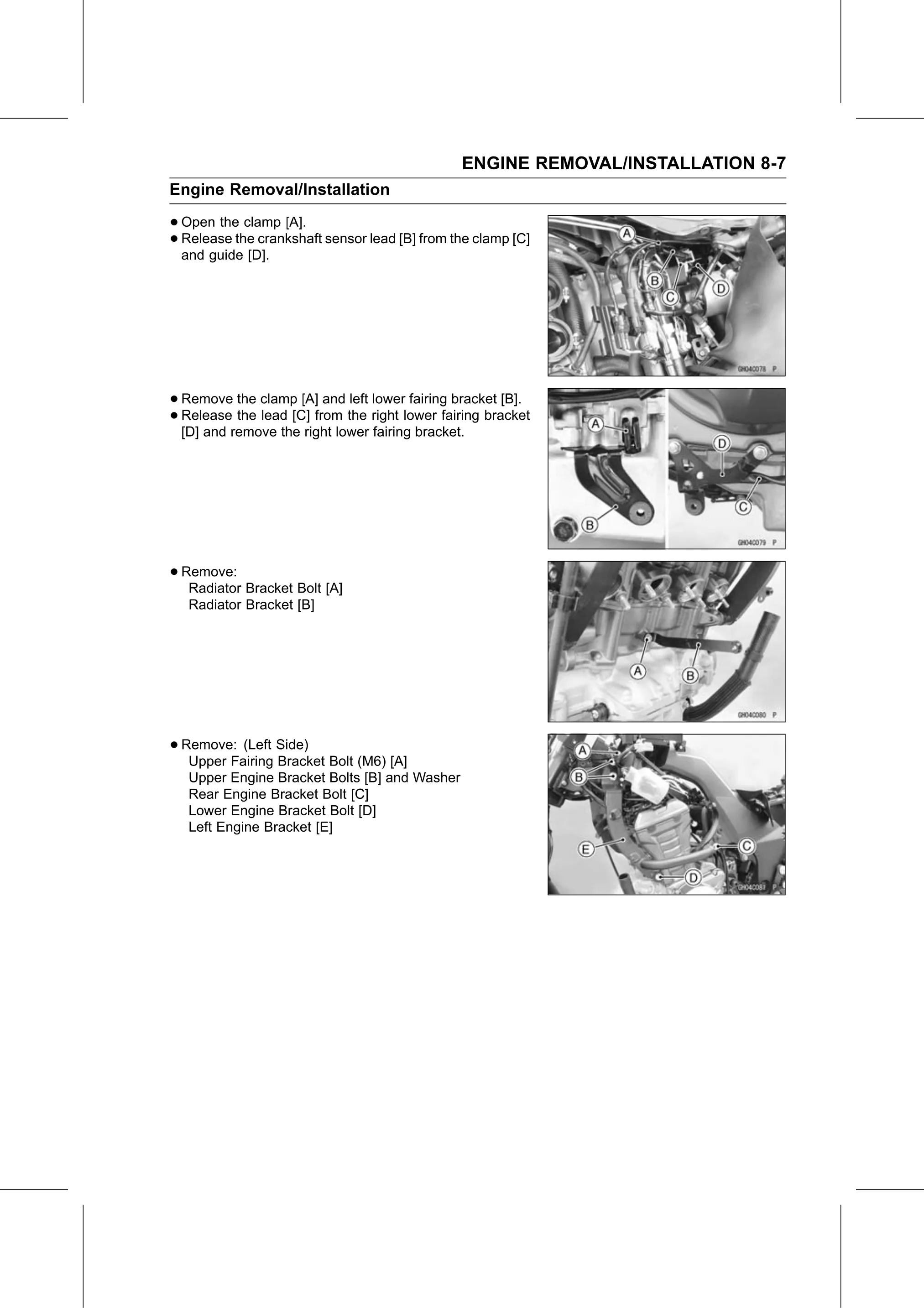

ENGINE REMOVAL/INSTALLATION 8-7
Engine Removal/Installation

• Open the clamp [A].
• and guidethe[D].crankshaft sensor lead [B] from the clamp [C]
  Release

• Remove   the clamp [A] and left lower fairing bracket [B].
• [D] and remove
  Release  the lead [C] from the right lower fairing bracket
                  the right lower fairing bracket.

• Remove:
   Radiator Bracket Bolt [A]
   Radiator Bracket [B]

• Remove:  (Left Side)
   Upper Fairing Bracket Bolt (M6) [A]
   Upper Engine Bracket Bolts [B] and Washer
   Rear Engine Bracket Bolt [C]
   Lower Engine Bracket Bolt [D]
   Left Engine Bracket [E]
