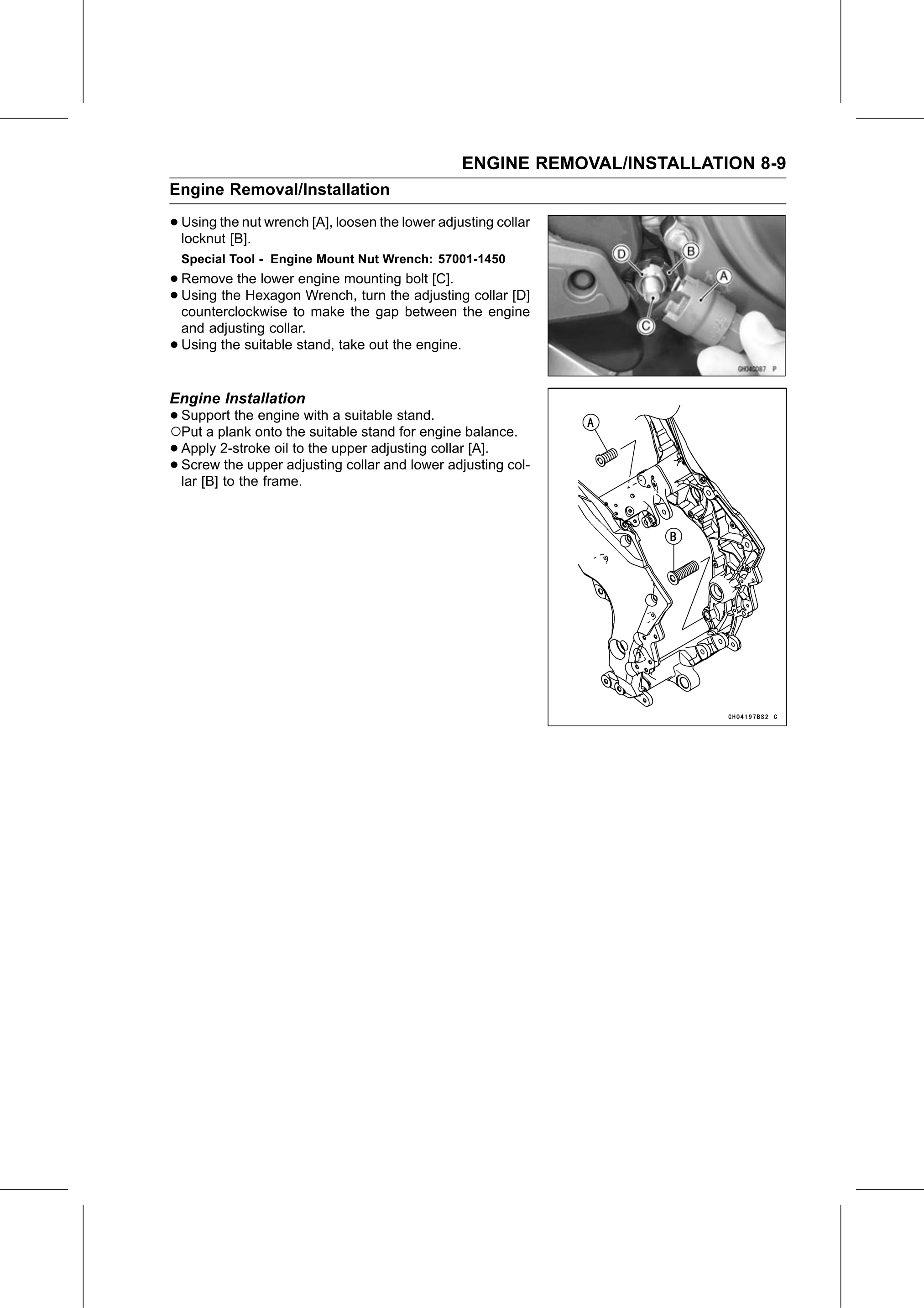

ENGINE REMOVAL/INSTALLATION 8-9
Engine Removal/Installation

• Using the nut wrench [A], loosen the lower adjusting collar
  locknut [B].
    Special Tool - Engine Mount Nut Wrench: 57001-1450
• Remove   the lower engine mounting bolt [C].
• Using the Hexagon Wrench, turn the adjusting collar [D]
  counterclockwise to make the gap between the engine
    and adjusting collar.
•   Using the suitable stand, take out the engine.

Engine Installation
•○Support      the engine with a suitable stand.
   Put a plank onto the suitable stand for engine balance.
 • Apply  2-stroke oil to the upper adjusting collar [A].
 • lar [B] tothetheupper
   Screw                 adjusting collar and lower adjusting col-
                     frame.
