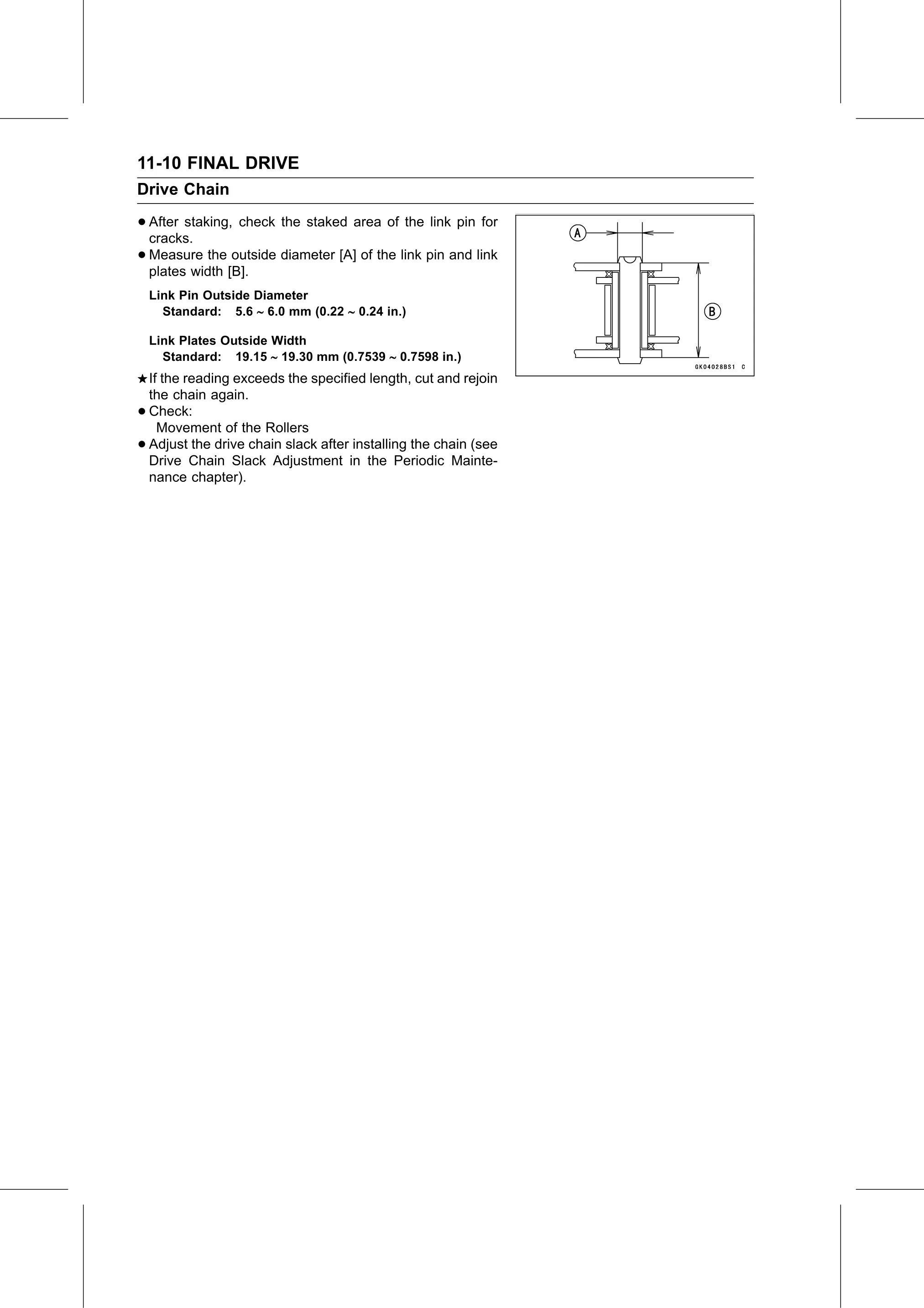

11-10 FINAL DRIVE
Drive Chain

• After staking, check the staked area of the link pin for
  cracks.
• Measure   the outside diameter [A] of the link pin and link
  plates width [B].
    Link Pin Outside Diameter
      Standard: 5.6 ∼ 6.0 mm (0.22 ∼ 0.24 in.)

    Link Plates Outside Width
      Standard: 19.15 ∼ 19.30 mm (0.7539 ∼ 0.7598 in.)
    If the reading exceeds the specified length, cut and rejoin
    the chain again.
•   Check:
      Movement of the Rollers
•   Adjust the drive chain slack after installing the chain (see
    Drive Chain Slack Adjustment in the Periodic Mainte-
    nance chapter).
