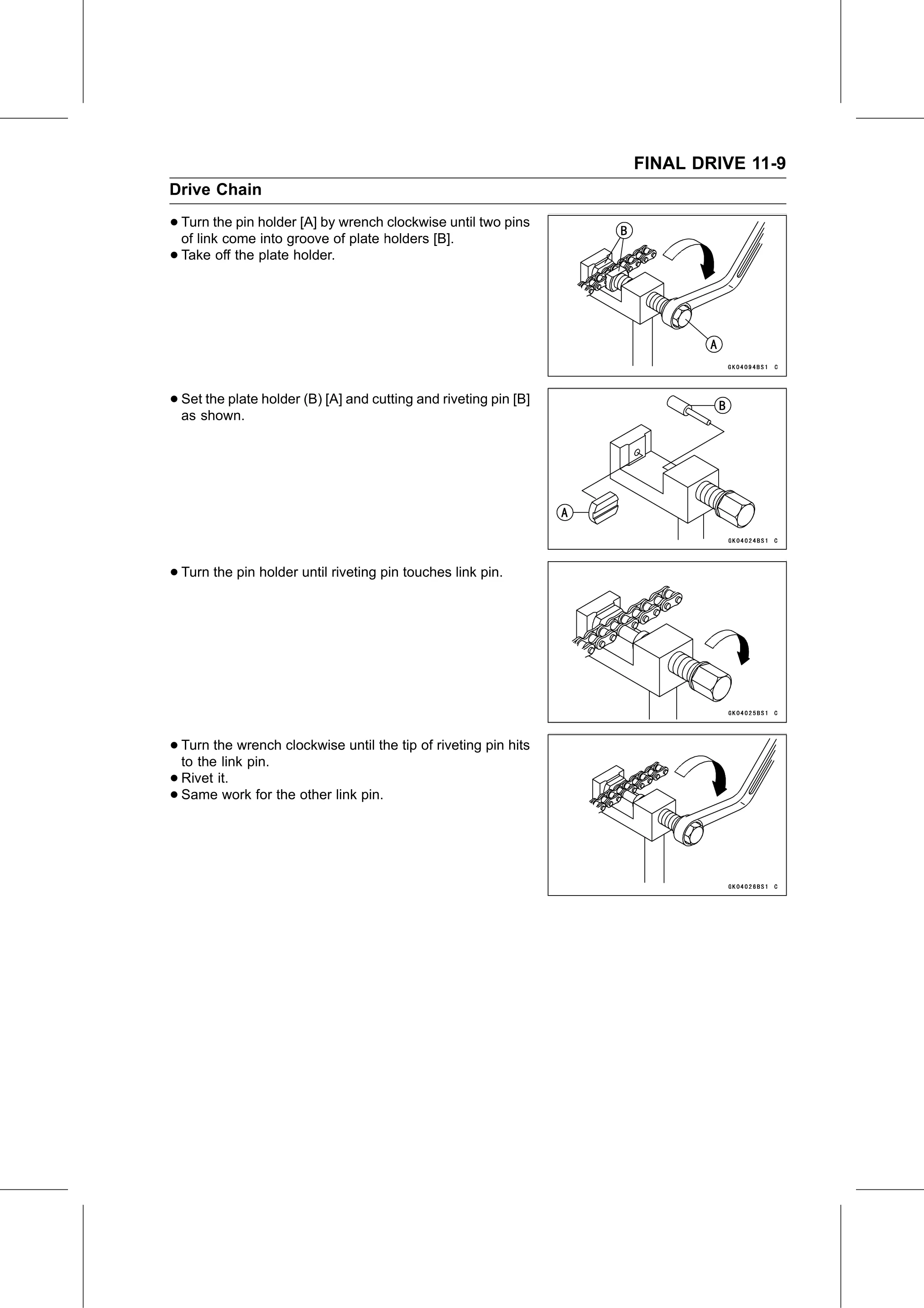

FINAL DRIVE 11-9
Drive Chain

• Turn  the pin holder [A] by wrench clockwise until two pins
  of link come into groove of plate holders [B].
• Take off the plate holder.

• Set the plate holder (B) [A] and cutting and riveting pin [B]
  as shown.

• Turn the pin holder until riveting pin touches link pin.

• Turn  the wrench clockwise until the tip of riveting pin hits
  to the link pin.
• Rivet  it.
• Same    work for the other link pin.
