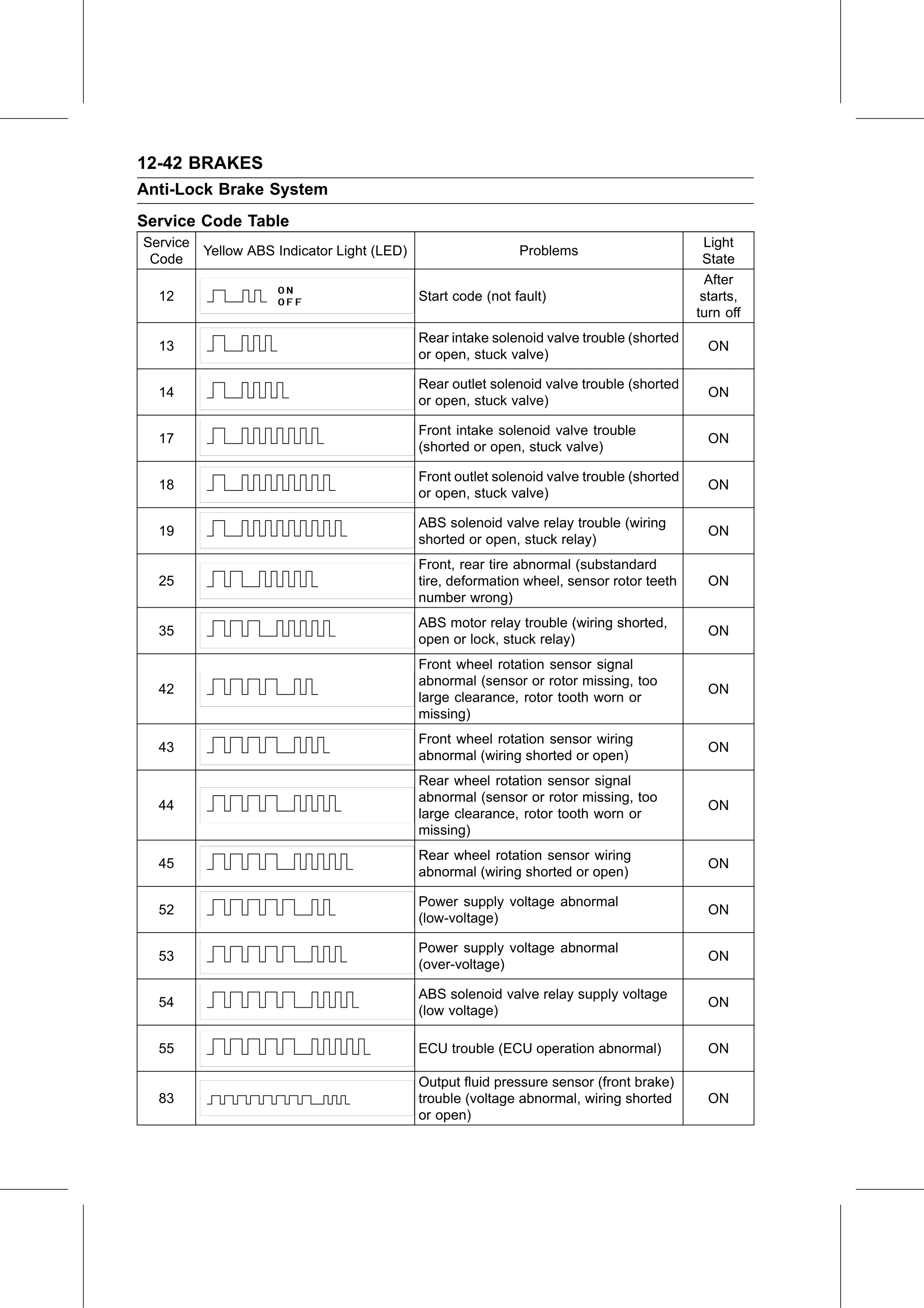

12-42 BRAKES
Anti-Lock Brake System
Service Code Table
Service                                                                                     Light
        Yellow ABS Indicator Light (LED)                    Problems
 Code                                                                                      State
                                                                                            After
  12                                       Start code (not fault)                          starts,
                                                                                          turn off
                                           Rear intake solenoid valve trouble (shorted
  13                                                                                        ON
                                           or open, stuck valve)

                                           Rear outlet solenoid valve trouble (shorted
  14                                                                                        ON
                                           or open, stuck valve)

                                           Front intake solenoid valve trouble
  17                                                                                        ON
                                           (shorted or open, stuck valve)

                                           Front outlet solenoid valve trouble (shorted
  18                                                                                        ON
                                           or open, stuck valve)

                                           ABS solenoid valve relay trouble (wiring
  19                                                                                        ON
                                           shorted or open, stuck relay)
                                           Front, rear tire abnormal (substandard
  25                                       tire, deformation wheel, sensor rotor teeth      ON
                                           number wrong)
                                           ABS motor relay trouble (wiring shorted,
  35                                                                                        ON
                                           open or lock, stuck relay)
                                           Front wheel rotation sensor signal
                                           abnormal (sensor or rotor missing, too
  42                                                                                        ON
                                           large clearance, rotor tooth worn or
                                           missing)
                                           Front wheel rotation sensor wiring
  43                                                                                        ON
                                           abnormal (wiring shorted or open)
                                           Rear wheel rotation sensor signal
                                           abnormal (sensor or rotor missing, too
  44                                                                                        ON
                                           large clearance, rotor tooth worn or
                                           missing)
                                           Rear wheel rotation sensor wiring
  45                                                                                        ON
                                           abnormal (wiring shorted or open)

                                           Power supply voltage abnormal
  52                                                                                        ON
                                           (low-voltage)

                                           Power supply voltage abnormal
  53                                                                                        ON
                                           (over-voltage)

                                           ABS solenoid valve relay supply voltage
  54                                                                                        ON
                                           (low voltage)

  55                                       ECU trouble (ECU operation abnormal)             ON

                                           Output fluid pressure sensor (front brake)
  83                                       trouble (voltage abnormal, wiring shorted        ON
                                           or open)
