13-32 SUSPENSION
Tie-Rod, Rocker Arm
Rocker Arm Installation
• Apply   grease to the inside of the oil seals.
• Replace    the rocker arm nut, tie-rod nut (upper) and rear
  shock absorber nut (lower) with new ones.
• Install
  side.
          the rocker arms so that the marked side faces left

• Tighten:
    Torque - Rocker Arm Nut: 35 N·m (3.6 kgf·m, 26 ft·lb)
             Tie-Rod Nut (Upper): 35 N·m (3.6 kgf·m, 26 ft·lb)
             Rear Shock Absorber Nut (Lower): 35 N·m (3.6
                kgf·m, 26 ft·lb)
• Install the removed parts (see appropriate chapters).

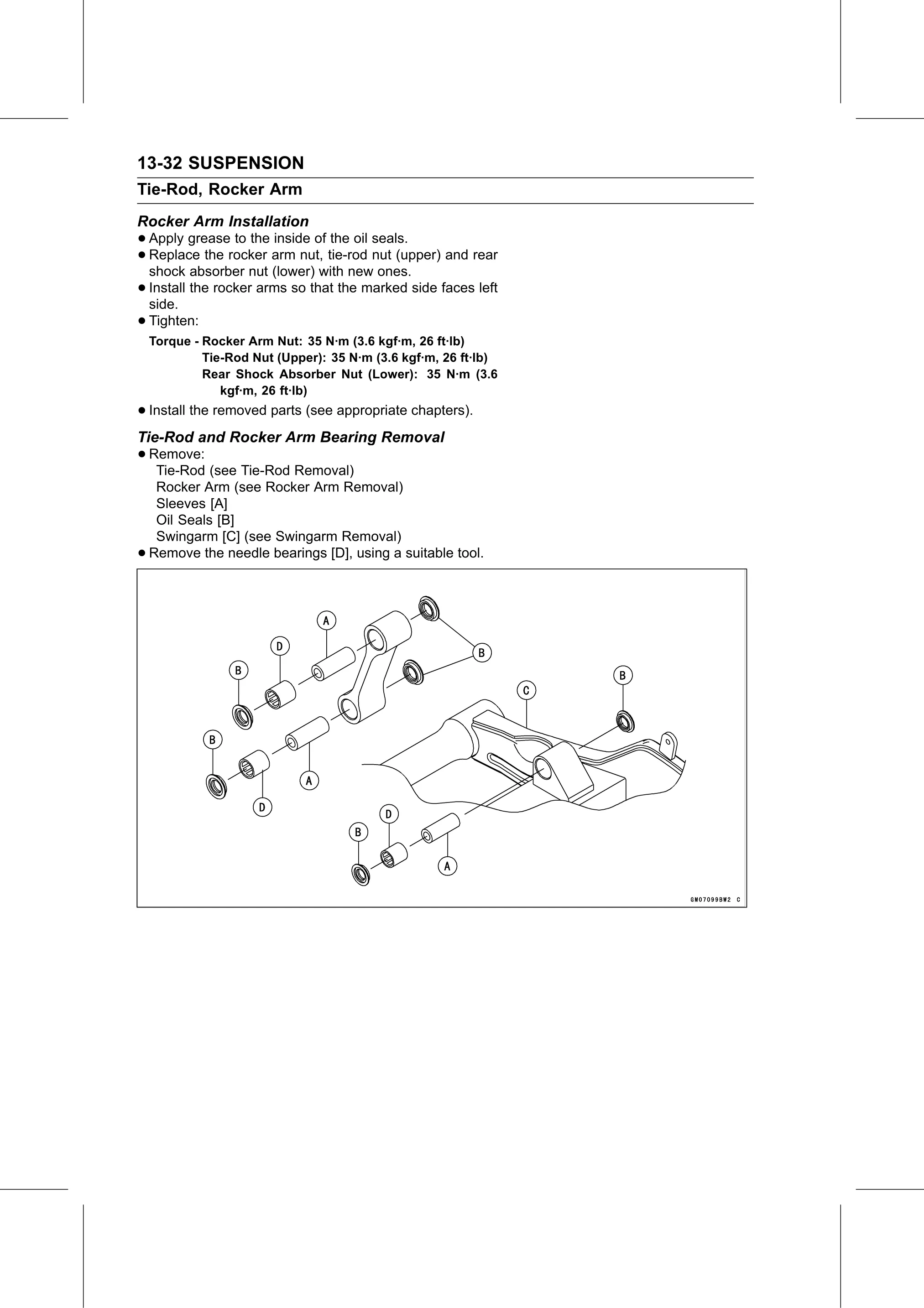

Tie-Rod and Rocker Arm Bearing Removal
• Remove:
   Tie-Rod (see Tie-Rod Removal)
     Rocker Arm (see Rocker Arm Removal)
     Sleeves [A]
     Oil Seals [B]
     Swingarm [C] (see Swingarm Removal)
•   Remove the needle bearings [D], using a suitable tool.
