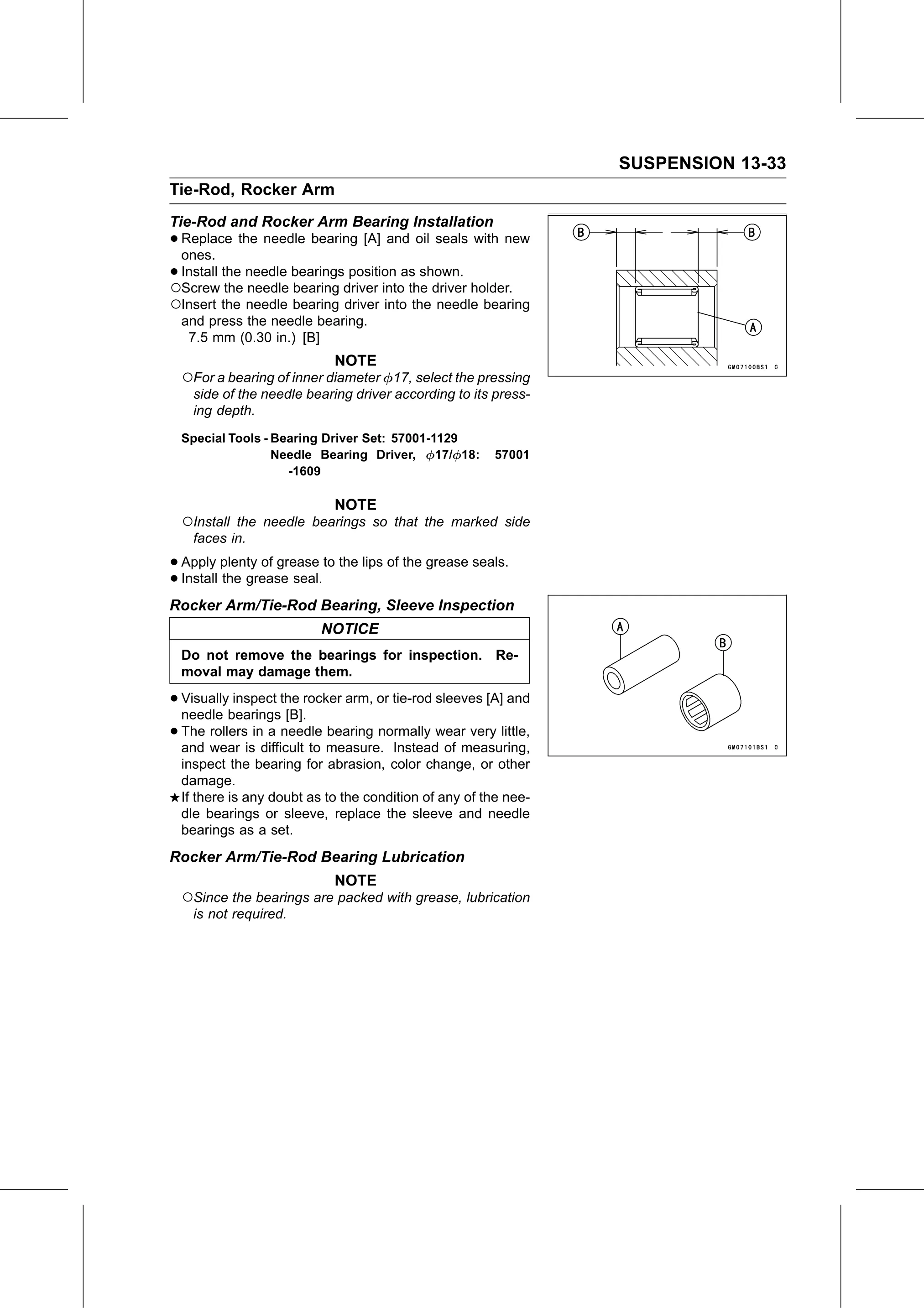

SUSPENSION 13-33
Tie-Rod, Rocker Arm
Tie-Rod and Rocker Arm Bearing Installation
• Replace
  ones.
             the needle bearing [A] and oil seals with new

•○Install the needle bearings position as shown.
  Screw the needle bearing driver into the driver holder.
○Insert the needle bearing driver into the needle bearing
  and press the needle bearing.
   7.5 mm (0.30 in.) [B]
                            NOTE
  ○For a bearing of inner diameter 17, select the pressing
    side of the needle bearing driver according to its press-
    ing depth.
  Special Tools - Bearing Driver Set: 57001-1129
                  Needle Bearing Driver,     17/ 18:    57001
                    -1609

                            NOTE
  ○Install the needle bearings so that the marked side
   faces in.

• Apply   plenty of grease to the lips of the grease seals.
• Install the grease seal.
Rocker Arm/Tie-Rod Bearing, Sleeve Inspection
                          NOTICE
  Do not remove the bearings for inspection. Re-
  moval may damage them.

• Visually inspect the rocker arm, or tie-rod sleeves [A] and
  needle bearings [B].
• The rollers in a needle bearing normally wear very little,
  and wear is difficult to measure. Instead of measuring,
  inspect the bearing for abrasion, color change, or other
  damage.
  If there is any doubt as to the condition of any of the nee-
  dle bearings or sleeve, replace the sleeve and needle
  bearings as a set.
Rocker Arm/Tie-Rod Bearing Lubrication
                            NOTE
  ○Since the bearings are packed with grease, lubrication
   is not required.
