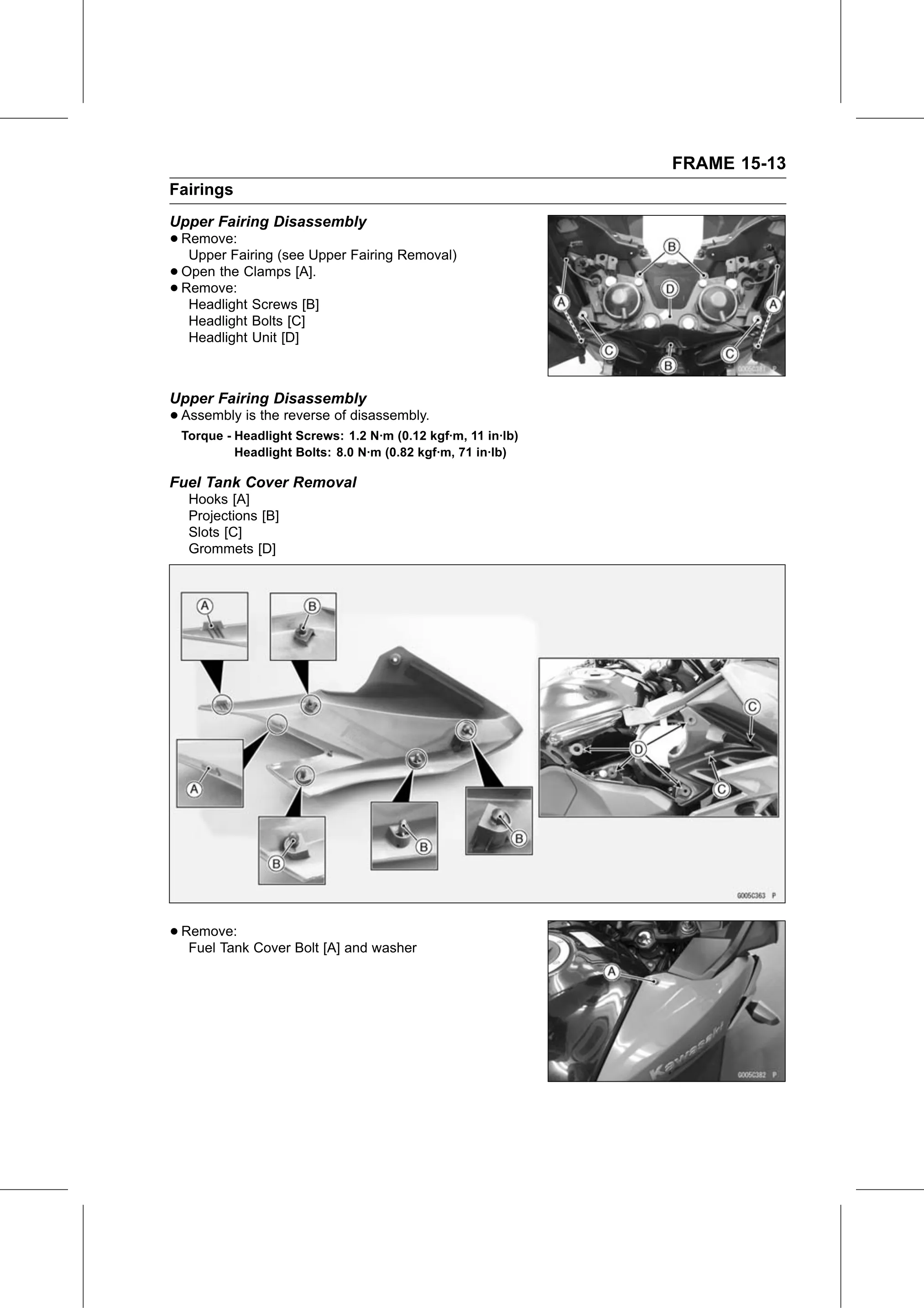

FRAME 15-13
Fairings
Upper Fairing Disassembly
• Remove:
   Upper Fairing (see Upper Fairing Removal)
• Remove:
  Open the Clamps [A].
• Headlight Screws [B]
   Headlight Bolts [C]
   Headlight Unit [D]

Upper Fairing Disassembly
• Assembly is the reverse of disassembly.
 Torque - Headlight Screws: 1.2 N·m (0.12 kgf·m, 11 in·lb)
          Headlight Bolts: 8.0 N·m (0.82 kgf·m, 71 in·lb)

Fuel Tank Cover Removal
   Hooks [A]
   Projections [B]
   Slots [C]
   Grommets [D]

• Remove:
   Fuel Tank Cover Bolt [A] and washer
