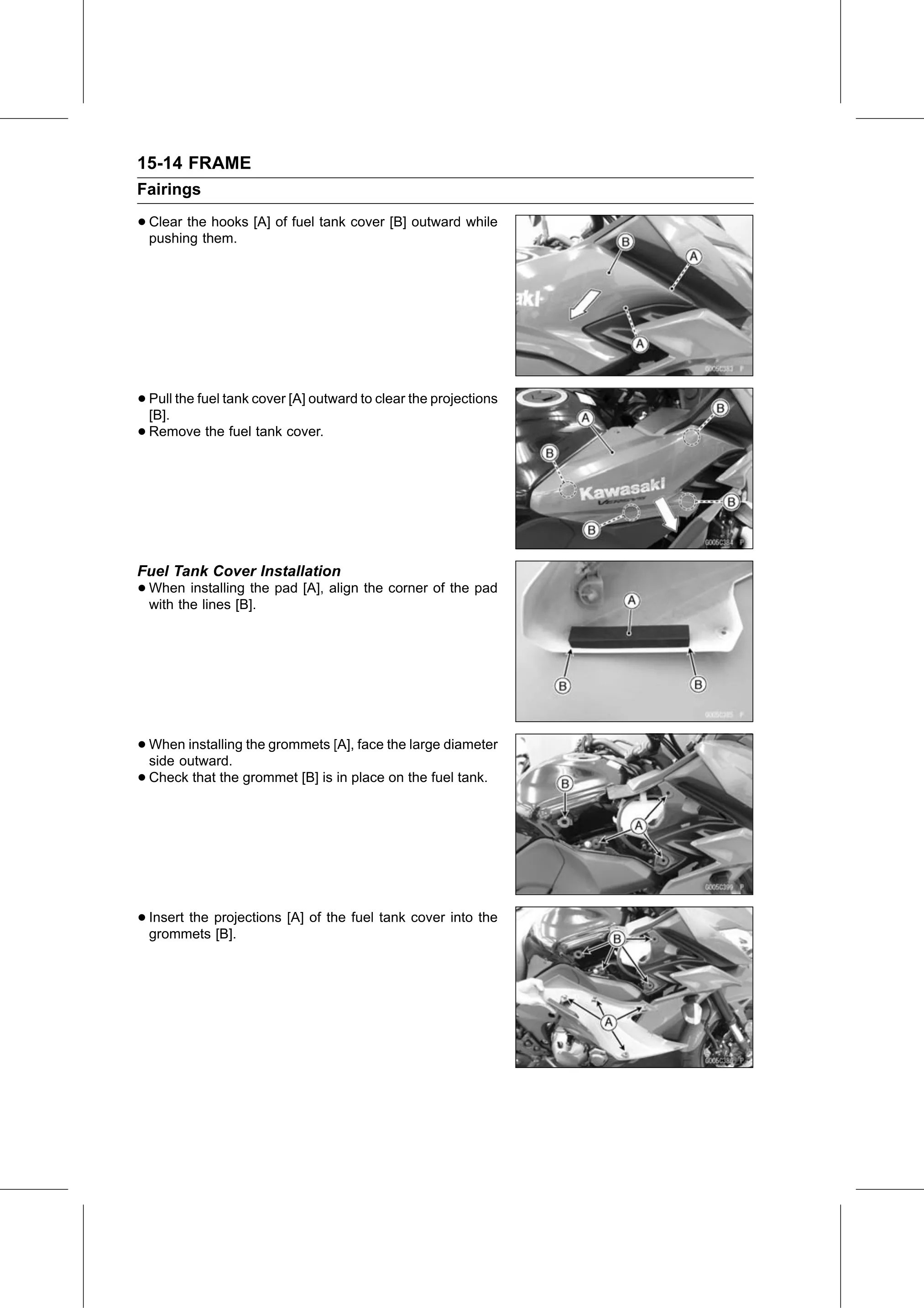

15-14 FRAME
Fairings

• Clear the hooks [A] of fuel tank cover [B] outward while
  pushing them.

• Pull
  [B].
       the fuel tank cover [A] outward to clear the projections

• Remove the fuel tank cover.

Fuel Tank Cover Installation
• When   installing the pad [A], align the corner of the pad
  with the lines [B].

• When  installing the grommets [A], face the large diameter
  side outward.
• Check that the grommet [B] is in place on the fuel tank.

• Insert the projections [A] of the fuel tank cover into the
  grommets [B].
