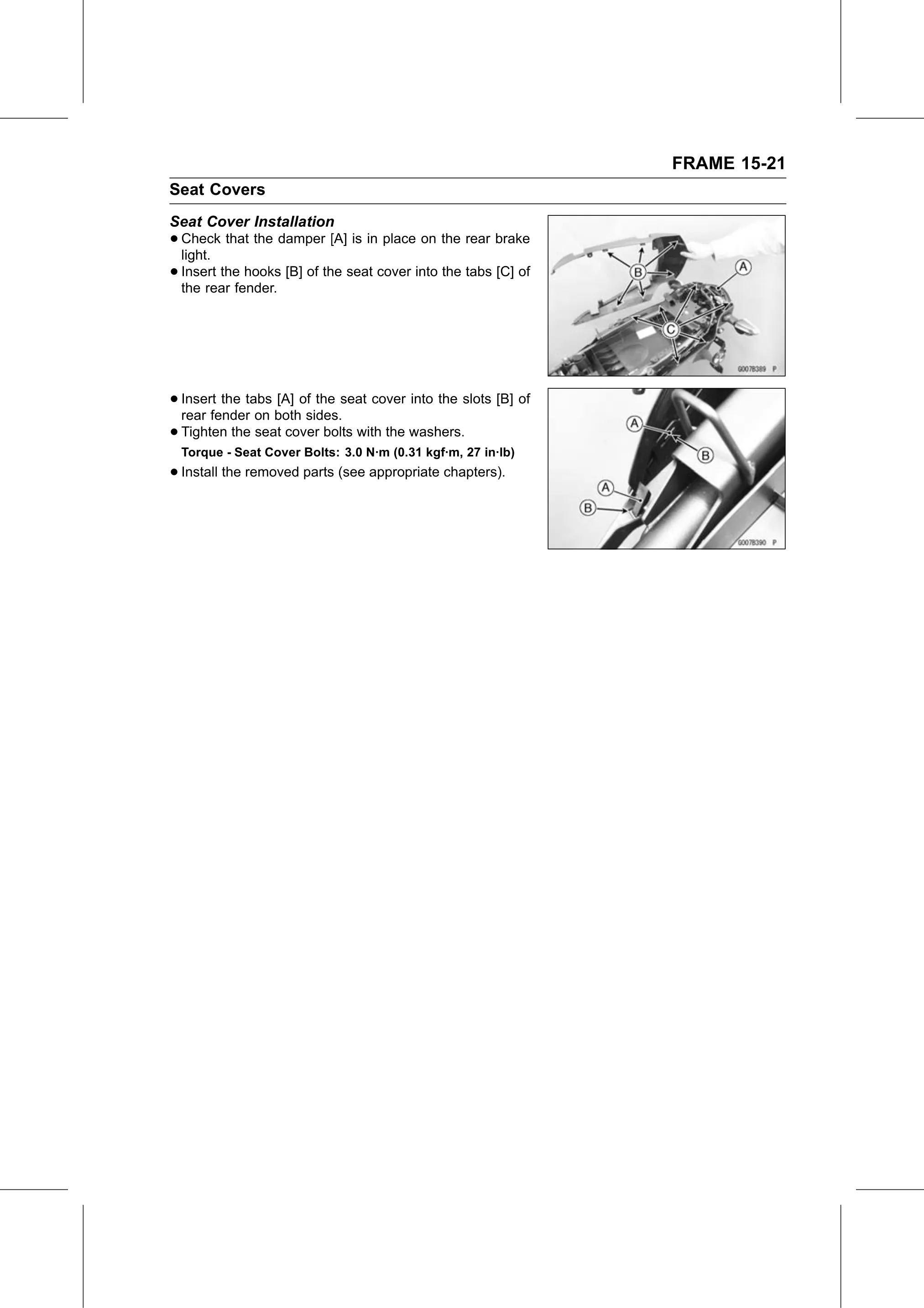

FRAME 15-21
Seat Covers
Seat Cover Installation
• Check
  light.
          that the damper [A] is in place on the rear brake

• Insert the hooks [B] of the seat cover into the tabs [C] of
  the rear fender.

• Insert the tabs [A] of the seat cover into the slots [B] of
  rear fender on both sides.
• Tighten the seat cover bolts with the washers.
  Torque - Seat Cover Bolts: 3.0 N·m (0.31 kgf·m, 27 in·lb)
• Install the removed parts (see appropriate chapters).
