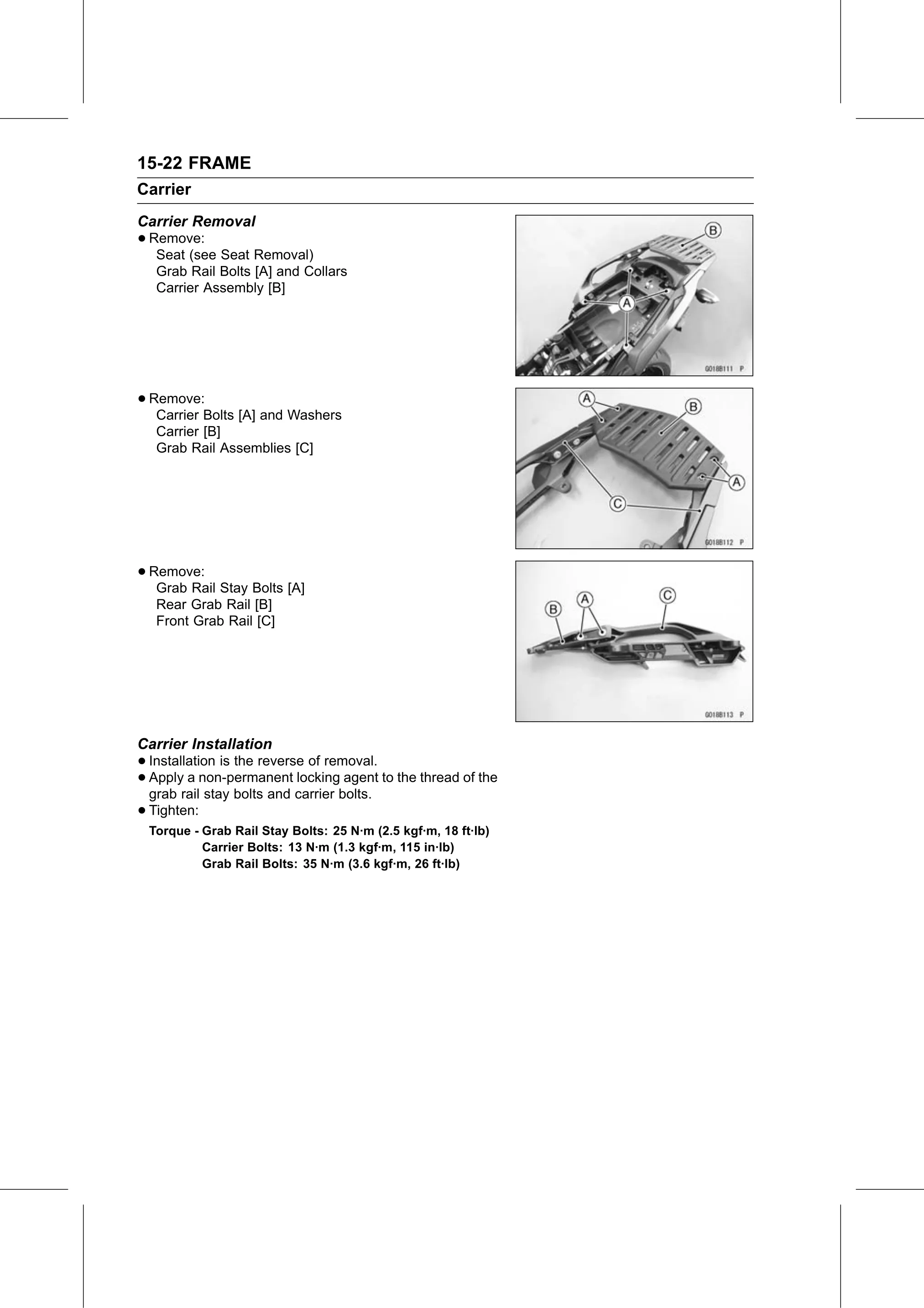

15-22 FRAME
Carrier
Carrier Removal
• Remove:
   Seat (see Seat Removal)
   Grab Rail Bolts [A] and Collars
   Carrier Assembly [B]

• Remove:
   Carrier Bolts [A] and Washers
   Carrier [B]
   Grab Rail Assemblies [C]

• Remove:
   Grab Rail Stay Bolts [A]
   Rear Grab Rail [B]
   Front Grab Rail [C]

Carrier Installation
• Installation is the reverse of removal.
• grab rail stay bolts and carrier
  Apply  a  non-permanent   locking agent to the thread of the
                                   bolts.
• Tighten:
  Torque - Grab Rail Stay Bolts: 25 N·m (2.5 kgf·m, 18 ft·lb)
           Carrier Bolts: 13 N·m (1.3 kgf·m, 115 in·lb)
           Grab Rail Bolts: 35 N·m (3.6 kgf·m, 26 ft·lb)
