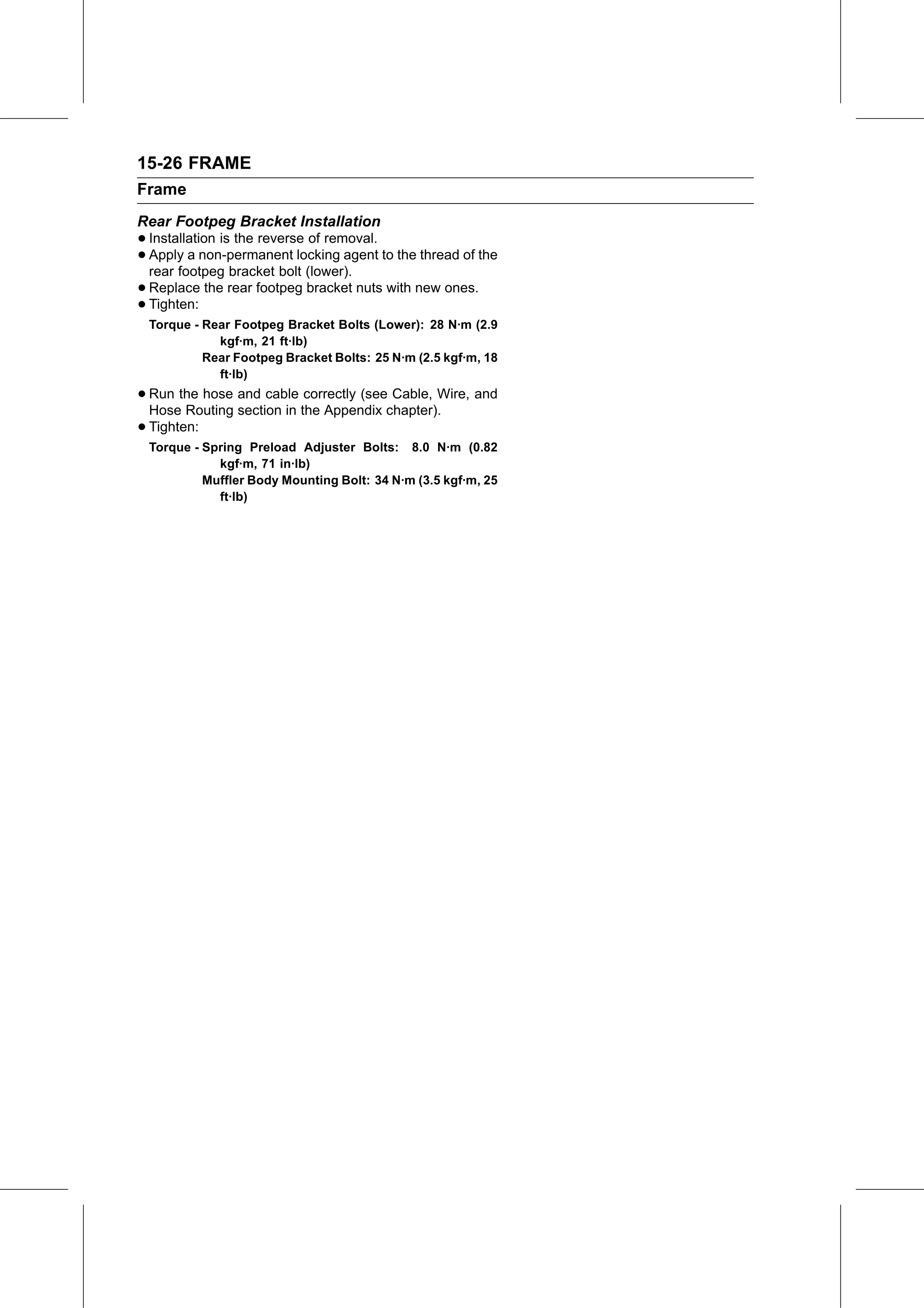

Service Manual — page 554 of 715

Frame › Rear Footpeg Bracket Installation

Text on this page

15-26 FRAME
Frame
Rear Footpeg Bracket Installation
• Installation  is the reverse of removal.
• Apply  a non-permanent locking agent to the thread of the
  rear footpeg bracket bolt (lower).
• Replace    the rear footpeg bracket nuts with new ones.
• Tighten:
 Torque - Rear Footpeg Bracket Bolts (Lower): 28 N·m (2.9
            kgf·m, 21 ft·lb)
          Rear Footpeg Bracket Bolts: 25 N·m (2.5 kgf·m, 18
            ft·lb)
• Run  the hose and cable correctly (see Cable, Wire, and
  Hose Routing section in the Appendix chapter).
• Tighten:
 Torque - Spring Preload Adjuster Bolts: 8.0 N·m (0.82
            kgf·m, 71 in·lb)
          Muffler Body Mounting Bolt: 34 N·m (3.5 kgf·m, 25
            ft·lb)
