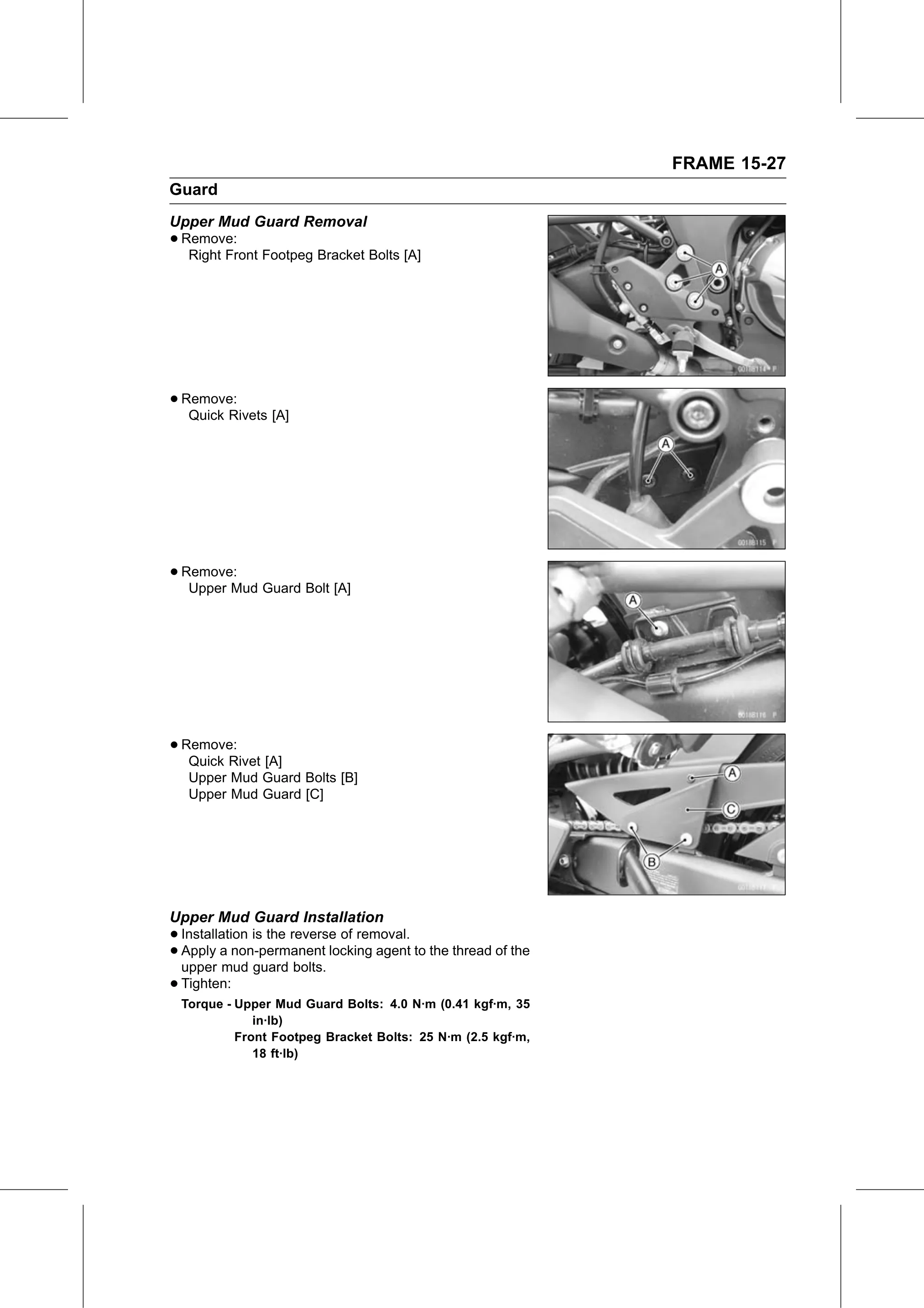

FRAME 15-27
Guard
Upper Mud Guard Removal
• Remove:
   Right Front Footpeg Bracket Bolts [A]

• Remove:
   Quick Rivets [A]

• Remove:
   Upper Mud Guard Bolt [A]

• Remove:
   Quick Rivet [A]
   Upper Mud Guard Bolts [B]
   Upper Mud Guard [C]

Upper Mud Guard Installation
• Installation is the reverse of removal.
• upper mud guard bolts. locking agent to the thread of the
  Apply  a  non-permanent

• Tighten:
 Torque - Upper Mud Guard Bolts: 4.0 N·m (0.41 kgf·m, 35
             in·lb)
          Front Footpeg Bracket Bolts: 25 N·m (2.5 kgf·m,
             18 ft·lb)
