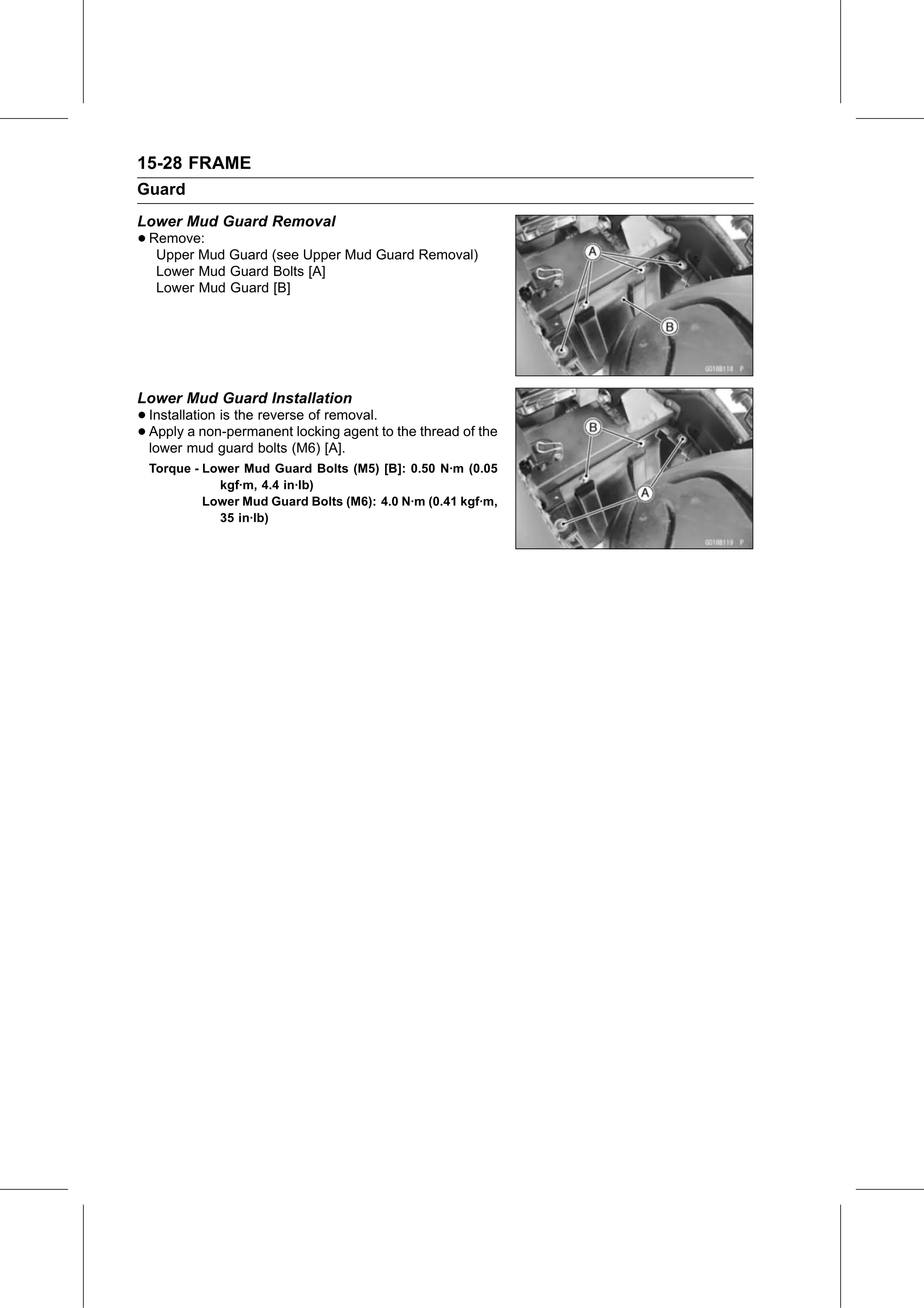

15-28 FRAME
Guard
Lower Mud Guard Removal
• Remove:
   Upper Mud Guard (see Upper Mud Guard Removal)
   Lower Mud Guard Bolts [A]
   Lower Mud Guard [B]

Lower Mud Guard Installation
• Installation is the reverse of removal.
• Apply  a non-permanent locking agent to the thread of the
  lower mud guard bolts (M6) [A].
 Torque - Lower Mud Guard Bolts (M5) [B]: 0.50 N·m (0.05
            kgf·m, 4.4 in·lb)
          Lower Mud Guard Bolts (M6): 4.0 N·m (0.41 kgf·m,
            35 in·lb)
