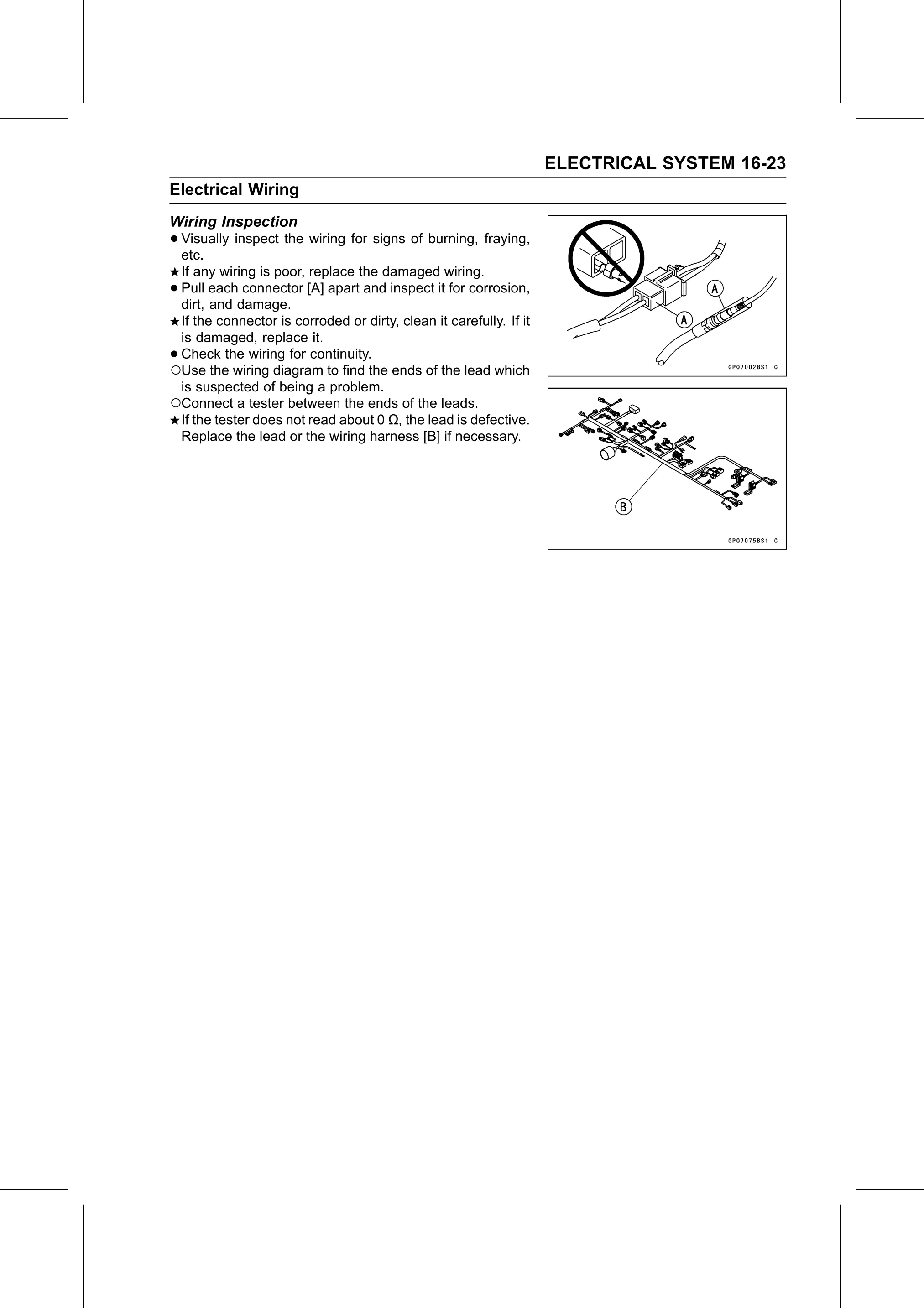

ELECTRICAL SYSTEM 16-23
Electrical Wiring
Wiring Inspection
• Visually
  etc.
           inspect the wiring for signs of burning, fraying,

 If any wiring is poor, replace the damaged wiring.
•Pull each connector [A] apart and inspect it for corrosion,
 dirt, and damage.
 If the connector is corroded or dirty, clean it carefully. If it
 is damaged, replace it.
•Check the wiring for continuity.
○Use the wiring diagram to find the ends of the lead which
 is suspected of being a problem.
○Connect a tester between the ends of the leads.
 If the tester does not read about 0 Ω, the lead is defective.
 Replace the lead or the wiring harness [B] if necessary.
