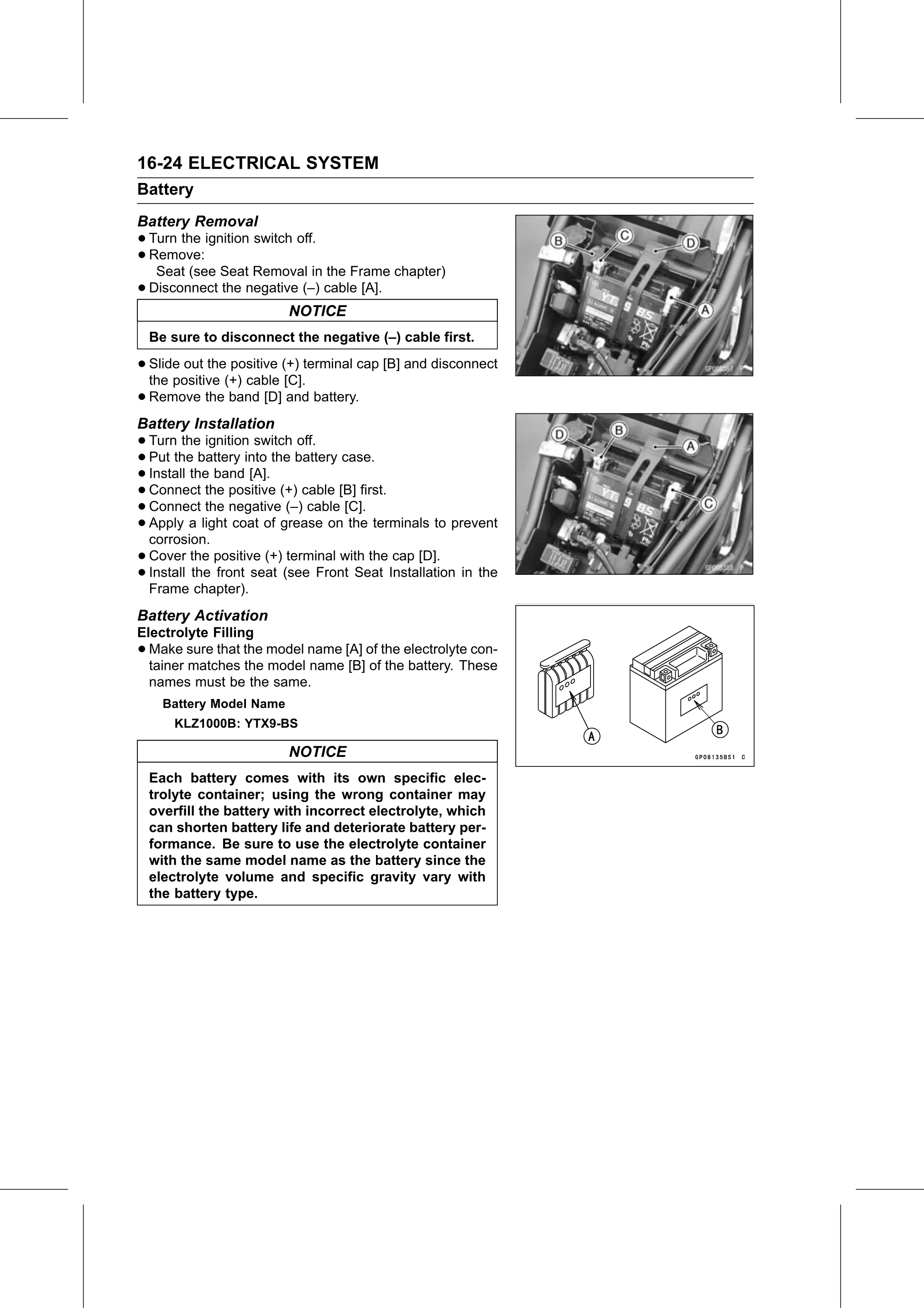

16-24 ELECTRICAL SYSTEM
Battery
Battery Removal
• Turn the ignition switch off.
• Remove:
   Seat (see Seat Removal in the Frame chapter)
• Disconnect  the negative (–) cable [A].
                           NOTICE
    Be sure to disconnect the negative (–) cable first.

• Slide out the positive (+) terminal cap [B] and disconnect
  the positive (+) cable [C].
• Remove the band [D] and battery.
Battery Installation
• Turn  the ignition switch off.
• Put the battery into the battery case.
• Connectthetheband
  Install            [A].
• Connect the negative(+)(–)cable
                 positive           [B] first.
• Apply a light coat of grease on [C].
                              cable
• corrosion.                          the terminals to prevent

• Cover   the positive (+) terminal with the cap [D].
• Frame the
  Install      front seat (see Front Seat Installation in the
           chapter).
Battery Activation
Electrolyte Filling
• Make sure that the model name [A] of the electrolyte con-
  tainer matches the model name [B] of the battery. These
  names must be the same.
      Battery Model Name
        KLZ1000B: YTX9-BS

                           NOTICE
    Each battery comes with its own specific elec-
    trolyte container; using the wrong container may
    overfill the battery with incorrect electrolyte, which
    can shorten battery life and deteriorate battery per-
    formance. Be sure to use the electrolyte container
    with the same model name as the battery since the
    electrolyte volume and specific gravity vary with
    the battery type.
