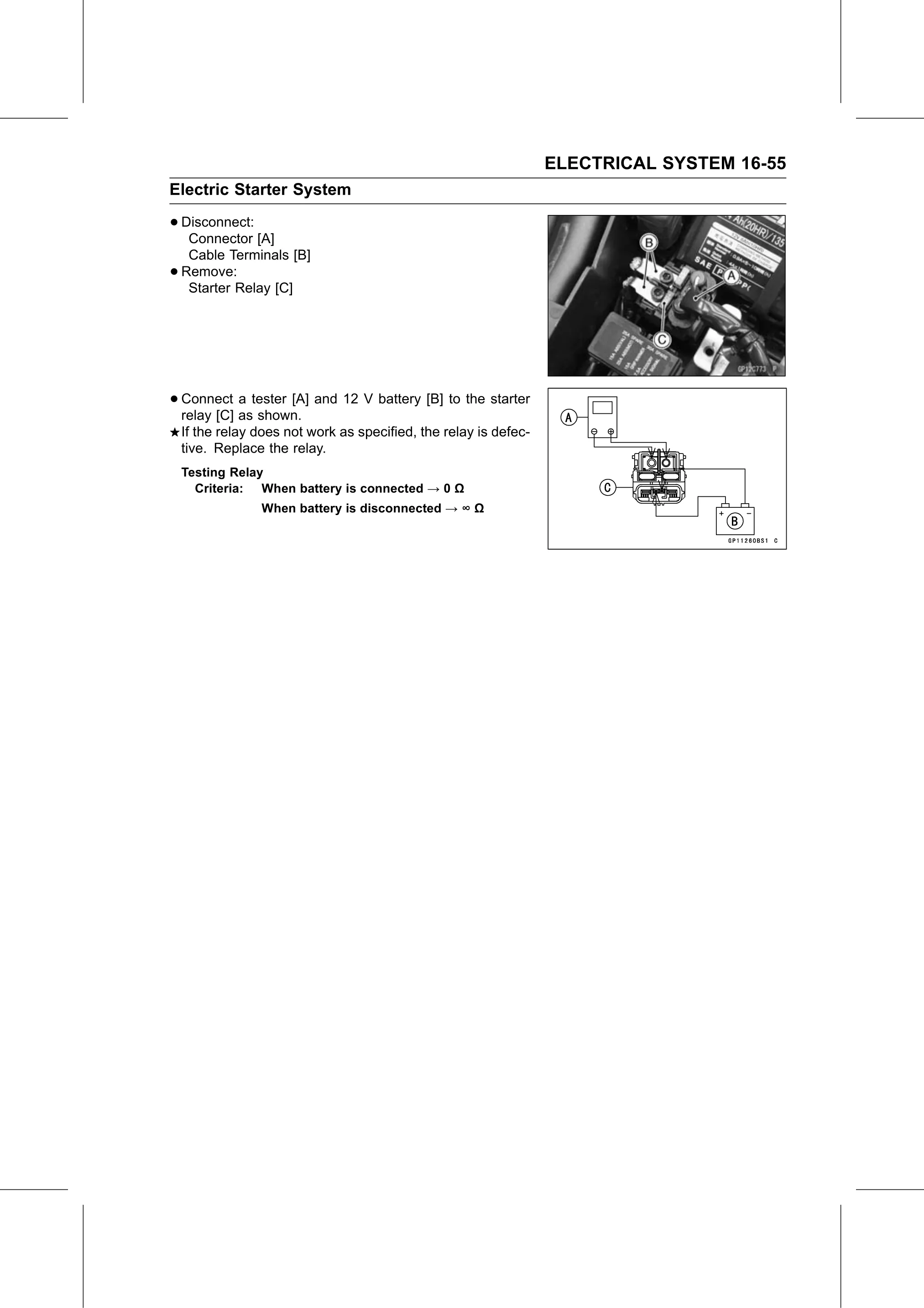

ELECTRICAL SYSTEM 16-55
Electric Starter System

• Disconnect:
   Connector [A]
     Cable Terminals [B]
•   Remove:
     Starter Relay [C]

• Connect   a tester [A] and 12 V battery [B] to the starter
  relay [C] as shown.
    If the relay does not work as specified, the relay is defec-
    tive. Replace the relay.
    Testing Relay
      Criteria: When battery is connected → 0 Ω
                 When battery is disconnected → ∞ Ω
