16-56 ELECTRICAL SYSTEM
Electric Starter System

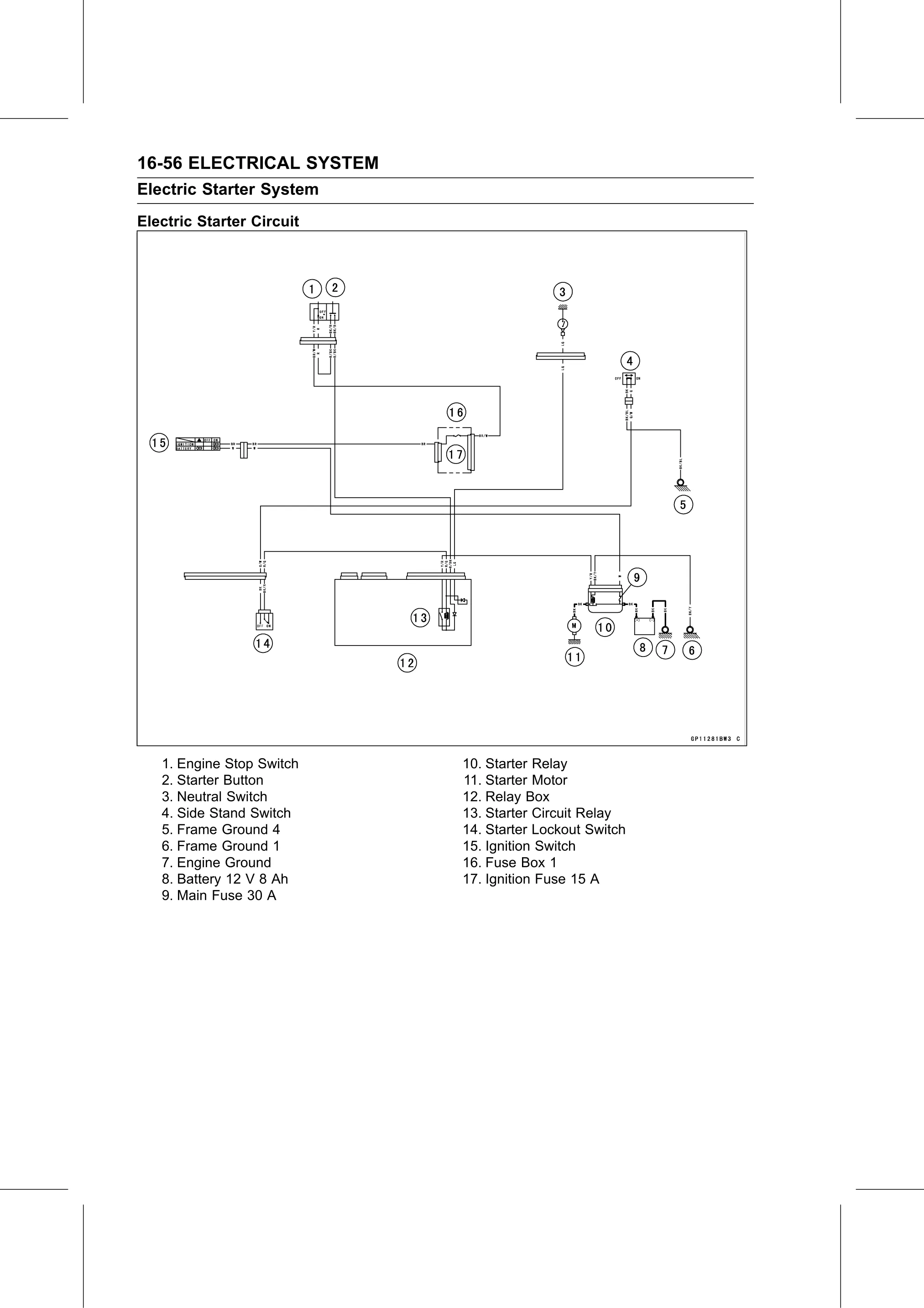

Electric Starter Circuit

   1. Engine Stop Switch   10. Starter Relay
   2. Starter Button       11. Starter Motor
   3. Neutral Switch       12. Relay Box
   4. Side Stand Switch    13. Starter Circuit Relay
   5. Frame Ground 4       14. Starter Lockout Switch
   6. Frame Ground 1       15. Ignition Switch
   7. Engine Ground        16. Fuse Box 1
   8. Battery 12 V 8 Ah    17. Ignition Fuse 15 A
   9. Main Fuse 30 A
